Differential Magnetoresistive Sensor CY-DMR-02H-A, Power Supply: 5V, Output: Single output,Alternative for: FP212L100-22 (Siemens/Infineon)

Differential Magnetoresistive Sensor CY-DMR-02H-A, Power Supply: 5V, Output: Single output,Alternative for: FP212L100-22 (Siemens/Infineon)
Quantity Unit price
until 4 € 41.57 *
from 5 € 40.47 *
from 10 € 39.38 *
from 20 € 38.28 *
from 50 € 37.19 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

The differential magnetoresistive sensor CY-DMR-02H consists of two series coupled magneto... more
Product information "Differential Magnetoresistive Sensor CY-DMR-02H-A, Power Supply: 5V, Output: Single output,Alternative for: FP212L100-22 (Siemens/Infineon)"

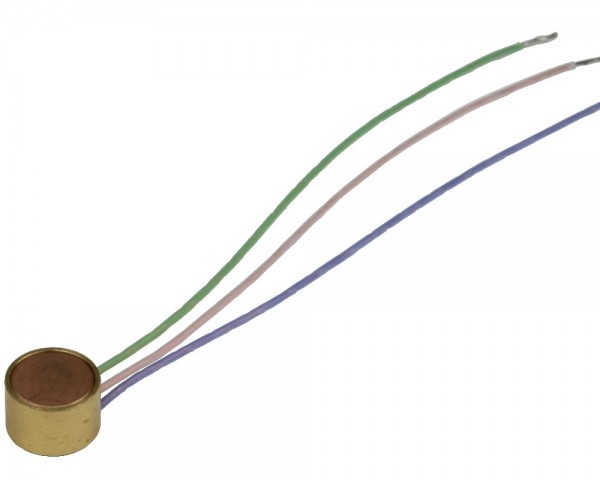

The differential magnetoresistive sensor CY-DMR-02H consists of two series coupled magneto resistors (D-type InSb/NiSb semiconductor resistors whose value can be magnetically controlled), which are mounted onto an insulated ferrite substrate. The sensor is encapsulated in a metallic or plastic package and has 3 connection terminals. The basic resistance of the total system is 2x220Ω. A permanent magnet, which supplies a biasing magnetic field, is fixed on the base of the sensor.

Characteristics

  •  Sensing over wide rotation speed range
  • Robust metallic or plastic housing
  • Signal amplitude is speed independent
  • Biasing magnet built in
  • Best suited for harsh environments

Typical applications

  • Speed detection
  • Position detection
  • Rotation detection
  • Angle encoder
  • Linear position sensing

Technical Properties

Output Signal: ≥1000mV
Total Resistance: 220 Ω – 660 Ω
Cut-off Frequency: >20kHz
Cross Reference: FP212L100-22
Operating Temperature: -30°C ~ +100°C
Power Supply: 5V
