Hall-effect element CYTY101A is made of compound semiconductor material indium stibnite (InSb),... more
Product information "InSb Hall Effect Elements CYTY101A, Max. Sensitivity: 9.12 - 14.8 (mV/mT)"

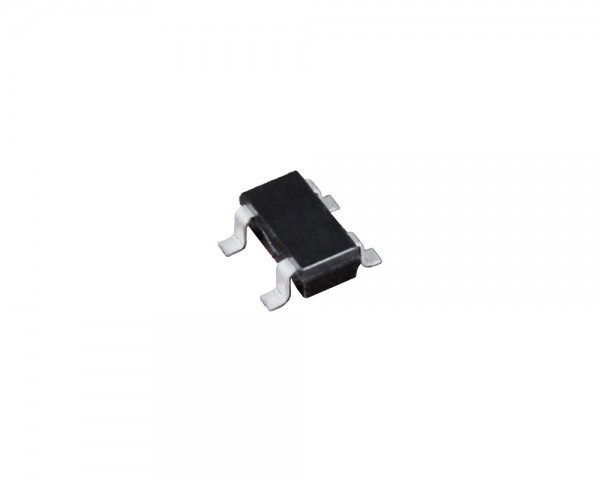

Hall-effect element CYTY101A is made of compound semiconductor material indium stibnite (InSb), which utilizes the Hall-effect principle. It can convert a magnetic flux density signal linearly into voltage output.

Characteristics

  • High Magnetic Sensitivity
  • Low Offset Voltage
  • Miniature Package

Application

  • Magnetic Field Measurement
  • Current Sensor
  • Detection of Speed
  • DC Brushless Motor
  • Position Control

Technical Properties

Operating Temperature: -40°C ~ +110°C
Max. Supply: 20mA
Input/Output Resistance: 240 ~ 550kΩ/240 ~ 550kΩ
Max. Sensitivity: 9.12 ~ 14.8 mV/mT
Package/Size: SMT/2.9x1.55x1.1mm
