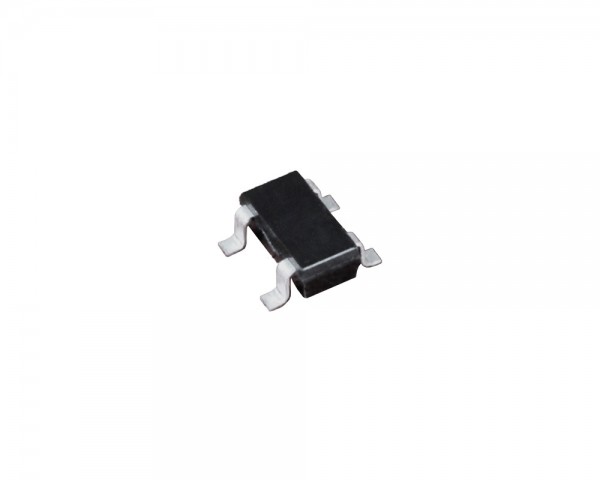

InSb Hall Effect Elements CYTY108A, Max. Sensitivity: 7.84 - 12.8 (mV/mT)

InSb Hall Effect Elements CYTY108A, Max. Sensitivity: 7.84 - 12.8 (mV/mT)
Quantity Unit price
until 9 € 0.55 *
from 10 € 0.45 *
from 20 € 0.38 *
from 50 € 0.31 *
from 100 € 0.26 *
from 200 € 0.21 *
from 500 € 0.18 *
from 1000 € 0.14 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

Description Technical Properties Data Sheets
Description
Hall-effect element CYTY108A is made of compound semiconductor material indium stibnite (InSb),... more
Close menu
InSb Hall Effect Elements CYTY108A, Max. Sensitivity: 7.84 - 12.8 (mV/mT)

Hall-effect element CYTY108A is made of compound semiconductor material indium stibnite (InSb), which utilizes the Hall-effect principle. It can convert a magnetic flux density signal linearly into voltage output.

Characteristics

  • High Magnetic Sensitivity
  • Low Offset Voltage
  • Miniature Package

Application

  • Magnetic Field Measurement
  • Current Sensor
  • Detection of Speed
  • DC Brushless Motor
  • Position Control
Technical Properties
more
Close menu
Package/Size: SMT/2.1x1.25x0.8mm
Input/Output Resistance: 240 ~ 550kΩ/240 ~ 550kΩ
Max. Supply current/voltage: 20 mA
Operating Temperature: -40°C ~ +110°C
Max. Sensitivity: 7.84 ~ 12.8 mV/mT
Data Sheets
more
Close menu
Data sheets to download:
