InSb Hall Effect Elements CYTY300B, Max. Sensitivity: 7.8 - 12.8 (mV/mT)

InSb Hall Effect Elements CYTY300B, Max. Sensitivity: 7.8 - 12.8 (mV/mT)
Quantity Unit price
until 5 € 1.67 *
from 6 € 1.39 *
from 11 € 1.17 *
from 21 € 0.96 *
from 51 € 0.81 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

Hall-effect element CYTY300B is made of compound semiconductor material indium stibnite (InSb),... more
Product information "InSb Hall Effect Elements CYTY300B, Max. Sensitivity: 7.8 - 12.8 (mV/mT)"

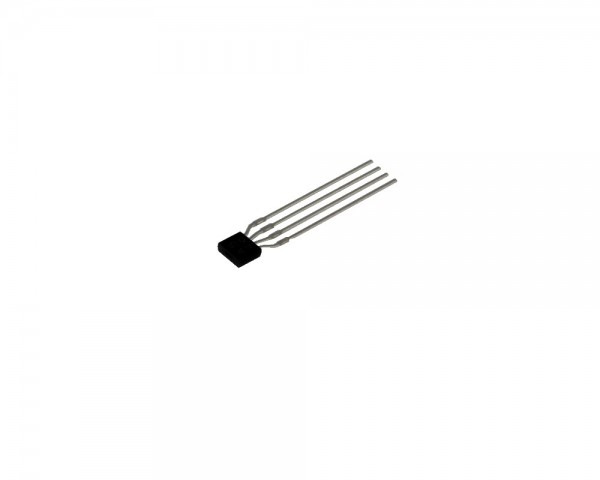

Hall-effect element CYTY300B is made of compound semiconductor material indium stibnite (InSb), which utilizes the Hall-effect principle. It can convert a magnetic flux density signal linearly into voltage output.

Characteristics

  • High Magnetic Sensitivity
  • Low Offset Voltage
  • Miniature Package

Application

  • Magnetic Field Measurement
  • Current Sensor
  • Detection of Speed
  • DC Brushless Motor
  • Position Control

Technical Properties

Operating Temperature: -40°C ~ +110°C
Max. Supply: 20mA
Input/Output Resistance: 240 ~ 550kΩ/240 ~ 550kΩ
Max. Sensitivity: 7.8 ~ 12.8 mV/mT
Package/Size: SIP/2.7x2.9x1.65mm
