InSb Hall Effect Elements CYTY322B, Max. Sensitivity: 9.12 - 14.8 (mV/mT)

InSb Hall Effect Elements CYTY322B, Max. Sensitivity: 9.12 - 14.8 (mV/mT)
Quantity Unit price
until 5 € 4.34 *
from 6 € 3.62 *
from 11 € 3.02 *
from 21 € 2.51 *
from 51 € 2.09 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Hall-effect element CYTY322B is made of compound semiconductor material indium stibnite (InSb),... more
Product information "InSb Hall Effect Elements CYTY322B, Max. Sensitivity: 9.12 - 14.8 (mV/mT)"

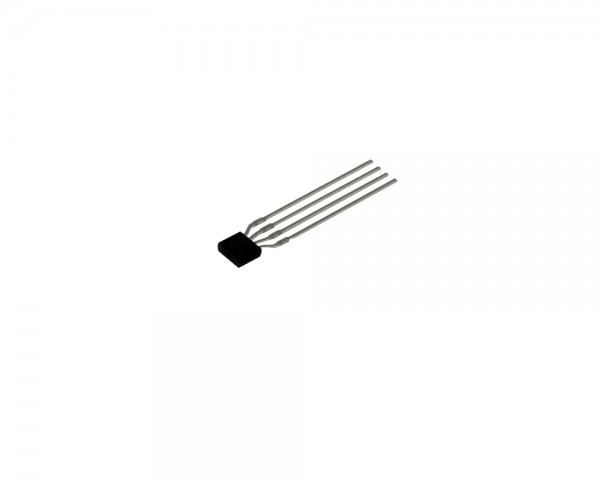

Hall-effect element CYTY322B is made of compound semiconductor material indium stibnite (InSb), which utilizes the Hall-effect principle. It can convert a magnetic flux density signal linearly into voltage output.

Characteristics

  • High Magnetic Sensitivity
  • Low Offset Voltage
  • Miniature Package

Application

  • Magnetic Field Measurement
  • Current Sensor
  • Detection of Speed
  • DC Brushless Motor
  • Position Control

Technical Properties

Operating Temperature: -40°C ~ +110°C
Max. Supply: 20mA
Input/Output Resistance: 240 ~ 550kΩ/240 ~ 550kΩ
Max. Sensitivity: 9.12 ~ 14.8 mV/mT
Package/Size: SIP/2.7x2.35x0.95mm
