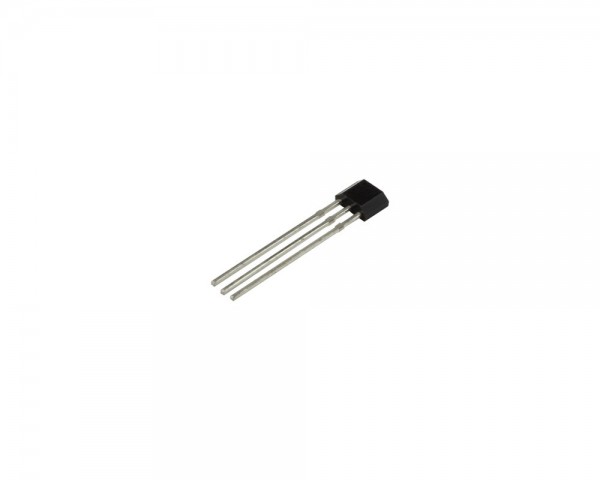

Linear Hall Effect Sensors Ics CYL3503, Max. Sensitivity: 7.5-25 (mV/mT) , Measuring range: 80mT

CYL3503 linear Hall-effect integrated circuit includes a voltage regulator, Hall-voltage generator, linear amplifier, and emitter-follower output stage. The output of the ICs changes linearly with the magnetic flux density of the input.

Characteristics

  • Small Size
  • High Accuracy
  • High Sensitivity
  • Excellent Reliability
  • High Linearity

Applications

  • Motion Detector
  • Gear Tooth Sensors
  • Proximity Detector
  • Current Detecting Sensor
  • Velocity Detecting of Motor Bicycle
Technical Properties
more
Close menu
Operating Temperature: -20°C ~ +85°C
Quiescent Output voltage: 2.25 V ~ 2.75 V
Measuring range: 80mT
Package/Size: TO92/4.06x3.1x1.5mm
Max. Sensitivity: 7.50 ~ 25 mV/mT
Max. Supply current/voltage: 14 mA/8 V
Data Sheets
more
Close menu
Data sheets to download:
