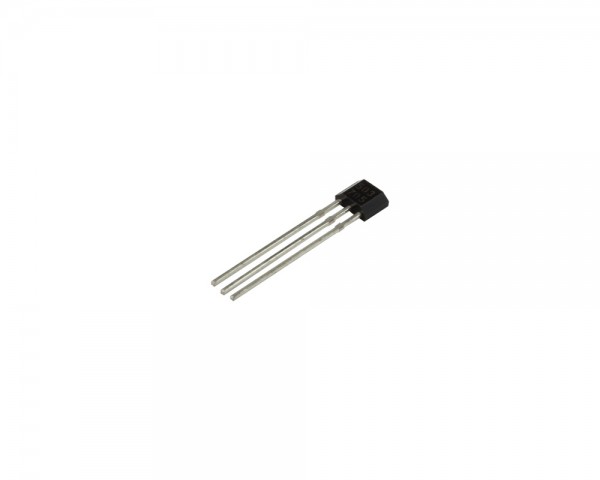

Linear Hall Effect Sensors Ics CYL8402, Max. Sensitivity: 24.5-25.5 (mV/mT) , Measuring range: 64mT

Linear Hall Effect Sensors Ics CYL8402, Max. Sensitivity: 24.5-25.5 (mV/mT) , Measuring range: 64mT
Quantity Unit price
until 5 € 1.71 *
from 6 € 1.43 *
from 11 € 1.19 *
from 21 € 0.99 *
from 51 € 0.82 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

The CYL840X Series are high performance small versatile linear Hall Effect devices which are... more
Product information "Linear Hall Effect Sensors Ics CYL8402, Max. Sensitivity: 24.5-25.5 (mV/mT) , Measuring range: 64mT"

The CYL840X Series are high performance small versatile linear Hall Effect devices which are operated by the magnetic field from a permanent magnet or an electromagnet. The ratio metric output voltage is set by the supply voltage and varies in proportion to the strength of the magnetic field. The CYL840X family has a quiescent output voltage that is 50% of the supply voltage and output sensitivity options of 2.5mV/G, 3.125mV/G and 5mV/G. The integrated circuitry provides increased temperature stability and sensitivity. The CYL840X provides high accuracy and temperature compensation. These linear position sensors have an operating temperature range of -40°C to +150°C, appropriate for industrial and automotive environments. They respond to either positive or negative magnetic field, monitoring either or both magnetic poles.

 Characteristics

  • 3.5 to 30 V operation
  • Single current sourcing or current sinking output
  • Precise sensitivity and temperature compensation
  • Power consumption of 4.5mA at 5 VDC for energy efficiency
  • Output voltage proportional to magnetic flux density
  • Temperature range of -40°C to 150°C
  • Ratiometric rail-to-rail output
  • Robust EMC protection
  • 3 pin in-line PCB terminals

Applications

  •  Current sensing
  • Position sensing
  • Magnetic code reading
  • Motor control
  • Weight and liquid level sensing
  • Motion detection
  • Proximity detection
  • Speed detection

Technical Properties

Max. Sensitivity: 24.5 ~ 25.5 mV/mT
Max. Supply: 10mA/35V
Package/Size: TO-92UA/4.06x3.1x1.5mm
Measuring range: 64mT
Operating Temperature: -40°C ~ +125°C
Quiescent Output voltage: 2.45V ~ 2.55V
Linearity: 1%
