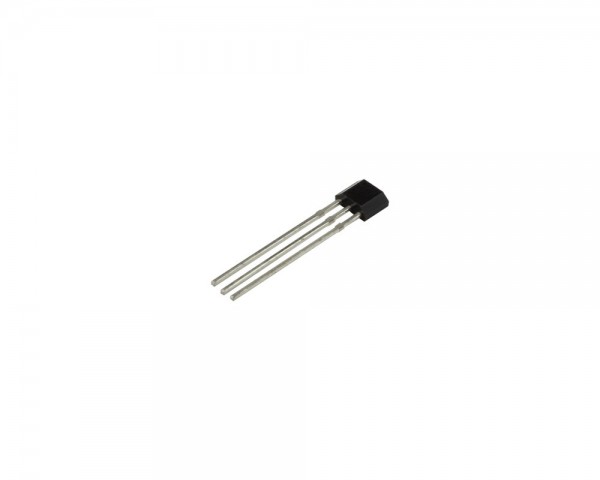

Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT

Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT
Quantity Unit price
until 5 € 0.77 *
from 6 € 0.64 *
from 11 € 0.54 *
from 21 € 0.45 *
from 51 € 0.37 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

The CYLF50 Hall-effect sensors accurately track extremely small changes in magnetic flux... more
Product information "Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT"

The CYLF50 Hall-effect sensors accurately track extremely small changes in magnetic flux density-changes generally too small to operate Hall-effect switches.

As motion detectors, gear tooth sensors, and proximity detectors, they are magnetically driven mirrors of mechanical events. As sensitive monitors of electromagnets, they can effectively measure a system’s performance with negligible system loading while providing isolation from contaminated and electrically noisy environments.

Each Hall-effect integrated circuit includes a Hall sensing element, linear amplifier, and emitter-follower output stage. Problems associated with handling tiny analog signals are minimized by having the Hall cell and amplifier on a single chip.

Characteristics

  • Very high sensitive
  • Flat response to 23 kHz
  • Lower low-noise output
  •  2.7V to 7V power supply
  • Package : SIP-3L

Technical Properties

Max. Supply: 10mA/7V
Linearity: 0.7 %
Max. Sensitivity: 10 ~ 14 mV/mT
Package/Size: SIP-3L/4.1x3.05x1.50mm
Quiescent Output voltage: 2.35V ~ 2.65V
Measuring range: 100mT
Operating Temperature: -20°C ~ +85°C
