GaAs Hall Effect Elements CYSJ902, Max. Sensitivity: 1.44 ~ 2.16 (mV/mT), Measuring range: 2T

GaAs Hall Effect Elements CYSJ902, Max. Sensitivity: 1.44 ~ 2.16 (mV/mT), Measuring range: 2T
from € 1.02 *

Prices incl. VAT excl. Shipping Costs

Operating Temperature:

CYSJ902 series Hall-effect element is a ion-implanted magnetic field sensor made of monocrystal... more
GaAs Hall Effect Elements CYSJ902, Max. Sensitivity: 1.44 ~ 2.16 (mV/mT), Measuring range: 2T

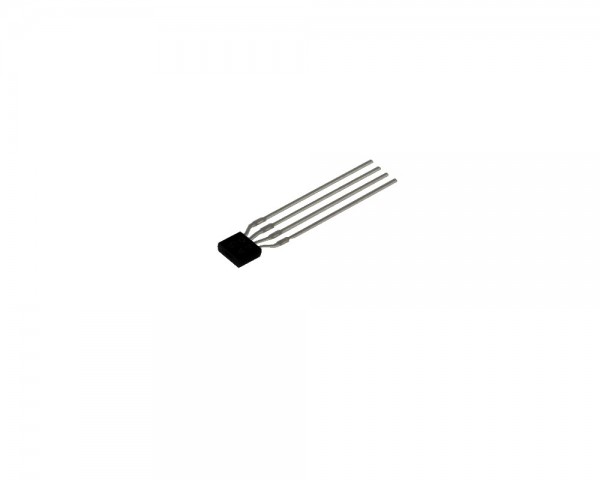

CYSJ902 series Hall-effect element is a ion-implanted magnetic field sensor made of monocrystal gallium arsenide (GaAs) semiconductor material group III-V using ion-implanted technology. It can convert a magnetic flux density signal linearly into voltage output.

FEATURES

  • High Linearity
  • Superior Temperature Stability
  • Miniature Package
  • Replacements of THS119, KSY14 and KSY44 etc.

TYPICAL APPLICATION

  • Magnetic Field Measurement
  • DC Brushless Motor
  • Current Sensor
  • Non-contact Switch
  • Position Control
  • Detection of Revolution
Operating Temperature: -40°C ~ +125°C
Measuring range: 3T
Input/Output Resistance: 650 ~ 850 kΩ/ 650 ~ 850kΩ
Linearity: ±1,0%
Package/Size: SIP/2.75x2.8x0.9mm
Max. Supply current/voltage: 13 mA/12 V
Max. Sensitivity: 1.44 ~ 2.16 mV/mT
