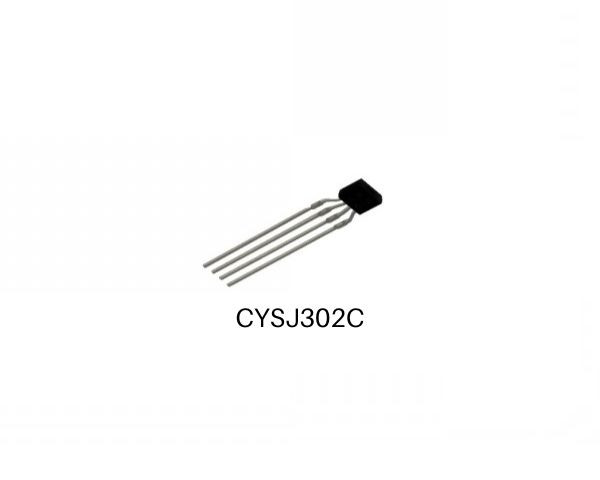

Linear Hall Effect Sensors Elements CYSJ302C, Max. Sensitivity: 1.8-2.5 (mV/mT), Measuring range: 3T

Linear Hall Effect Sensors Elements CYSJ302C, Max. Sensitivity: 1.8-2.5 (mV/mT), Measuring range: 3T
Quantity Unit price
until 9 € 2.38 *
from 10 € 1.98 *
from 20 € 1.65 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

Description Technical Properties Data Sheets
Description
CYSJ302C series Hall-effect element is a ion-implanted magnetic field sensor made of monocrystal... more
Close menu
Linear Hall Effect Sensors Elements CYSJ302C, Max. Sensitivity: 1.8-2.5 (mV/mT), Measuring range: 3T

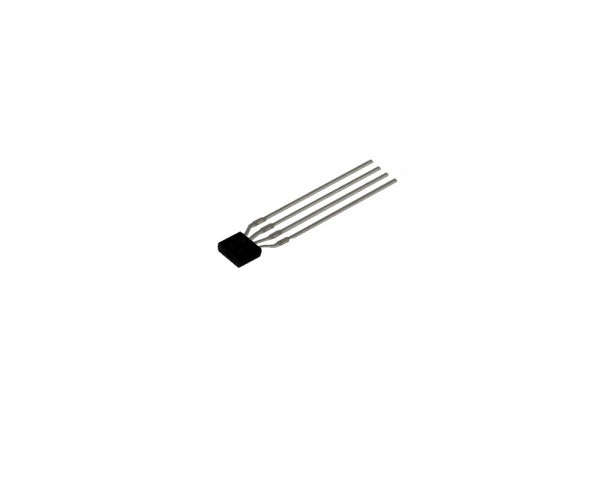

CYSJ302C series Hall-effect element is a ion-implanted magnetic field sensor made of monocrystal gallium arsenide (GaAs) semiconductor material group III-V using ion-implanted technology. It can convert a magnetic flux density signal linearly into voltage output.

Characteristics

  • High Linearity
  • Superior Temperature Stability
  • Miniature Package
  • Replacements of THS119, KSY14 and KSY44 etc.

Application

  • Magnetic Field Measurement
  • DC Brushless Motor
  • Current Sensor
  • Non-contact Switch
  • Position Control
  • Detection of Revolution
Technical Properties
more
Close menu
Operating Temperature: -40°C ~ +125°C
Measuring range: 3T
Package/Size: SIP/2.7x2.35x0.95mm
Max. Sensitivity: 1.80 ~ 2.5 mV/mT
Linearity: 2%
Input/Output Resistance: 650 ~ 850 kΩ/ 650 ~ 850kΩ
Max. Supply current/voltage: 10.0 V
Data Sheets
more
Close menu
Data sheets to download:
