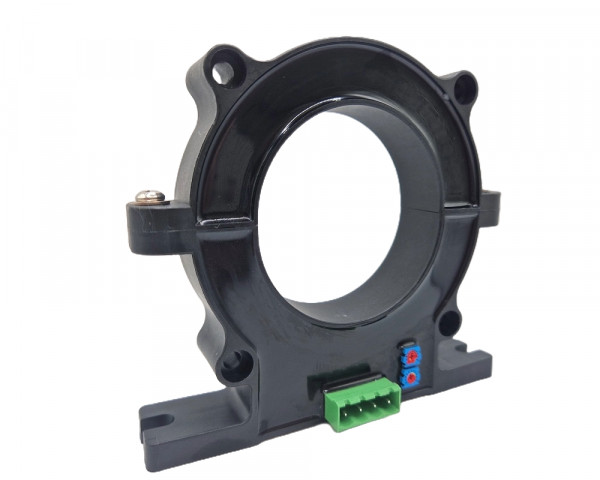

Split Core Hall Effect AC/DC Current Sensor CYHCS-EKF, Output: ±5V AC/DC, Power Supply: ±12~±15VDC, Window: Ø62mm

Split Core Hall Effect AC/DC Current Sensor CYHCS-EKF, Output: ±5V AC/DC, Power Supply: ±12~±15VDC, Window: Ø62mm
Quantity Unit price
until 4 € 91.34 *
from 5 € 83.04 *
from 10 € 75.49 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets
Description
This Hall Effect current sensor is based on open loop principle and designed with a split core... more
Close menu
Split Core Hall Effect AC/DC Current Sensor CYHCS-EKF, Output: ±5V AC/DC, Power Supply: ±12~±15VDC, Window: Ø62mm

This Hall Effect current sensor is based on open loop principle and designed with a split core and a high galvanic isolation between primary conductor and secondary circuit. It can be used for measurement of AC/DC current etc. The output of the transducer reflects the real wave of the current carrying conductor.

Product Characteristics

  • Excellent accuracy
  • Very good linearity
  • Less power consumption
  • Split core window structure
  • Electrically isolating the output of the transducer from the current carrying conductor
  • No insertion loss
  • Current overload capability

Applications

  • Photovoltaic equipment
  • Frequency conversion timing equipment
  • Various power supply
  • Uninterruptible power supplies (UPS)
  • Electric welding machines
  • Electrolyzing and electroplating equipment
  • Electric powered locomotive
  • Electric power network monitoring
Technical Properties
more
Close menu
Nominal Input Current: 0-300A, 0-400A, 0-500A, 0-600A, 0-800A, 0-1000A, 0-2000A, 0-4000A, 0-6000A
Power Supply: ±12V ~ ±15V DC
Output Signal: ±5V AC/DC
Current Type: AC/DC
Window Type: Round
Window Size (mm): ø 62
Direction: bidirectional
Accuracy: 1%
Linearity: 1%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: DC ~ 20kHz
Data Sheets
more
Close menu
Data sheets to download:
