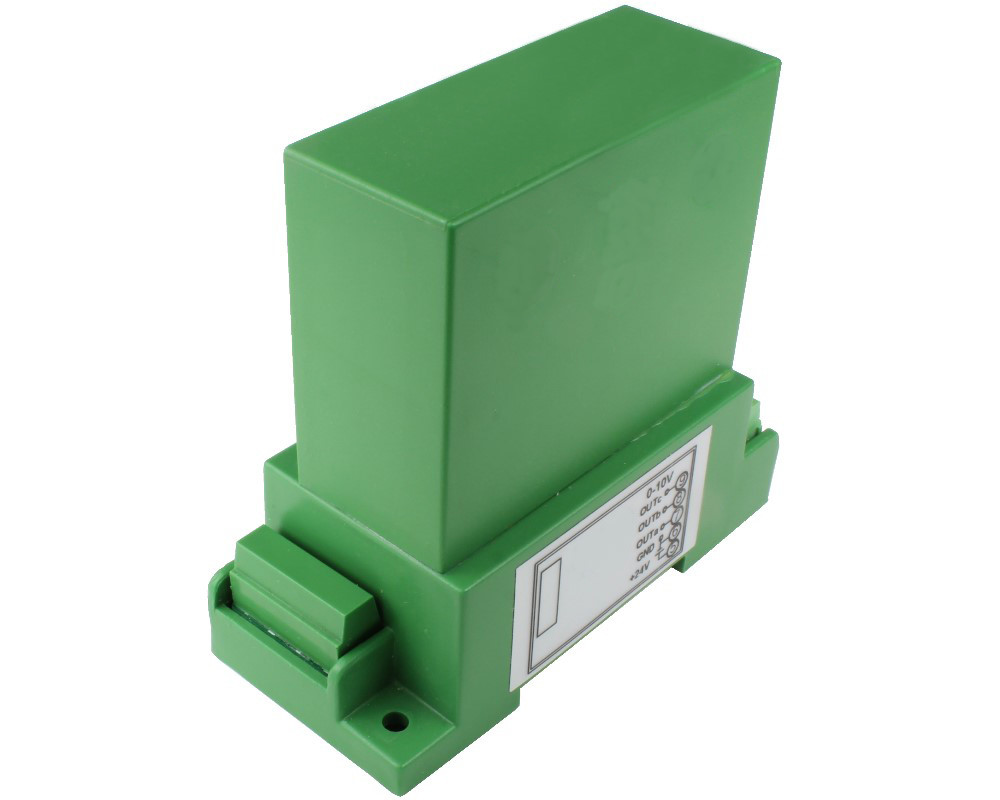

AC Voltage Sensor CYVS11-88S3, Output: 0-10 V DC, Power Supply: +110 V DC/AC
Quantity | Unit price |
---|---|
until 4 | € 60.34 * |
from 5 | € 54.86 * |
from 10 | € 49.87 * |
Prices incl. VAT excl. Shipping Costs
Article not in stock, Delivery time 3-4 Weeks
- Article-Nr: CYVS11-88S3-0.5-10V
- Serial-Nr: CYVS11-xnS3
- Request on this Article
- Data sheet download
The CYVS11-88S3 AC Voltage Sensor/Transducer works according to electro-magnetic induction and... more
AC Voltage Sensor CYVS11-88S3, Output: 0-10 V DC, Power Supply: +110 V DC/AC
The CYVS11-88S3 AC Voltage Sensor/Transducer works according to electro-magnetic induction and is designed for applications to measurement and monitoring of single-phase AC voltage. The output signal (DC voltage or current) of this transducer is proportional to the average effective value (RMS) of input AC voltage. They are suitable for general applications such as fixed frequency voltage supplies etc.
Information about product safety:
Manufacturer/ EU Responsible Person:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
Current Type: | AC |
Input Voltage Range: | 0-10V AC, 0-50V AC, 0-100V AC, 0-110V AC, 0-220V AC, 0-250V AC, 0-380V AC, 0-400V AC, 0-500V AC, 0-1000V AC |
Accuracy: | 0,5% |
Power Supply: | 110V DC/AC |
Response Time: | ≤300ms |
Isolation voltage: | 2.5 kV DC, 1min |
Operating Temperature: | -10°C ~ +60°C |
Output Signal: | 0-10V DC |
