Unipolar Hall Switch ICs

We are dedicated to providing you with the highest quality products suited to your needs.

To find the Unipolar Hall Switch ICs that fit your technical specifications the best, we highly recommend using the filter function.

Product Filter

Product Filter

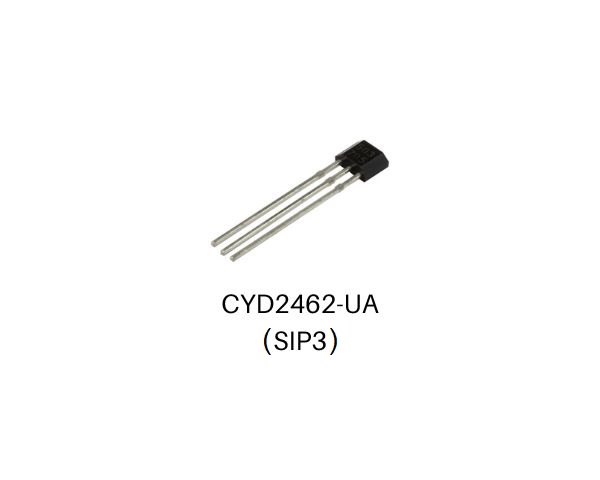

Omni-polar Hall Effect Switch CYD2462,Power Supply: 2.5V -24V

Serial: CYD2462

Operating point: ±2.5mT
Release Point: ±1.5mT
Supply Voltage: 2.5V ~ 24V
Operating temperature: -40°C ~ +150°C
Package/Size: SOT-23/2.9x1.6x1.1mm or SIP3/4x3x1.5mm
from €0.27 *
Unipolar Hall Effect Switch Ics CYD507, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

Serial: CYD507

Operating point: 27mT
Release Point: 23mT
Supply Voltage: 2.7V ~ 30V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92S or SOT23-3L
from €0.44 *

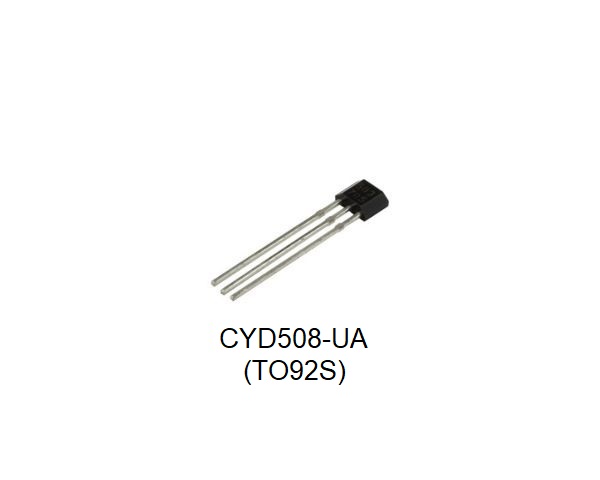

Unipolar Hall Effect Switch Ics CYD508, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

Serial: CYD508

Operating point: -5.5mT
Release Point: -3.5mT
Supply Voltage: 2.7V ~ 30V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92S or SOT23-3L
from €0.44 *
Unipolar Hall Effect Switch Ics CYD509, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

Serial: CYD509

Operating point: 3.5mT
Release Point: 5.5mT
Supply Voltage: 2.7V ~ 30V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92S or SOT23-3L
from €0.44 *
Unipolar Hall Effect Switch Ics CYD510, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

Serial: CYD510

Operating point: 10mT
Release Point: 8mT
Supply Voltage: 2.7V ~ 30V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92S or SOT23-3L
from €0.44 *

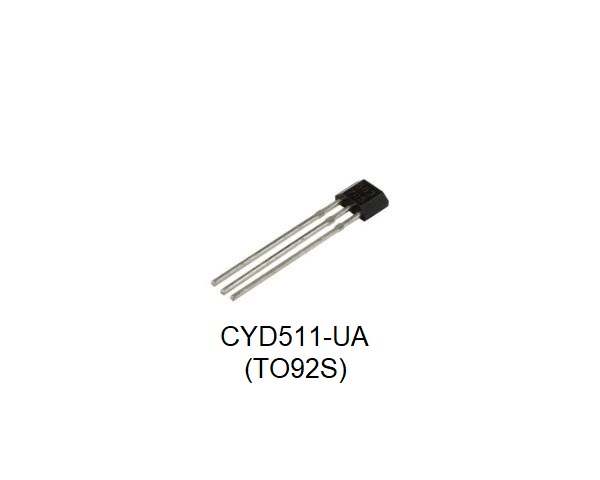

Unipolar Hall Effect Switch Ics CYD511, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

Serial: CYD511

Operating point: 8mT
Release Point: 10mT
Supply Voltage: 2.7V ~ 30V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92S or SOT23-3L
from €0.44 *

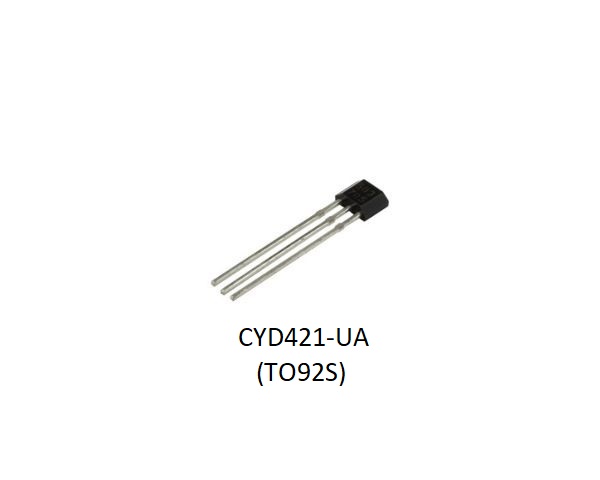

Unipolar Hall Effect Switch Ics CYD421, Power Supply: 3.8-40V, supply current: 40mA, Operating Temperature: -40 ~+125°C

Serial: CYD421

Operating point: 3.0mT ~ 8.0mT
Release Point: 1.0mT ~ 6.0mT
Supply Voltage: 3.8V ~ 40V
Operating temperature: -40°C ~ +125°C
Package/Size: TO92S or SOT23-3L
from €0.25 *

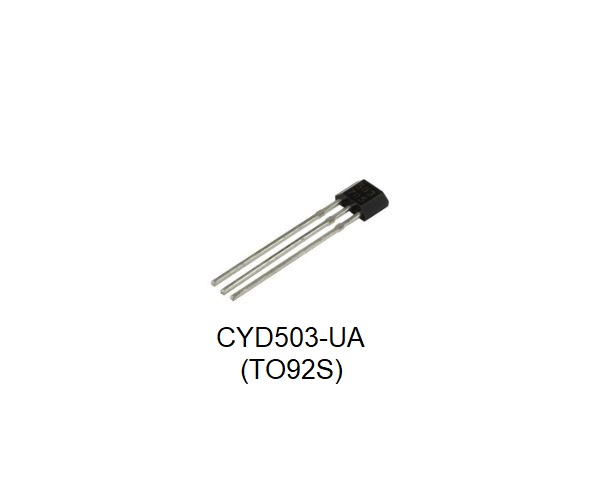

Unipolar Hall Effect Switch Ics CYD503, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

Serial: CYD503

Operating point: 3.8mT ~ 7.2mT
Release Point: 2.0mT ~ 5.0mT
Supply Voltage: 2.7V ~ 30V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92S or SOT23-3L
from €0.44 *
Unipolar Hall Effect Switch Ics CYD506, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

Serial: CYD506

Operating point: 18mT
Release Point: 16mT
Supply Voltage: 2.7V ~ 30V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92S or SOT23-3L
from €0.44 *

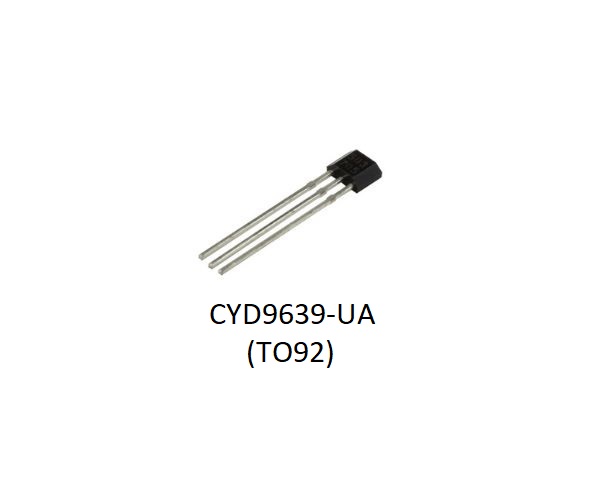

Unipolar Hall Effect Switch Ics CYD9639, Power Supply: 3.8-24V, Supply Current: 50mA,Operating Temperature: -40 ~+125°C

Serial: CYD9639

Einschaltpunkt: -7.2mT ~ -3.8mT
Rückschaltpunkt: -5.0mT ~ -2.0mT
Versorgungsspannung: 3.8V ~ 24V
Betriebstemperatur: -40°C ~ +150°C or -40°C ~ +125°C
Gehäuse/Abmessungen: TO92, SOT23 oder SOT89
from €0.46 *
Bipolar Hall Effect Latching Switch IC CYD41, Power Supply: 4,5V~24V, Supply Current: 8mA, Operating Temperature: -40°C~+150°C

Serial: CYD41

Operating point: 4mT
Release Point: -4mT
Supply Voltage: 4.5V ~ 24V
Operating temperature: -40°C ~ +150°C
Package/Size: TO-92UA/4.06x3.1x1.5mm
from €0.64 *

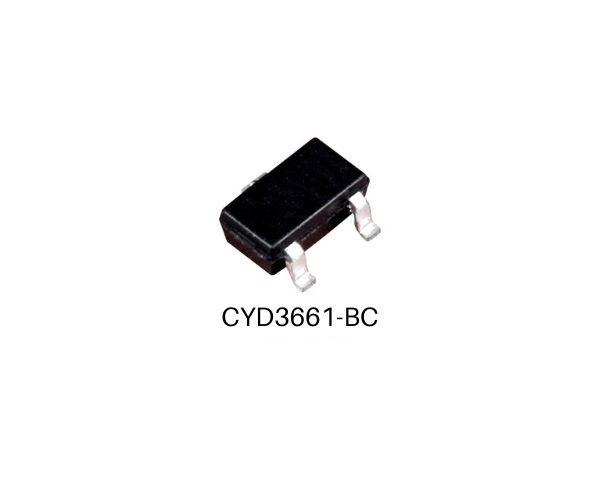

Omni-polar Hall Effect Switch CYD3661-BC, Power Supply: 2,4V~6V, Operating Temperature: -40°C~+85°C

Serial: CYD3661-BC

Operating point: S: 1.8mT~4.7mT, N: -3.5mT~-5.5mT
Release Point: S: 1.4mT~4.3mT, N: -2.7mT~-4.6mT
Versorgungsspannung: 2.4V ~ 6.0V
Betriebstemperatur: -40°C ~ +85°C
Gehäuse/Abmessungen: SOT-23/2.9x1.8x1.1mm
from €0.25 *
Unipolar Hall Effect Switch Ics CYD9636-K, Power Supply: 3.8-24V, Supply Current: 50mA,Operating Temperature: -40 ~+125°C

Serial: CYD9636-K

Max. Sensitivity: 3.8mT ~ 7.2mT
Release Point: 2.0mT ~ 5.0mT
Supply Voltage: 3.8V ~ 24V
Operating temperature: -40°C ~ +125°C
Package/Size: TO92, SOT23 or SOT89
from €0.69 *
Unipolar Hall Effect Switch Ics CYD9636-A, Power Supply: 3.8-24V, Supply Current: 50mA,Operating Temperature: -40 ~+150°C

Serial: CYD9636-A

Operating point: 3.8mT ~ 7.2mT
Release Point: 2.0mT ~ 5.0mT
Supply Voltage: 3.8V ~ 24V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92, SOT23 or SOT89
from €0.87 *

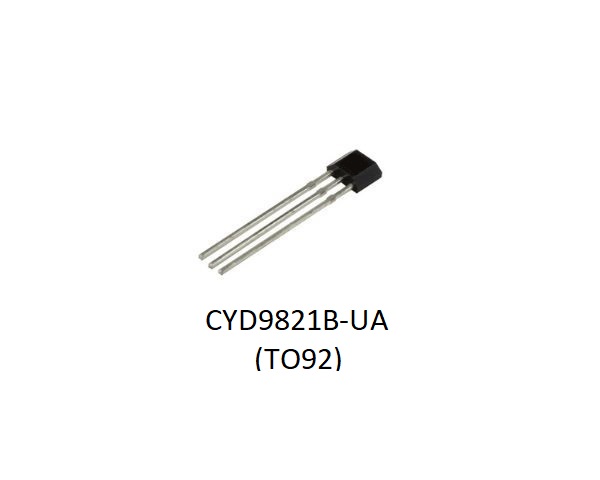

Unipolar Hall Effect Switch Ics CYD9821B, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C

Serial: CYD9821B

Operating point: -12mT ~ -9mT
Release Point: -11.0mT ~ -5.5mT
Versorgungsspannung: 2.5V ~ 18V
Betriebstemperatur: -40°C ~ +125°C
Gehäuse/Abmessungen: TO92, SOT23 or SOT89
from €0.31 *
Unipolar Hall Effect Switch Ics CYD9821A, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C

Serial: CYD9821A

Operating point: 9mT ~ 12mT
Release Point: 5.5mT ~ 11mT
Versorgungsspannung: 2.5V ~ 18V
Betriebstemperatur: -40°C ~ +125°C
Gehäuse/Abmessungen: TO92, SOT23 or SOT89
from €0.31 *

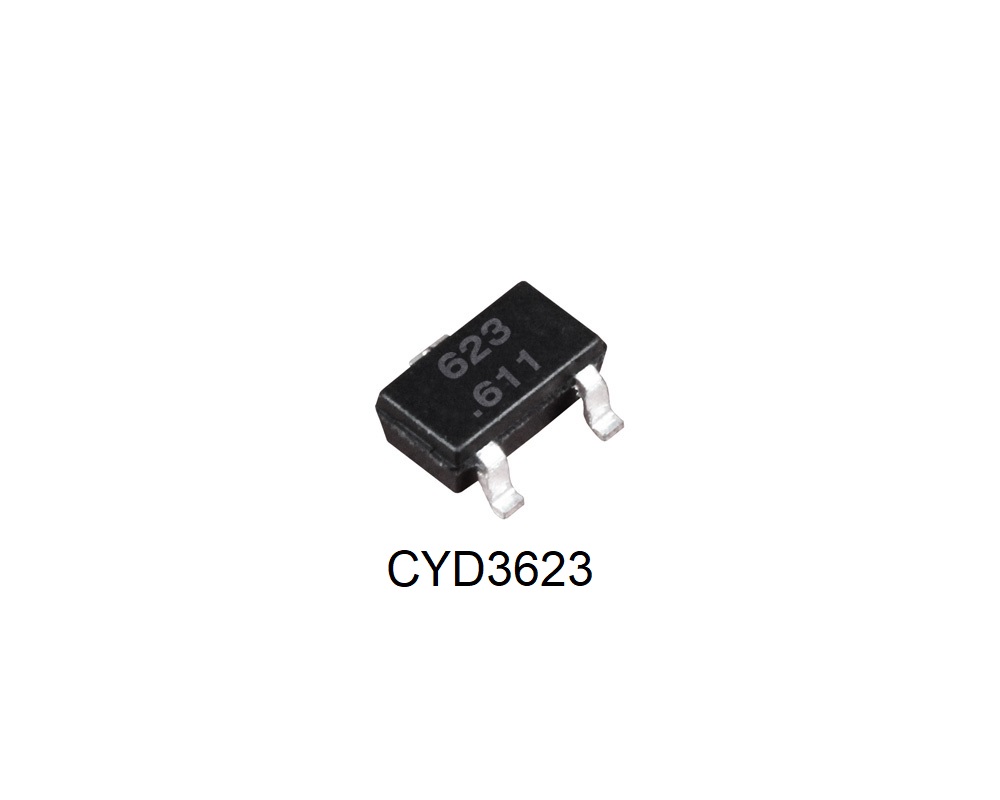

Unipolar Hall Effect Switch Ics CYD3623-S, Power Supply: 2.5-18V, Supply current: 25mA,Operating Temperature: -40 ~+125°C

Serial: CYD3623

Operating point: 10mT ~ 11mT
Release Point: 7.0mT ~ 10mT
Versorgungsspannung: 2.5V ~ 18V
Betriebstemperatur: -40°C ~ +125°C
Gehäuse/Abmessungen: SOT23
from €0.37 *

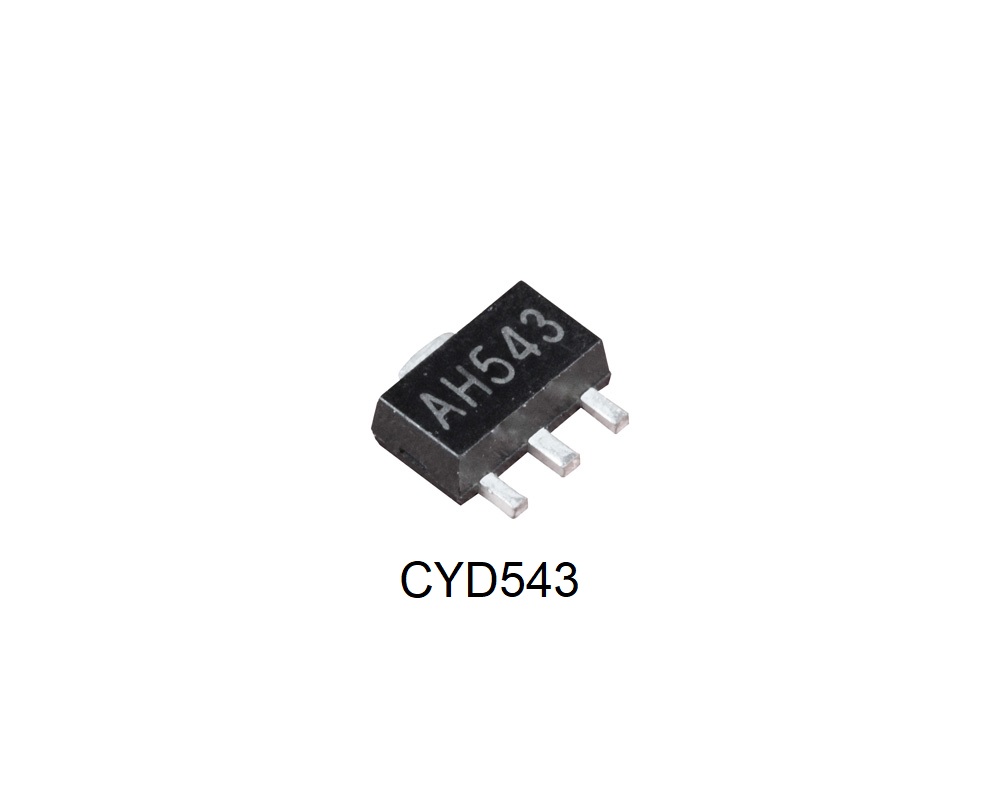

Unipolar Hall Effect Switch Ics CYD543, Power Supply: 4.5-24V, Supply current: 10mA,Operating Temperature: -50 ~+150°C

Serial: CYD543

Operating point: 15mT
Release Point: 10mT
Versorgungsspannung: 4.5V ~ 24V
Betriebstemperatur: -50°C ~ +150°C
Gehäuse/Abmessungen: SOT-89/4.5x2.5x1.5mm
from €0.69 *

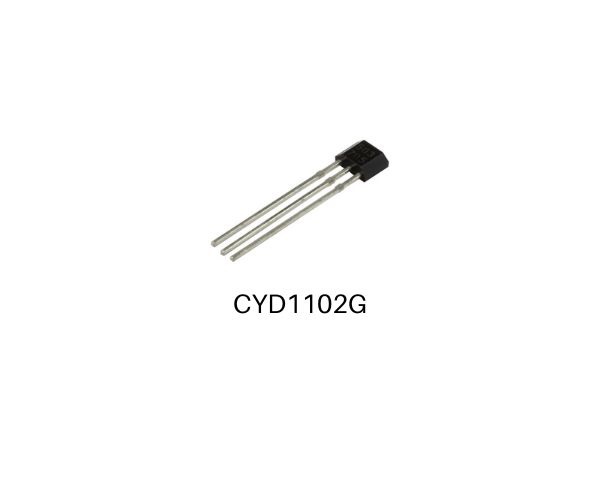

Unipolar Hall Effect Switch Ics CYD1102G, Power Supply: 3-28V, Supply current: 10mA,Operating Temperature: -40 ~+150°C

Serial: CYD1102G

Operating point: 14mT
Release Point: 6mT
Versorgungsspannung: 3.0V ~ 28V
Betriebstemperatur: -40°C ~ +150°C
Gehäuse/Abmessungen: SIP-3L/4.1x3.05x1.5mm
from €0.29 *
Unipolar Hall Effect Switch Ics CYD3141E, Power Supply: 4.5-24V, Supply current: 9mA,Operating Temperature: -40 ~+85°C

Serial: CYD3141E

Operating point: 5mT ~ 16mT
Release Point: 1mT ~ 13mT
Versorgungsspannung: 4.5V ~ 24V
Betriebstemperatur: -40°C ~ +85°C
Gehäuse/Abmessungen: TO-92UA/4.06x3.1x1.5mm
from €0.64 *
Unipolar Hall Effect Switch Ics CYD3144E, Power Supply: 4.5-24V, supply current: 9mA,Operating Temperature: -40 ~+85°C

Serial: CYD3144E

Operating point: 5mT ~ 20mT
Release Point: 1mT ~ 14mT
Versorgungsspannung: 4.5V ~ 24V
Betriebstemperatur: -40°C ~ +85°C
Gehäuse/Abmessungen: TO-92UA/4.06x3.1x1.5mm
from €0.35 *
Unipolar Hall Effect Switch Ics CYD443H, Power Supply: 4-30V, Supply current: 5mA, Operating Temperature: -40 ~+150°C

Serial: CYD443H

Operating point: 3mT ~ 10.5mT
Release Point: 2mT ~ 7.5mT
Versorgungsspannung: 4.0V ~ 30V
Betriebstemperatur: -40°C ~ +150°C
Gehäuse/Abmessungen: TO-92S/4.1x3.18x1.58mm
from €0.83 *
