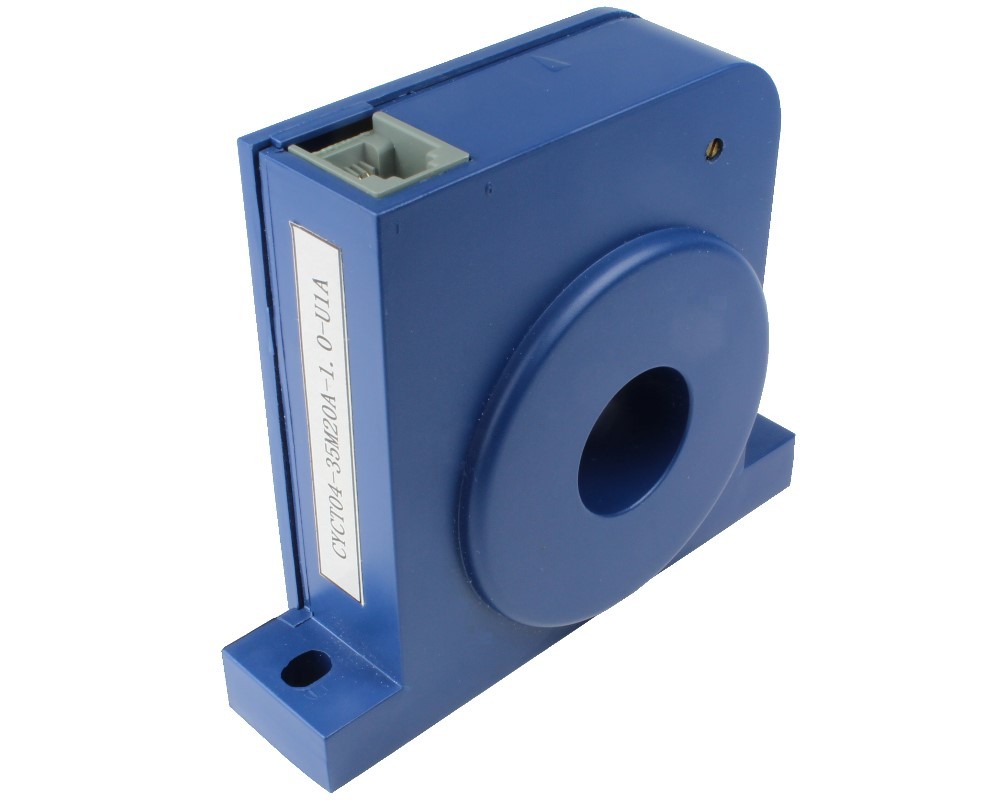

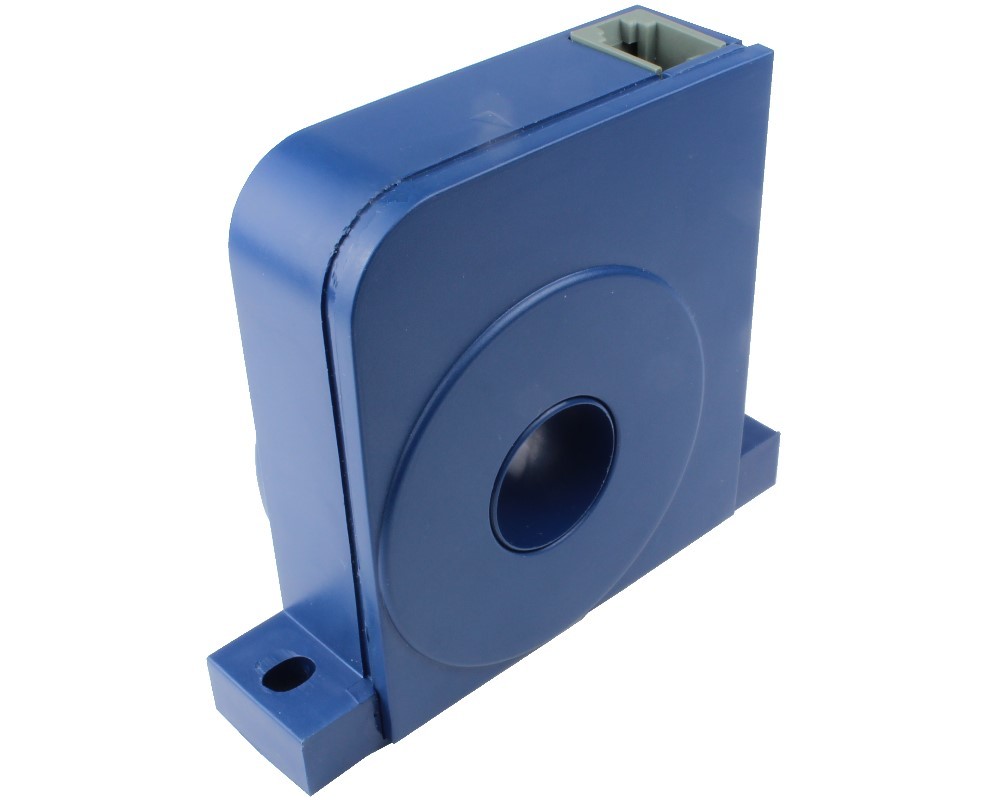

This current sensor is based on magnetic modulation and compensation principle， and can be used for measurement of small DC current and leakage current, the current difference between two or more conductors.
|Rated Input Current/Voltage:||0-10mA DC, 0-20mA DC, 0-50mA DC, 0-100mA DC, 0-200mA DC, 0-500mA DC, 0-1A DC, 0-2A DC|
|Operating Temperature:||-10°C ~ +70°C|
|Output Signal:||0-20mA DC|
|Power Supply:||±12V DC|
|Thermal drift:||Typ. 100 ppm/°C; max. 250 ppm/°C|
|Window Size (mm):||Ø 20|
