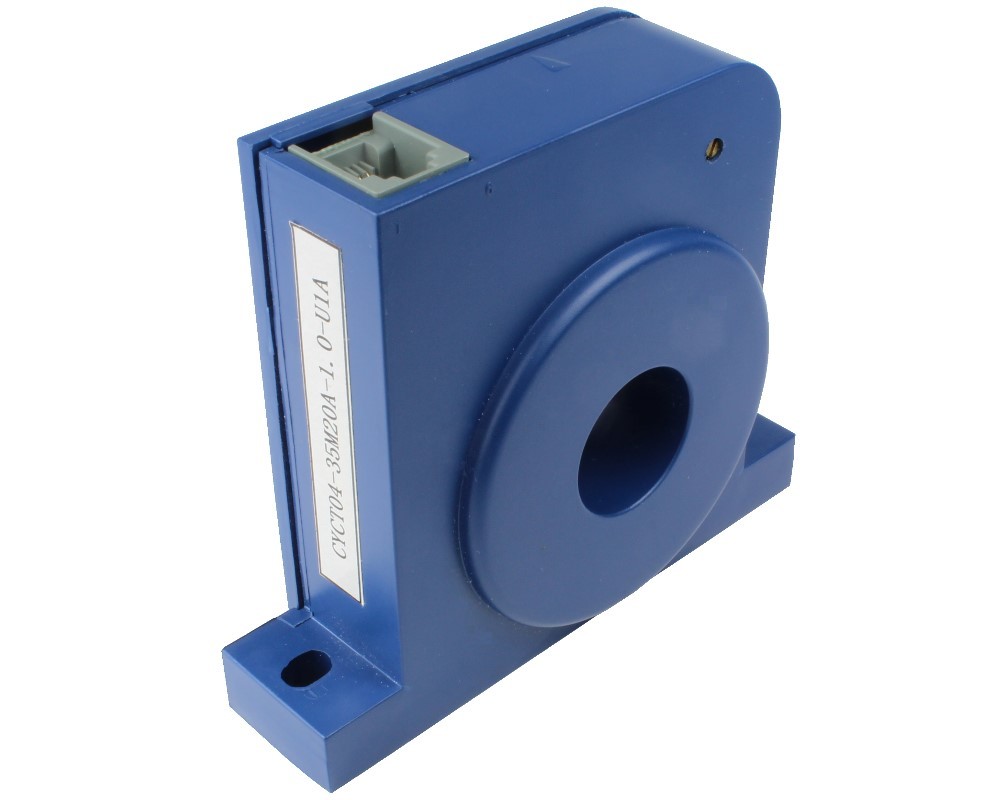

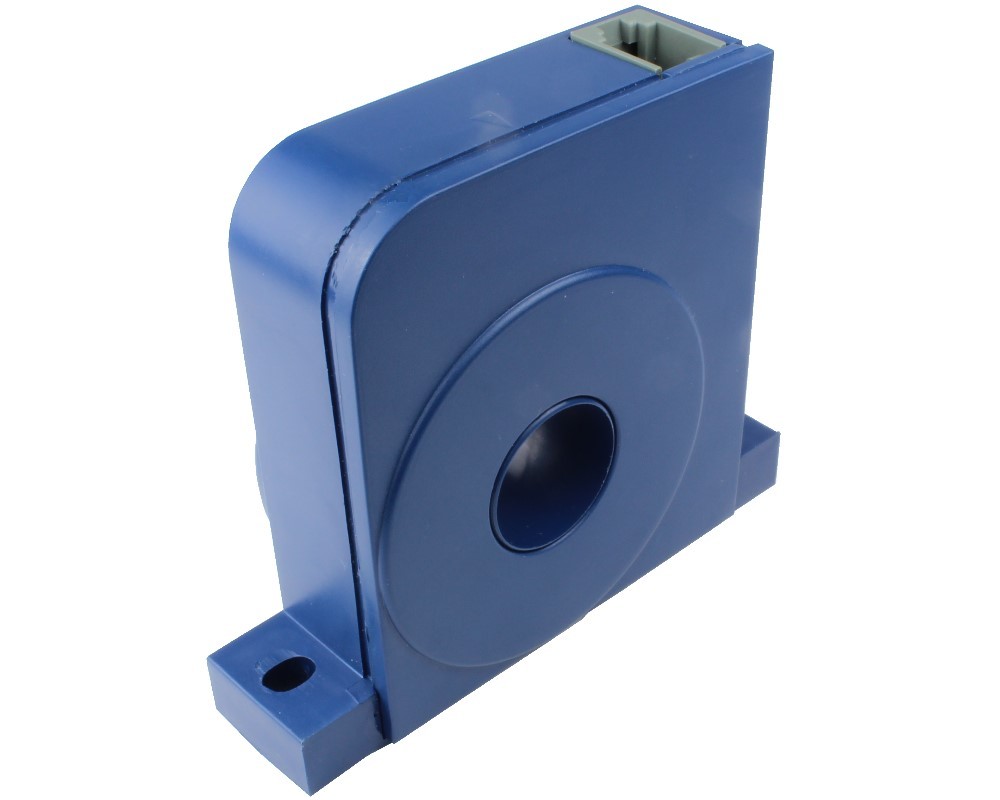

Bidirectional DC Leakage Current Sensor CYCT04-56M20A, Output: 4-20mA DC, Power Supply: ±15V DC, Window: Ø20mm
| Quantity | Unit price |
|---|---|
| Until 4 |
€27.75
|
| From 5 |
€25.23
|
| From 10 |
€22.93
|
| From 50 |
€21.00
|
Article not in stock, delivery time 3-4 Weeks
Product information "Bidirectional DC Leakage Current Sensor CYCT04-56M20A, Output: 4-20mA DC, Power Supply: ±15V DC, Window: Ø20mm"
This current sensor is based on magnetic modulation and compensation principle， and can be used for measurement of small DC current and leakage current, the current difference between two or more conductors.
Product Characteristics:
- Application of Computer-Aided Ageing Technology
- 100% Ageing Processing and Thermal Drift Test under high operating temperature in order to guarantee the long term stability of the sensors
- Custom makeable according to individual requirements
- Various current and voltage outputs are selectable
- Power supply options: ±12VDC and ±15VDC, single power supply is possible
- Sensors with window for contactless measurements
Applications:
- Isolation Monitoring of DC power systems and cable selection systems
- Measurements of small DC currents and leakage currents
Information about product safety:
Manufacturer/ EU Responsible Person:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
| Accuracy: | 1,0% |
|---|---|
| Current Type: | DC |
| Direction: | bidirectional |
| Operating Temperature: | -10°C ~ +70°C |
| Output Signal: | 4-20 mA DC |
| Power Supply: | ±15 V DC |
| Rated Input Current/Voltage: | 0-1A, 0-2A, 0-10mA, 0-20mA, 0-50mA, 0-100mA, 0-200mA, 0-500mA |
| Response Time: | ≤120ms |
| Window Size (mm): | Ø 20 |
