Bidirectional Digital Split Core Hall Effect DC/ AC Current Sensor CYHCD-S3K; Digital Output: Current I, Frequency F; Analogue Output: 2.5VDC±2.5VAC; Power Supply: +15V DC; Interface: RS485 MODBUS; Window: Ø 20 mm
| Quantity | Unit price |
|---|---|
| Until 4 |
€136.75
|
| From 5 |
€124.77
|
| From 10 |
€114.57
|
Article not in stock, delivery time 3-4 Weeks
Product information "Bidirectional Digital Split Core Hall Effect DC/ AC Current Sensor CYHCD-S3K; Digital Output: Current I, Frequency F; Analogue Output: 2.5VDC±2.5VAC; Power Supply: +15V DC; Interface: RS485 MODBUS; Window: Ø 20 mm"

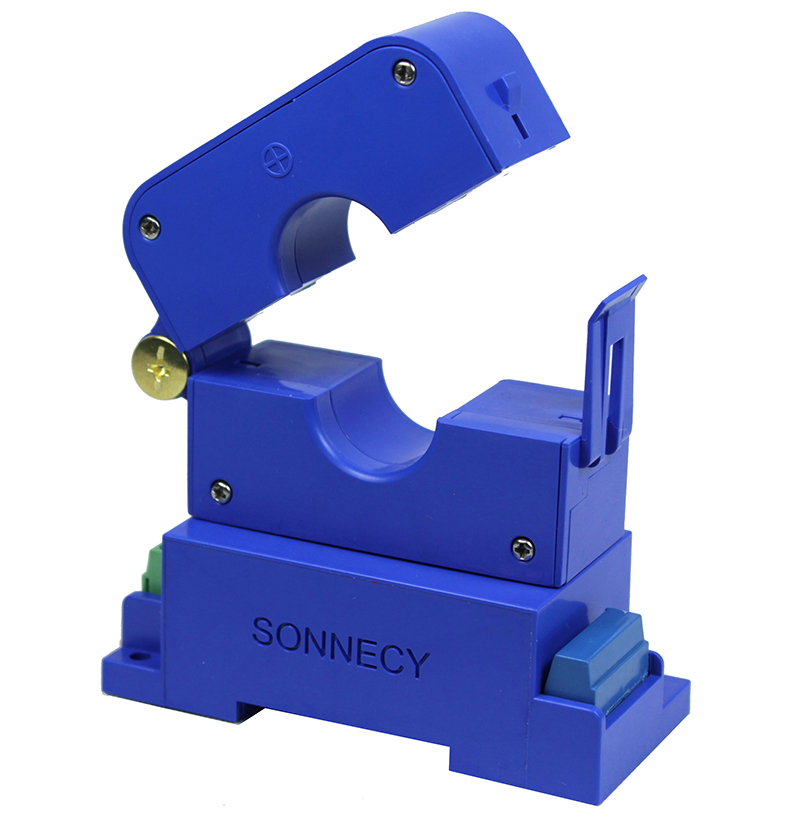

The sensor CYHCD-S3K is a Hall Effect current sensor for the measurement of DC/AC current. The sensor has galvanic isolation between the high-power primary conductor and the secondary electronic circuit. The sensor has analog and different digital output signals under different power supplies. The data communication between the sensor and digital equipment can be realized directly through the interface RS-485 MODBUS.
Applications
- Photovoltaic equipment
- Battery banks, such as monitoring load current and charge current, verifying operation
- Transportation, measuring traction power
- Phase fired controlled heaters
- Directly connect to PLC
- Sense motor stalls and short circuits
- Industrial instrumentation
Features
- DC/AC current measurement
- High measuring accuracy
- Analog output voltage 2.5VDC±2.5VAC, 5VDC±5VAC
- Digital outputs (RS-485 Modbus)
- Split Core, easy installation
- Protection against overvoltage
- Protection against reversed polarity
- Output protection against electrical disturbances
Information about product safety:
Manufacturer/ EU Responsible Person:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
| Accuracy: | 0.5%, 1,0% |
|---|---|
| Analogue Output Signal: | 2.5V DC ± 2.5V AC |
| Baud Rate (bps): | 19.2K, 38.4K, 57.6K, 115.2K, 1200, 2400, 4800, 9600 (default) |
| Digital Outputs: | Current I, Frequency F |
| Interface: | RS485, MODBUS |
| Linearity: | 0,2%, 0,5% |
| Nominal Input Current: | 0-25A, 0-30A, 0-40A, 0-50A, 0-60A, 0-70A, 0-80A, 0-90A, 0-100A, 0-200A, 0-300A, 0-400A, 0-500A |
| Operating Temperature: | -40°C ~ +85°C |
| Power Supply: | +15V DC |
| Window Size (mm): | Ø 20 |
| Window Type: | Round |
