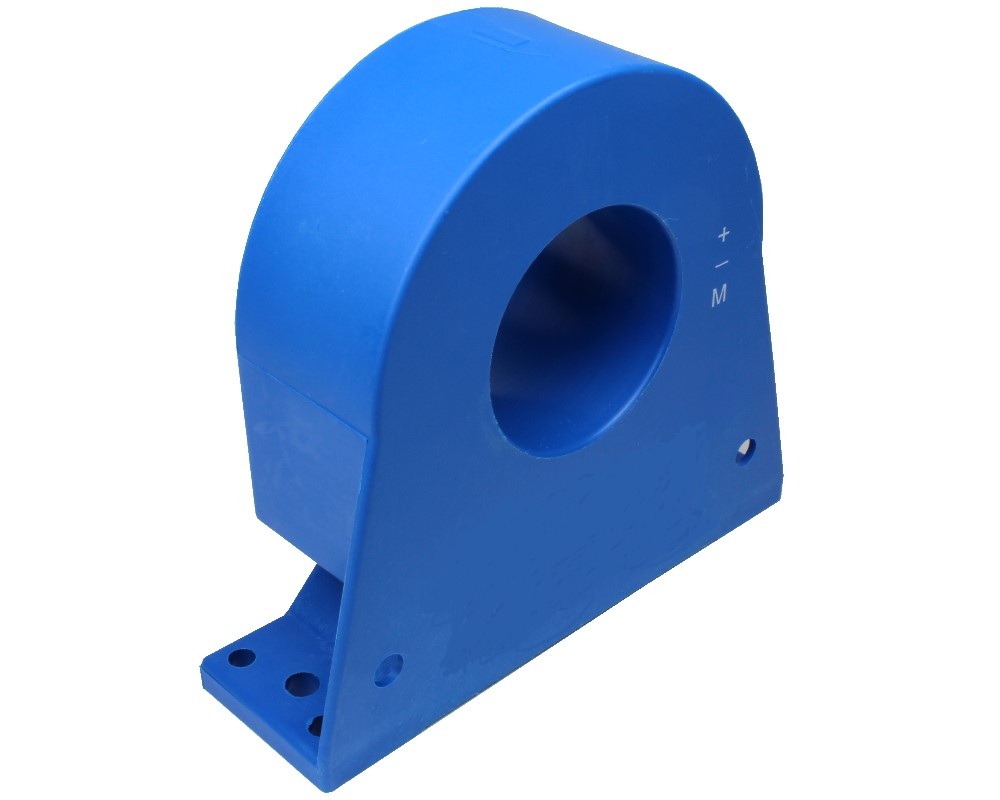

Closed Loop Hall AC/DC Current Sensor CYHCS-D6-X
| Quantity | Unit price |
|---|---|
| Until 4 |
€64.93
|
| From 5 |
€61.94
|
| From 10 |
€58.16
|
Article not in stock, delivery time 3-4 Weeks
Product information "Closed Loop Hall AC/DC Current Sensor CYHCS-D6-X"
This Hall Effect current sensor is based on closed loop compensating principle and designed with a high galvanic isolation between primary conductor and secondary circuit. It can be used for measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.
Product Characteristics
- Excellent accuracy
- Very good linearity
- Various kinds of output signals
- Window structure and encapsulated
- Large current measuring range
- High current overload capability
Applications
- Photovoltaic equipment
- General Purpose Inverters
- AC/DC Variable Speed Drivers
- Battery Supplied Applications
- Uninterruptible Power Supplies
- Switched Mode Power Supplies
| Accuracy: | 0.5% |
|---|---|
| Current Type: | AC/DC |
| Direction: | bidirectional |
| Frequency Bandwith: | DC ~ 100kHz |
| Linearity: | 0.1% |
| Nominal Input Current: | 0-100A, 0-250A, 0-500A |
| Operating Temperature: | -25°C ~ +85°C |
| Output Signal: | ±4V AC/DC, ±5V AC/DC , ±20mA AC/DC |
| Power Supply: | ±15V ~ ±24V DC |
| Sensor Type: | Closed-Loop |
| Window Size (mm): | Ø 35 |
| Window Type: | Round |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
