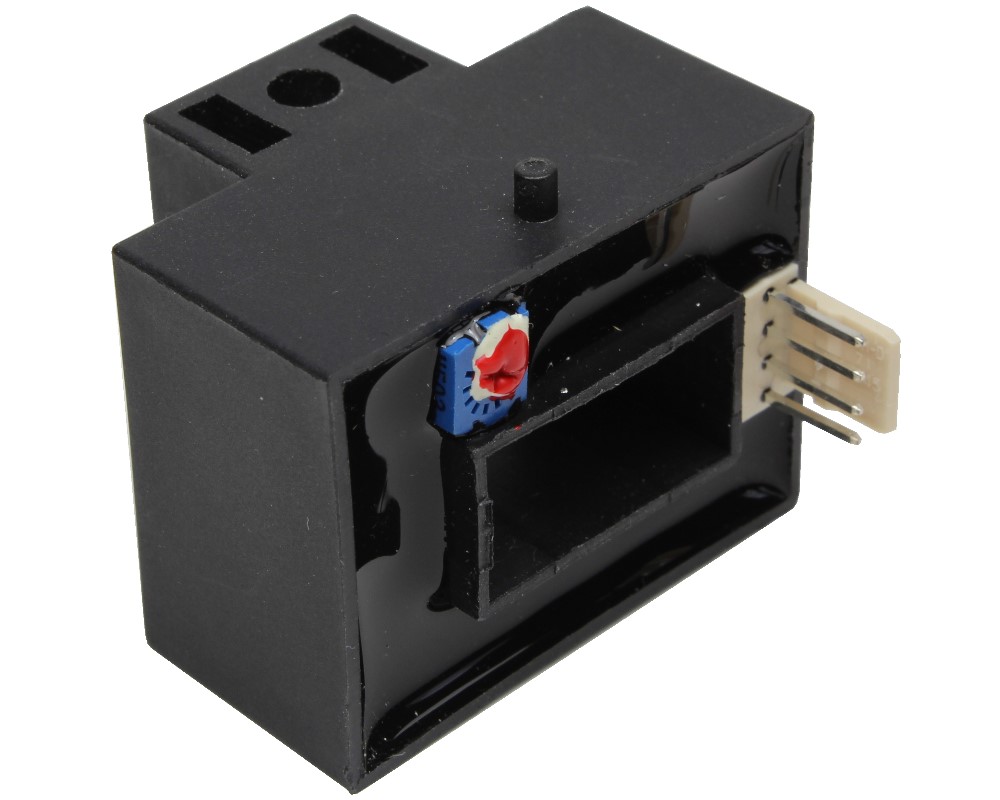

Closed Loop Hall Effect AC/DC Current Sensor CYHCS-B3V, Output: ±4 V AC/DC, Power Supply: ±1 5V DC, Window: 20.5 x 10.5 mm
| Quantity | Unit price |
|---|---|
| Until 4 |
€22.71
|
| From 5 |
€20.65
|
| From 10 |
€18.77
|
Shipping ready, delivery time 1-3 workdays
for quantities up to 5 pieces,
delivery time 3-4 weeks for more
Product information "Closed Loop Hall Effect AC/DC Current Sensor CYHCS-B3V, Output: ±4 V AC/DC, Power Supply: ±1 5V DC, Window: 20.5 x 10.5 mm"
This Hall Effect current sensor is based on closed loop compensating principle and designed with a high galvanic isolation between primary and secondary circuits. It can be used for measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.
Characteristics
- Excellent accuracy
- Very good linearity
- Small size and encapsulated
- Less power consumption
- Current overload capability
Applications
- Photovoltaic equipment
- General Purpose Inverters
- AC/DC Variable Speed Drivers
- Battery Supplied Applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies
| Accuracy: | 0.5% |
|---|---|
| Current Type: | AC/DC |
| Direction: | bidirectional |
| Frequency Bandwith: | DC ~ 100kHz |
| Linearity: | 0.1% |
| Nominal Input Current: | 0-50A, 0-100A, 0-200A, 0-300A |
| Operating Temperature: | -25°C ~ +85°C |
| Output Signal: | ±4V AC/DC |
| Power Supply: | ±15 V DC |
| Sensor Type: | Closed-Loop |
| Window Size (mm): | 20.5 x 10.5 |
| Window Type: | Rectangle |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
