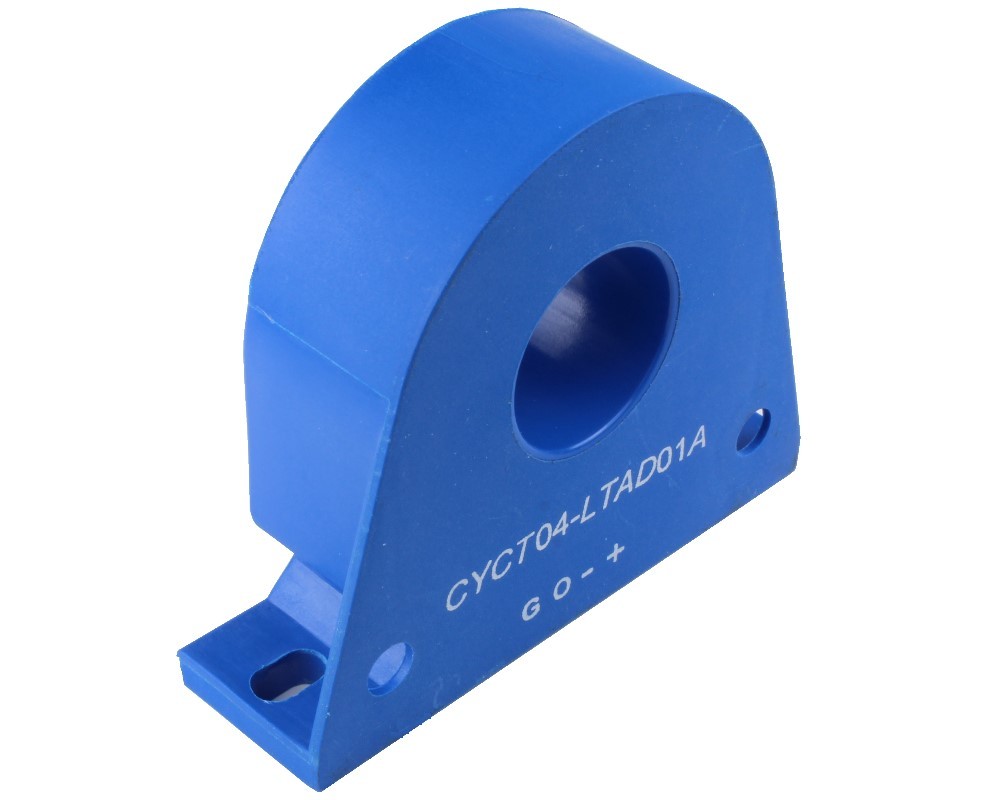

DC Current Sensor CYCT04-LTAD
| Quantity | Unit price |
|---|---|
| Until 4 |
€52.30
|
| From 5 |
€47.55
|
| From 10 |
€43.22
|
Shipping ready, delivery time 1-3 workdays
for quantities up to 19 pieces,
delivery time 3-4 weeks for more
Product information "DC Current Sensor CYCT04-LTAD"
This current sensor series is based on magnetic modulation principle and has good stability for measuring 1A~100A DC current and high isolation between primary current and secondary output signal. This sensor can be used for measurement of DC currents.
Product Characteristics
- Excellent accuracy
- Very good linearity
- Less power consumption
- Window structure
- Electrically isolating the output of the transducer from the current carrying conductor
- No insertion loss
- Current overload capability
Applications
- Various power supply
- Communication systems
- Leakage current measurement
- Numerical controlled machine tools
- Current difference measurement
- Electric circuits measurement
- Microcomputer monitoring
- Electric power network monitoring
| Accuracy: | 0.5% |
|---|---|
| Current Type: | DC |
| Direction: | bidirectional |
| Nominal Input Current: | 0-1A, 0-5A, 0-10A, 0-20A, 0-30A, 0-40A, 0-50A, 0-60A, 0-75A, 0-100A |
| Operating Temperature: | -25°C ~ +85°C |
| Output Signal: | ±5V DC |
| Power Supply: | ±15 V DC |
| Response Time: | < 20ms |
| Window Size (mm): | Ø 20 |
| Window Type: | Round |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
