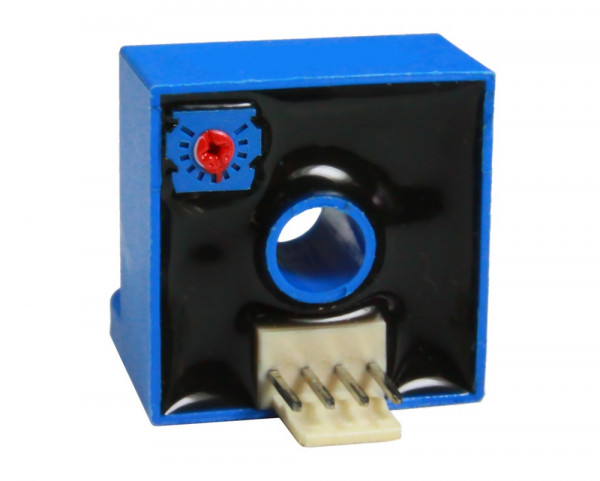

Hall Effect AC/DC Current Sensor CYHCS-GB

Hall Effect AC/DC Current Sensor CYHCS-GB
Quantity Unit price
until 4 € 13.66 *
from 5 € 12.42 *
from 10 € 11.29 *
from 50 € 10.41 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets Product Safety Information
Description
This Hall Effect current sensor is based on closed loop principle and designed with core... more
Close menu
Hall Effect AC/DC Current Sensor CYHCS-GB

This Hall Effect current sensor is based on closed loop principle and designed with core structure and a high galvanic isolation between primary conductor and secondary circuit. It can be used for measurement of AC/DC current etc. The output of the transducer reflects the real wave of the current carrying conductor.

Product Characteristics

  • Excellent accuracy
  • Very good linearity
  • Light in weight • Less power consumption
  • Window structure, easily mounting
  • Electrically isolating the output of the transducer from the current carrying conductor
  • No insertion loss
  • Current overload capability

Applications

  • Photovoltaic equipment
  • Frequency conversion timing equipments
  • Various power supply
  • Uninterruptible power supplies (UPS)
  • Electric welding machines
  • Numerical controlled machine tools
  • Electrolyzing and electroplating equipments
  • Electric powered locomotive
  • Microcomputer monitoring
  • Electric power network monitoring
Technical Properties
more
Close menu
Nominal Input Current: 0-10A, 0-20A, 0-25A, 0-40A
Sensor Type: Closed-Loop
Power Supply: ±12V ~ ±15V DC
Output Signal: ±20mA AC/DC, ±25 mA AC/DC, ±10 mA AC/DC
Current Type: AC/DC
Window Type: Round
Window Size (mm): Ø 6,5
Direction: bidirectional
Accuracy: 0.7%
Linearity: 0.1%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: DC ~ 200kHz
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
