Linear Hall-Effect Sensor IC CYL601, Max. Sensitivity: 9-15 (mV/mT) , Measuring range: 1250 Gs (= 125 mT)
| Quantity | Unit price |
|---|---|
| Until 9 |
€0.60
|
| From 10 |
€0.49
|
| From 20 |
€0.40
|
| From 50 |
€0.35
|
| From 100 |
€0.29
|
| From 200 |
€0.24
|
| From 500 |
€0.20
|
Shipping ready, delivery time 1-3 workdays
for quantities up to 6 pieces,
delivery time 3-4 weeks for more
Product information "Linear Hall-Effect Sensor IC CYL601, Max. Sensitivity: 9-15 (mV/mT) , Measuring range: 1250 Gs (= 125 mT)"

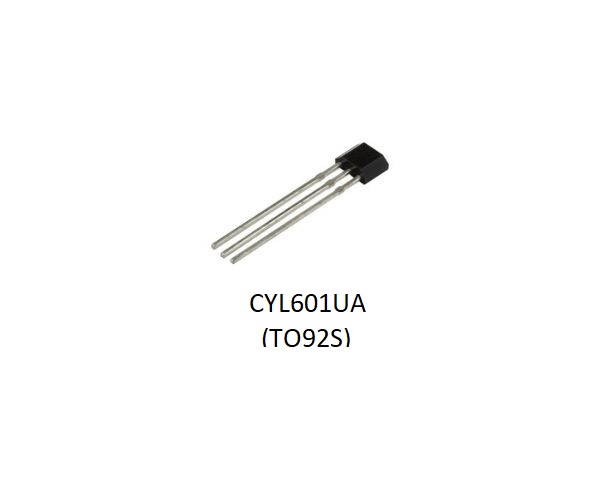

The CYL601 ICs are high performance small versatile linear Hall Effect devices which are operated by the magnetic field from a permanent magnet or an electromagnet. The ratio metric output voltage is set by the supply voltage and varies in proportion to the strength of the magnetic field. The CYL60X family has a quiescent output voltage that is 50% of the supply voltage and output sensitivity options from 9mV/G to 15mV/G. The integrated circuitry provides increased temperature stability and sensitivity. The CYL601 provides high accuracy and temperature compensation. These linear position sensors have an operating temperature range of -40°C to +150°C, appropriate for industrial and automotive environments. They respond to either positive or negative magnetic field, monitoring either or both magnetic poles. The sensor is available in 2 package styles, which are TO92 and SOT23.
Features:
- 3.0 to 12.0 V operation
- Single current sourcing or current sinking output
- Precise sensitivity and temperature compensation
- Power consumption of 5mA at 5 VDC for energy efficiency
- Output voltage proportional to magnetic flux density
- Temperature range of -40°C to 150°C
- Highest ESD performance up to ±4 kV
- Robust EMC protection
- React differently to the Antarctic and Arctic magnetic fields
Applications:
- Current sensing
- Position sensing
- Magnetic code reading
- Motor control
- Weight and liquid level sensing
- Motion detection
- Proximity detection
- Speed detection
Information about product safety:
Manufacturer/ EU Responsible Person:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
| Linearity: | ±1,0% |
|---|---|
| Max. Sensitivity: | 9.0 ~ 15.0 mV/mT |
| Max. Supply current/voltage: | 10 mA/ 15V |
| Measuring Range: | 125 mT, 1250 Gs |
| Operating Temperature: | -40°C~ +150°C |
| Package/Size: | SOT23, TO92 |
| Quiescent Output voltage: | 2.25 V ~ 2.75 V |
