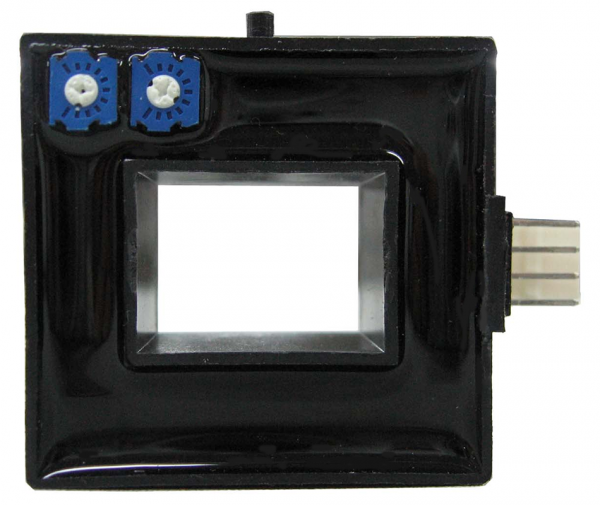

Open Loop Hall AC/DC Current Sensor CYHCS-N, Output: ±5V AC/DC, Power Supply: ±15 V DC, Window: 20,5x15,5mm

Open Loop Hall AC/DC Current Sensor CYHCS-N, Output: ±5V AC/DC, Power Supply: ±15 V DC, Window: 20,5x15,5mm
Quantity Unit price
until 4 € 18.48 *
from 5 € 16.80 *
from 10 € 15.28 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets
Description
This Hall Effect current sensor is based on open loop principle and designed with a high... more
Close menu
Open Loop Hall AC/DC Current Sensor CYHCS-N, Output: ±5V AC/DC, Power Supply: ±15 V DC, Window: 20,5x15,5mm

This Hall Effect current sensor is based on open loop principle and designed with a high galvanic isolation between primary conductor and secondary circuit. It can be used for measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.

Product Characteristics

  • Excellent accuracy
  • Very good linearity
  • Light in weight
  • Less power consumption
  • Window structure
  • Electrically isolating the output of the transducer from the current carrying conductor
  • No insertion loss
  • Current overload capability

Applications

  • Photovoltaic equipment
  • Frequency conversion timing equipment
  • Various power supply
  • Uninterruptible power supplies (UPS)
  • Electric welding machines
  • Transformer substation
  • Numerical controlled machine tools
  • Electric powered locomotive
  • Microcomputer monitoring
  • Electric power network monitoring
Technical Properties
more
Close menu
Nominal Input Current: 0-100A, 0-200A, 0-300A, 0-400A, 0-500A, 0-600A
Sensor Type: Open-Loop
Power Supply: ±15 V DC
Output Signal: ±5V AC/DC
Current Type: AC/DC
Window Type: Rectangle
Window Size (mm): 22 x 16
Direction: bidirectional
Accuracy: 1%
Linearity: 1%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: DC ~ 20kHz
Data Sheets
more
Close menu
Data sheets to download:
