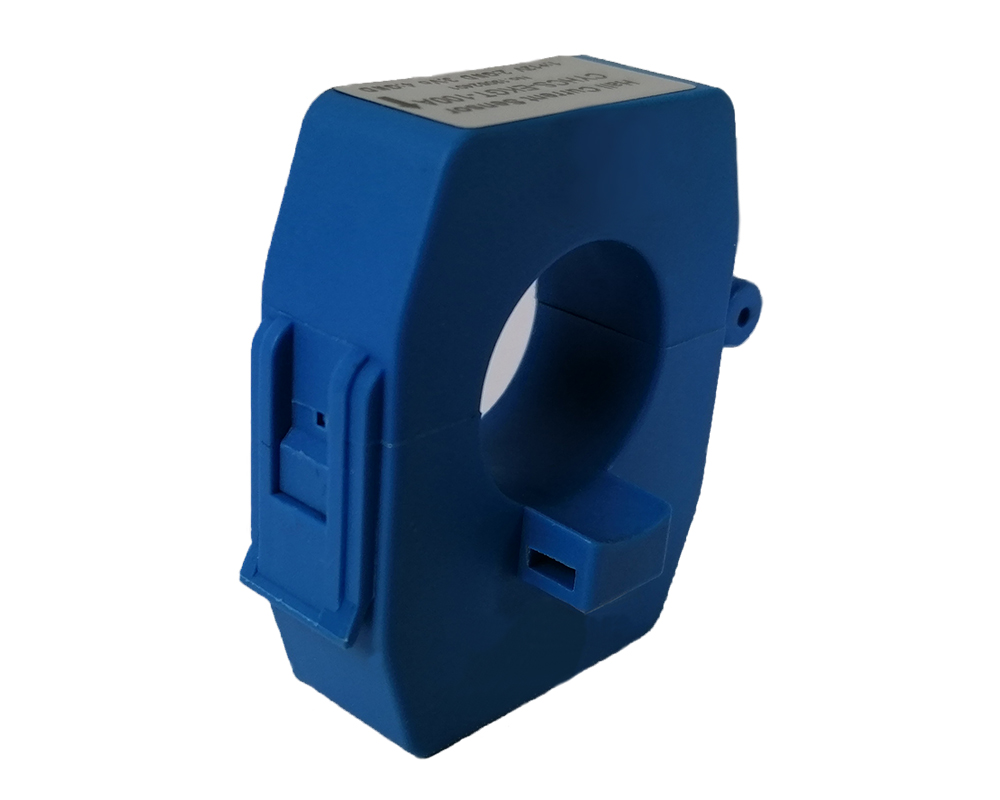

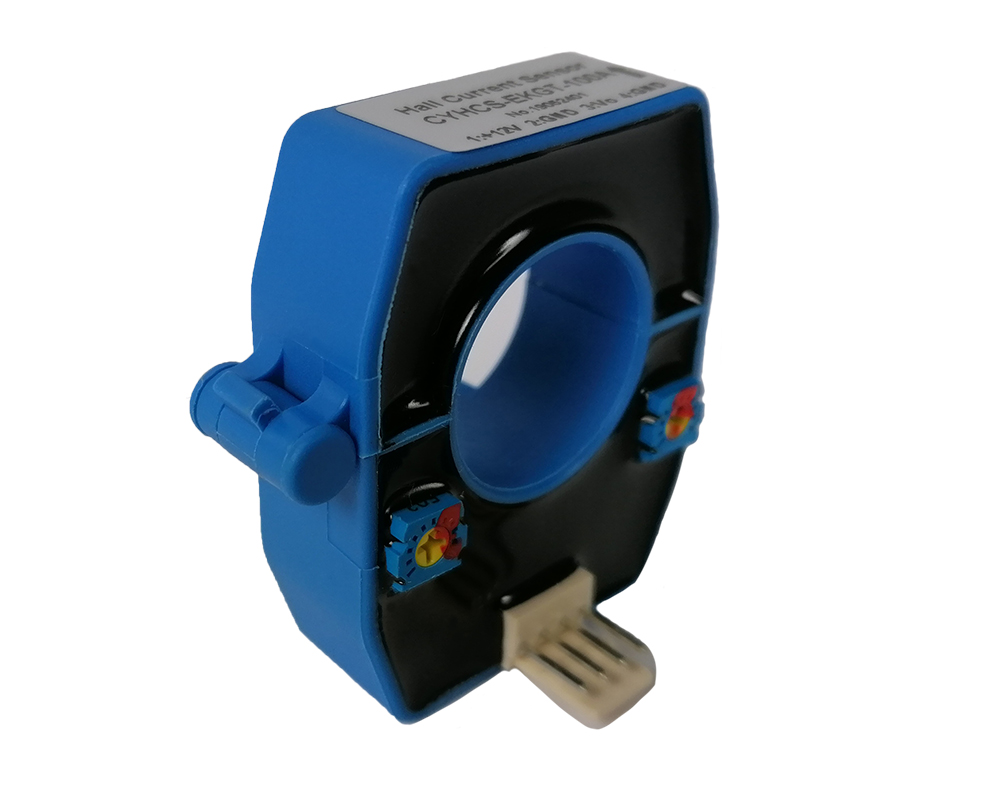

Split Core Hall Effect AC/DC Current Sensor CYHCS-EKGT, Output: 2,5 V DC ±2 V AC/DC , Power Supply: +12 V DC, Window: Ø 20,5 mm
Quantity | Unit price |
---|---|
until 4 | € 18.64 * |
from 5 | € 16.95 * |
from 10 | € 15.40 * |
Prices incl. VAT excl. Shipping Costs
Article not in stock, Delivery time 3-4 Weeks
- Article-Nr: CYHCS-EKGT-50A
- Serial-Nr: CYHCS-EKGT
- Request on this Article
- Data sheet download
- Data sheet download (Deutsch)
This Hall Effect current sensor is based on open-loop principle and designed with a split core... more
Split Core Hall Effect AC/DC Current Sensor CYHCS-EKGT, Output: 2,5 V DC ±2 V AC/DC , Power Supply: +12 V DC, Window: Ø 20,5 mm

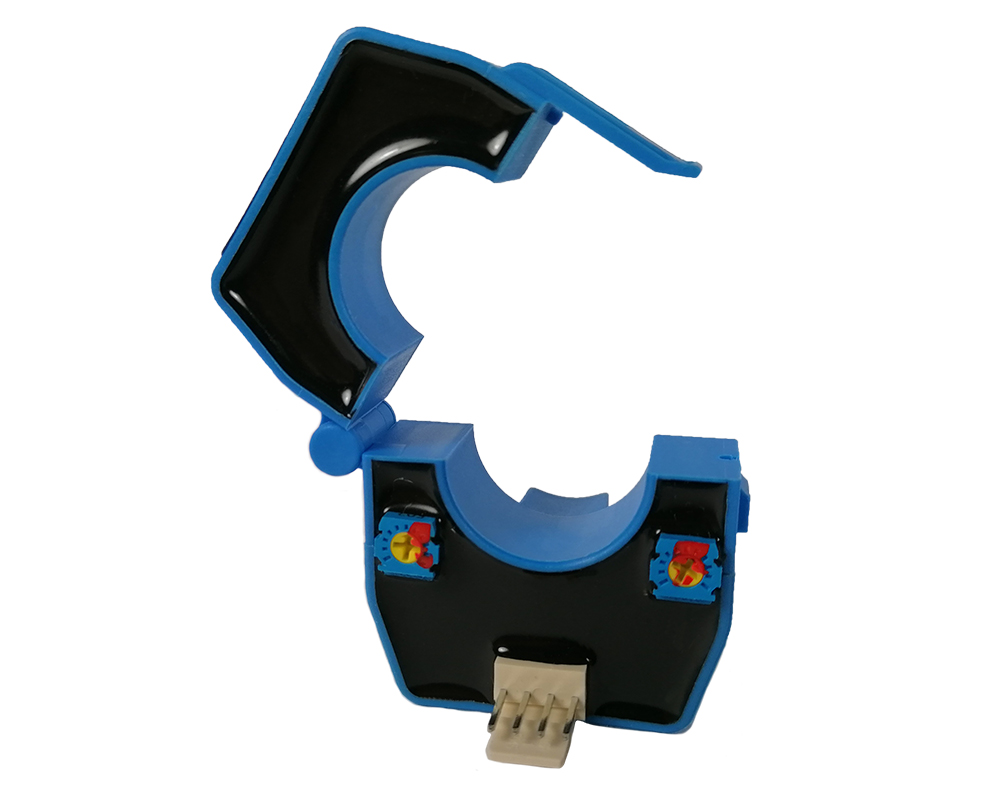

This Hall Effect current sensor is based on open-loop principle and designed with a split core and high galvanic isolation between the primary conductor and secondary circuit. It can be used for measurement of AC/DC current etc. The output of the transducer reflects the real wave of the current-carrying conductor. It can be mounted on the primary cable directly.
Product Characteristics:
- Excellent accuracy
- Very good linearity
- Light in weight
- Less power consumption
- Window structure, easily mounting
- Electrically isolating the output of the transducer from the current-carrying conductor
- No insertion loss
- Current overload capability
Applications:
- Photovoltaic equipment
- Frequency conversion timing equipment
- Various power supply
- Uninterruptible power supplies (UPS)
- Electric welding machines
- Numerical controlled machine tools
- Electrolyzing and electroplating equipment
- Electrically powered locomotive
- Microcomputer monitoring
- Electric power network monitoring
Nominal Input Current: | 0-50A, 0-100A, 0-200A, 0-300A, 0-400A, 0-500A |
Sensor Type: | Open-Loop |
Power Supply: | +12 V DC |
Output Signal: | +2,5 V ± 2 V AC/DC |
Current Type: | AC/DC |
Window Type: | Round |
Window Size (mm): | Ø 20,5 |
Direction: | bidirectional |
Accuracy: | 1% |
Linearity: | 1% |
Operating Temperature: | -25°C ~ +85°C |
Frequency Bandwith: | DC - 20 kHz |
