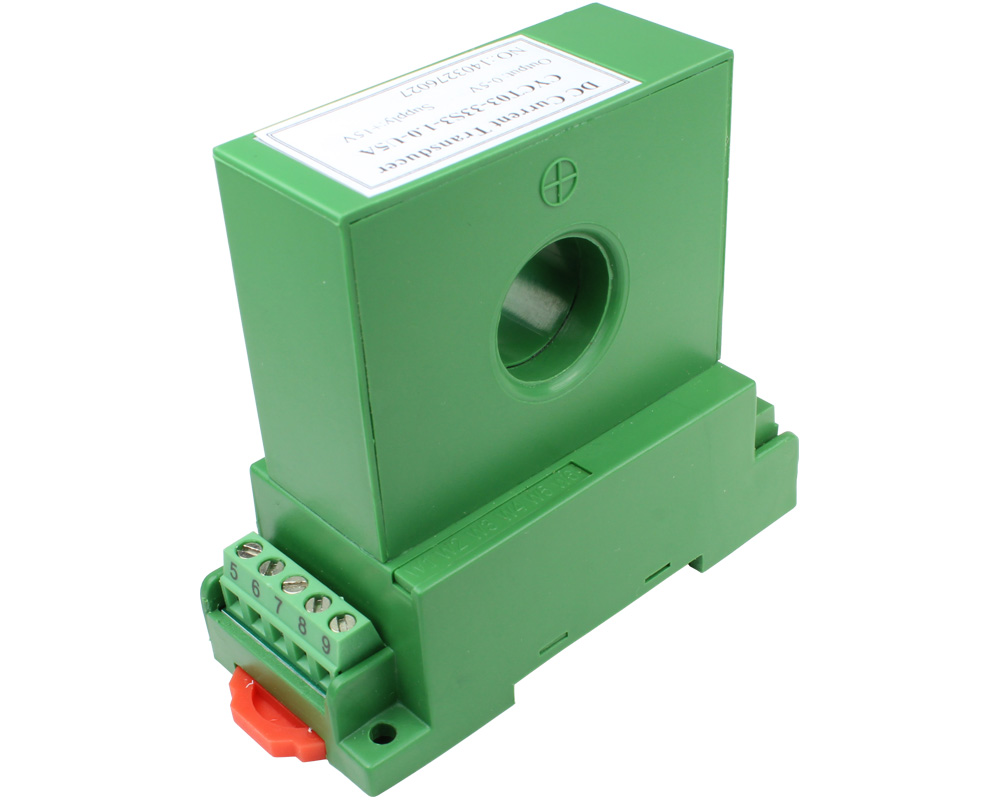

Unidirectional DC Current Sensor CYCT03-44S3, Output: 0-2 0mA DC, Power Supply: +24 V DC, Window: Ø 20 mm
| Quantity | Unit price |
|---|---|
| Until 4 |
€104.60
|
| From 5 |
€95.09
|
| From 10 |
€86.45
|
Article not in stock, delivery time 3-4 Weeks
Product information "Unidirectional DC Current Sensor CYCT03-44S3, Output: 0-2 0mA DC, Power Supply: +24 V DC, Window: Ø 20 mm"
The CYCT03-xnS3 DC current sensor/transducer works according Magnetic Modulation and is designed for applications to measurement and monitoring of DC current. The output signal (DC voltage or current) of this transducer is proportional to the input DC current. They are suitable for measurements and long time monitoring of DC currents and can applied to power supply management, DC motor drivers, battery chargers and systems etc.
| Accuracy: | 1% |
|---|---|
| Current Type: | DC |
| Direction: | unidirectional |
| Nominal Input Current: | 0-1A, 0-2A, 0-5A, 0-10A, 0-20A, 0-20mA, 0-30A, 0-50mA, 0-100mA, 0-200mA, 0-500mA |
| Operating Temperature: | -10°C ~ +60°C |
| Output Signal: | 0-20 mA DC |
| Power Supply: | +24 V DC |
| Response Time: | ≤100ms |
| Window Size (mm): | Ø 20 |
| Window Type: | Round |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
