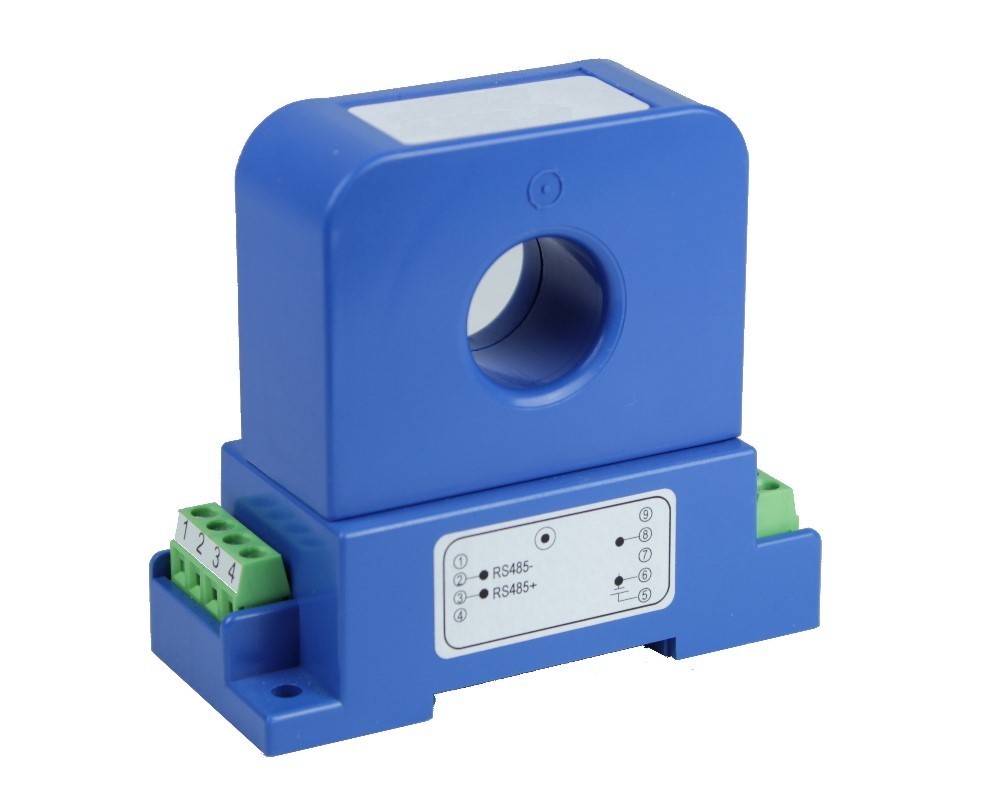

Unidirectional Digital DC Current Sensor CYCTD-S3; Digital Output: Current I; Analogue Output: 0-5V DC; Power Supply: +24 V DC; Interface: RS485 MODBUS; Window: Ø 20 mm
| Quantity | Unit price |
|---|---|
| Until 4 |
€157.88
|
| From 5 |
€143.95
|
| From 10 |
€131.95
|
Article not in stock, delivery time 3-4 Weeks
Product information "Unidirectional Digital DC Current Sensor CYCTD-S3; Digital Output: Current I; Analogue Output: 0-5V DC; Power Supply: +24 V DC; Interface: RS485 MODBUS; Window: Ø 20 mm"
The sensor CYCTD-S3 works according to Magnetic Modulation and is designed for applications as measurement and monitoring of DC current. The sensor has galvanic isolation between the high-power primary conductor and the secondary electronic circuit. The sensor has different analog and digital output signals under different power supplies. The data communication between the sensor and digital equipment can be realized directly through the interface RS-485 MODBUS.
Applications
- Photovoltaic equipment
- Battery banks, such as monitoring load current and charge current, verifying operation
- Transportation, measuring traction power
- Phase fired controlled heaters
- Directly connect to PLC
- Sense motor stalls and short circuits
- Industrial instrumentation
Features
- DC current measurement
- High measuring accuracy
- Analog and digital output signal (0-5V, 0- 10V, RS-485 Modbus)
- High isolation between primary and secondary circuits
- No insertion losses
- Temperature compensation
Information about product safety:
Manufacturer/ EU Responsible Person:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
| Accuracy: | 0.5% |
|---|---|
| Analogue Output Signal: | 0-5V DC |
| Baud Rate (bps): | 19.2K, 38.4K, 57.6K, 115.2K, 1200, 2400, 4800, 9600 (default) |
| Digital Outputs: | Current I |
| Interface: | RS485, MODBUS |
| Linearity: | ±0.2% |
| Nominal Input Current: | 0-1A, 0-2A, 0-3A, 0-5A, 0-10A, 0-15A, 0-20A, 0-25A, 0-500mA, 0-750mA |
| Operating Temperature: | -40°C ~ +85°C |
| Power Supply: | +24V DC |
| Window Size (mm): | Ø 20 |
| Window Type: | Round |
