Unidirectional Digital Split Core Hall Effect DC Current Sensor CYHCTD-S3K; Digital Output: Current I; Analogue Output: 0-5V DC; Power Supply: +12V DC; Interface: RS485 MODBUS; Window: Ø 20 mm
| Quantity | Unit price |
|---|---|
| Until 4 |
€136.75
|
| From 5 |
€124.77
|
| From 10 |
€114.57
|
Article not in stock, delivery time 3-4 Weeks
Product information "Unidirectional Digital Split Core Hall Effect DC Current Sensor CYHCTD-S3K; Digital Output: Current I; Analogue Output: 0-5V DC; Power Supply: +12V DC; Interface: RS485 MODBUS; Window: Ø 20 mm"

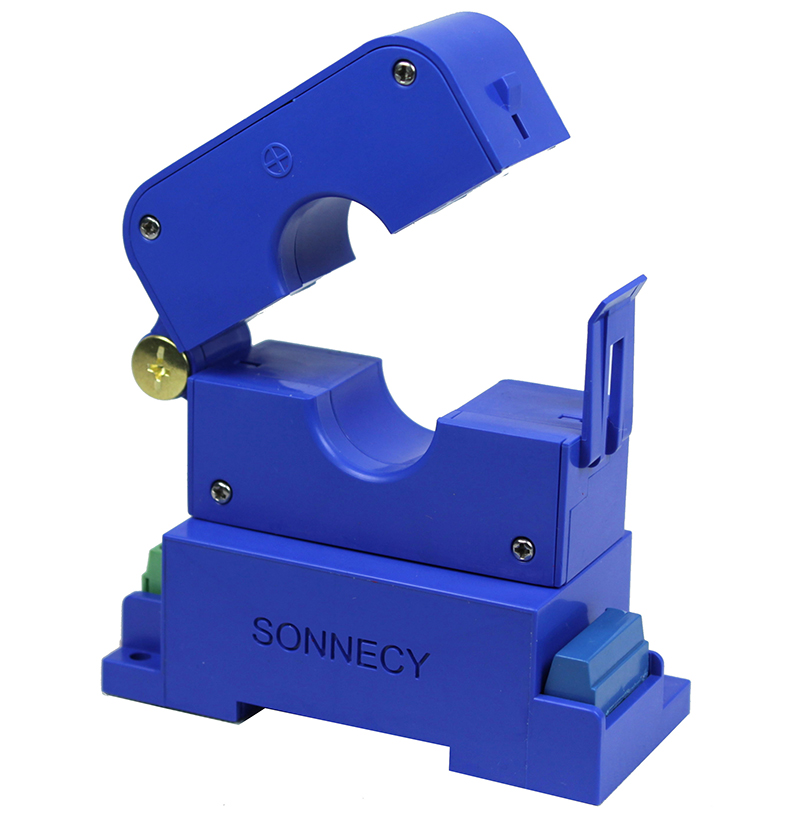

The sensor CYHCTD-S3K is a Hall Effect current sensor for the measurement of DC current. The sensor has galvanic isolation between the high-power primary conductor and the secondary electronic circuit. The sensor has different analog and digital output signals under different power supplies. The data communication between the sensor and digital equipment can be realized directly through the interface RS-485 MODBUS.
Applications
- Photovoltaic equipment
- Battery banks, such as, monitoring load current and charge current, verifying operation
- Transportation, measuring traction power
- Phase fired controlled heaters
- Directly connect to PLC
- Sense motor stalls and short circuits
- Industrial instrumentation
Features and Advantages
- DC current measurement
- High measuring accuracy
- Analog and digital output signal (0-5V, 0- 10V, RS-485 Modbus)
- Split Core, easy installation
- Protection against overvoltage
- Protection against reversed polarity
- Output protection against electrical disturbances
Information about product safety:
Manufacturer/ EU Responsible Person:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
| Accuracy: | 0.5%, 1,0% |
|---|---|
| Analogue Output Signal: | 0-5V DC |
| Baud Rate (bps): | 19.2K, 38.4K, 57.6K, 115.2K, 1200, 2400, 4800, 9600 (default) |
| Digital Outputs: | Current I |
| Interface: | RS485, MODBUS |
| Linearity: | 0,2%, 0,5% |
| Nominal Input Current: | 0-25A, 0-30A, 0-40A, 0-50A, 0-60A, 0-70A, 0-80A, 0-90A, 0-100A, 0-200A, 0-300A, 0-400A, 0-500A |
| Operating Temperature: | -40°C ~ +85°C |
| Power Supply: | +12V DC |
| Window Size (mm): | Ø 20 |
| Window Type: | Round |
