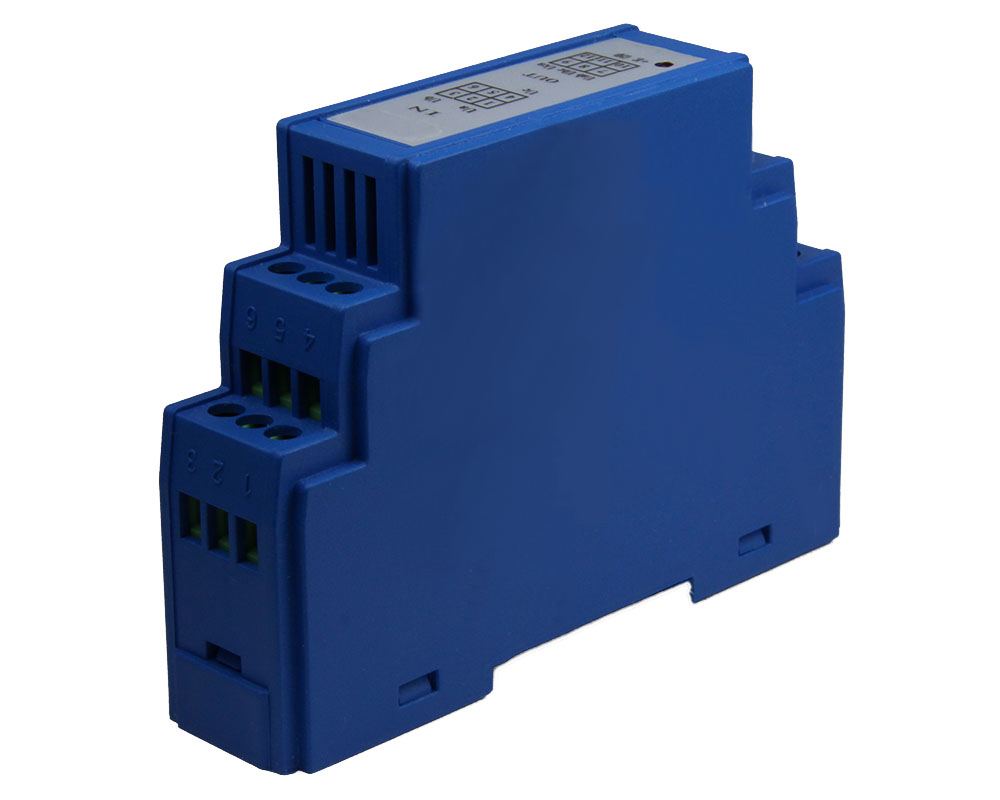

3-Phase 4-Wire AC Voltage Sensor CYVS14-42U0, Output: 0-20 mA DC, Power Supply: +12 V DC
| Quantity | Unit price |
|---|---|
| Until 4 |
€126.74
|
| From 5 |
€115.22
|
| From 10 |
€104.73
|
Article not in stock, delivery time 3-4 Weeks
Product information "3-Phase 4-Wire AC Voltage Sensor CYVS14-42U0, Output: 0-20 mA DC, Power Supply: +12 V DC"
The CYVS14-42U0 AC Voltage Sensor/Transducer works according to electromagnetic induction and is designed for applications to measurement and monitoring of 3-Phase 4-Wire AC voltage. The output signals (DC voltage or current) of this transducer are proportional to the rectified average value of input AC voltages. They are suitable for general applications such as fixed frequency voltage supplies and sinusoid voltages etc.
Information about product safety:
Manufacturer/ EU Responsible Person:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
| Accuracy: | 0.5% |
|---|---|
| Current Type: | AC |
| Input Voltage Range: | 0-10V AC, 0-100V AC, 0-200V AC, 0-300V AC, 0-400V AC, 0-500V AC |
| Isolation voltage: | 2.5 kV DC, 1min |
| Operating Temperature: | -10°C ~ +60°C |
| Output Signal: | 0-20mA DC |
| Power Supply: | +12V DC |
| Response Time: | ≤300ms |
| Thermal drift: | 350ppm/°C |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
