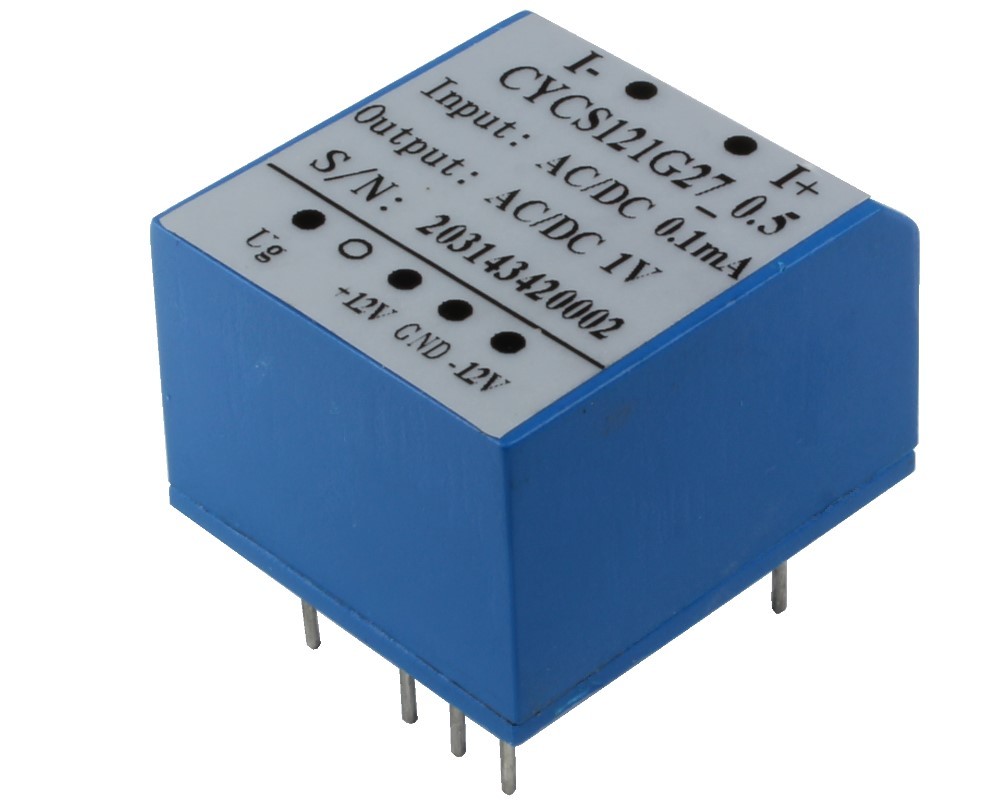

AC/DC Current Sensor CYCS121G27, Output: instantaneous voltage 0-1 V AC/DC, Power Supply: ±12 V DC

Preview: AC/DC Current Sensor CYCS121G27, Output: instantaneous voltage 0-1 V AC/DC, Power Supply: ±12 V DC Preview: AC/DC Current Sensor CYCS121G27, Output: instantaneous voltage 0-1 V AC/DC, Power Supply: ±12 V DC
AC/DC Current Sensor CYCS121G27, Output: instantaneous voltage 0-1 V AC/DC, Power Supply: ±12 V DC
AC/DC Current Sensor CYCS121G27, Output: instantaneous voltage 0-1 V AC/DC, Power Supply: ±12 V DC

Quantity Unit price
until 4 € 62.93 *
from 5 € 57.20 *
from 10 € 52.00 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 1 pieces (3-4 weeks if more)

Description Technical Properties Data Sheets
Description
The CYCS121G27 AC/DC current Sensor/Transducer works according to photoelectric isolation... more
Close menu
AC/DC Current Sensor CYCS121G27, Output: instantaneous voltage 0-1 V AC/DC, Power Supply: ±12 V DC

The CYCS121G27 AC/DC current Sensor/Transducer works according to photoelectric isolation principle and is designed for applications to measurement and monitoring of small AC/DC current. The output signal of this transducer is proportional to input current. They are suitable for measurements and long time monitoring of AC/DC currents etc.

Characteristics

  • high measuring accuracy
  • high reliability
  • low thermal drift
  • low current consumption
  • small size, PCB mounting etc
Technical Properties
more
Close menu
Current Type: AC/DC
Window Type: No Window
Direction: bidirectional
Operating Temperature: -10°C ~ +70°C
Output Signal: instantaneous voltage 0-1V AC/DC
Response Time: ≤45µs
Power Supply: ±12 V DC
Nominal Input Current: 0-0.1mA
Accuracy: 0.5%
Data Sheets
more
Close menu
Data sheets to download:
