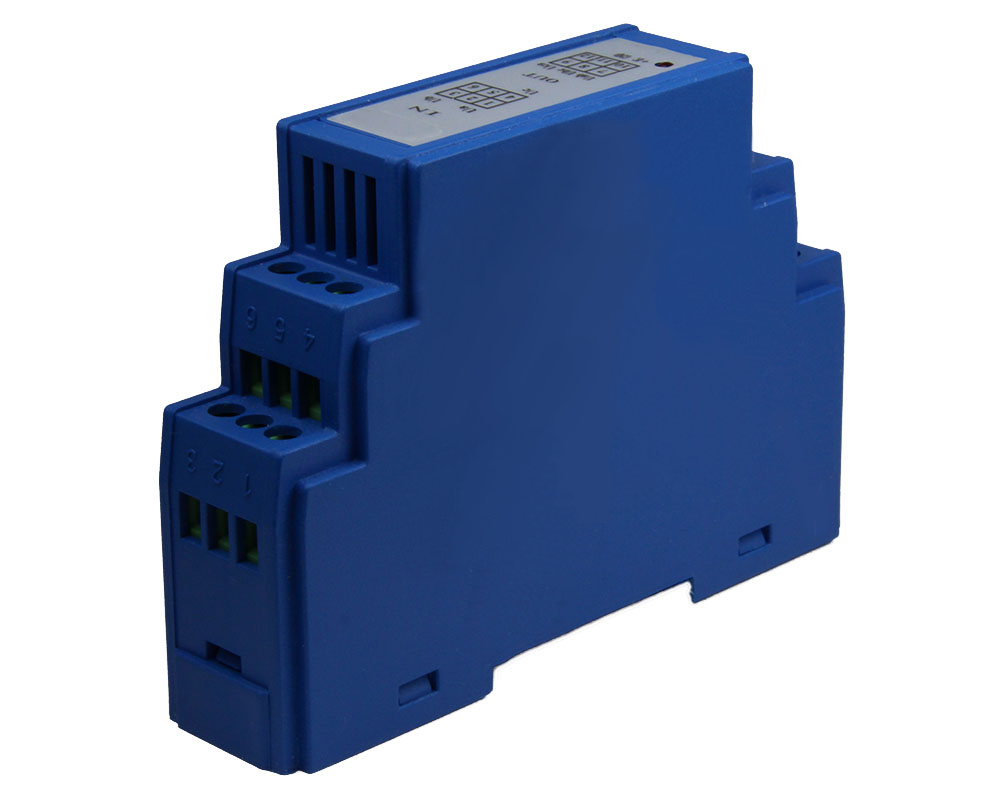

AC Voltage Sensor CYVS11-52U0, Output: 4-20 mA DC, Power Supply: +12 V DC
| Quantity | Unit price |
|---|---|
| Until 4 |
€60.34
|
| From 5 |
€54.86
|
| From 10 |
€49.87
|
Article not in stock, delivery time 3-4 Weeks
Product information "AC Voltage Sensor CYVS11-52U0, Output: 4-20 mA DC, Power Supply: +12 V DC"
The CYVS11-52U0 AC voltage sensor/transducer works according to Electromagnetic Induction and is designed for applications to measurement and monitoring of AC voltage. The output signal (DC voltage or current) of this transducer is proportional to the input AC voltage. They are suitable for measurements and long-time monitoring of AC voltages and can be applied to power supply management, AC motor drivers, battery chargers, and systems, etc.
Information about product safety:
Manufacturer/ EU Responsible Person:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
| Accuracy: | 0.5% |
|---|---|
| Current Type: | AC |
| Input Voltage Range: | 0-10V AC, 0-100V AC, 0-200V AC, 0-300V AC, 0-400V AC, 0-500V AC, 0-600V AC, 0-700V AC, 0-800V AC, 0-900V AC, 0-1000V AC |
| Isolation voltage: | 2.5 kV DC, 1min |
| Operating Temperature: | -10°C ~ +60°C |
| Output Signal: | 4-20mA DC |
| Power Supply: | +12V DC |
| Response Time: | ≤300ms |
| Thermal drift: | 300 ppm/°C |
