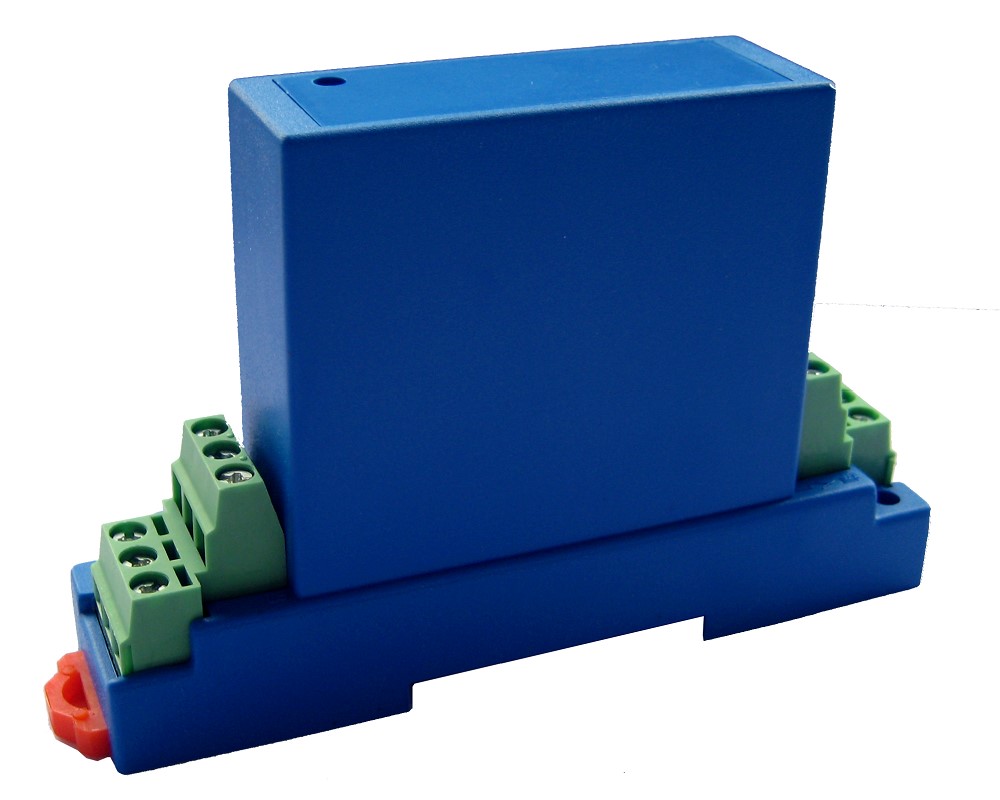

Bidirectional DC Voltage Sensor CYVT03-84S0, Output: 5 V ±5 V DC, Power Supply: +24 V DC
| Quantity | Unit price |
|---|---|
| Until 4 |
€90.52
|
| From 5 |
€82.29
|
| From 10 |
€74.82
|
Article not in stock, delivery time 3-4 Weeks
Product information "Bidirectional DC Voltage Sensor CYVT03-84S0, Output: 5 V ±5 V DC, Power Supply: +24 V DC"
The CYVT03-84S0 DC voltage sensor/transducer works according to Frequency Modulation and Photoelectrical Isolation principle and is designed for applications to measurement and monitoring of DC voltage. The output voltage and current of this transducer are proportional to the input voltage. They are suitable for measurements and longtime monitoring of DC voltages and can apply to power supply management, motor drivers, battery chargers and systems, etc.
Information about product safety:
Manufacturer/ EU Responsible Person:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
| Accuracy: | 0,2% |
|---|---|
| Current Type: | DC |
| Direction: | bidirectional |
| Input Voltage Range: | 0-3V DC, 0-50V DC, 0-75mV DC, 0-100V DC, 0-250V DC, 0-300V DC, 0-500V DC |
| Isolation voltage: | 2.5 kV DC, 1min |
| Operating Temperature: | -25°C ~ +70°C |
| Output Signal: | 5V±5V DC |
| Power Supply: | +24V DC |
| Response Time: | ≤15µs |
| Thermal drift: | 160ppm/°C |
