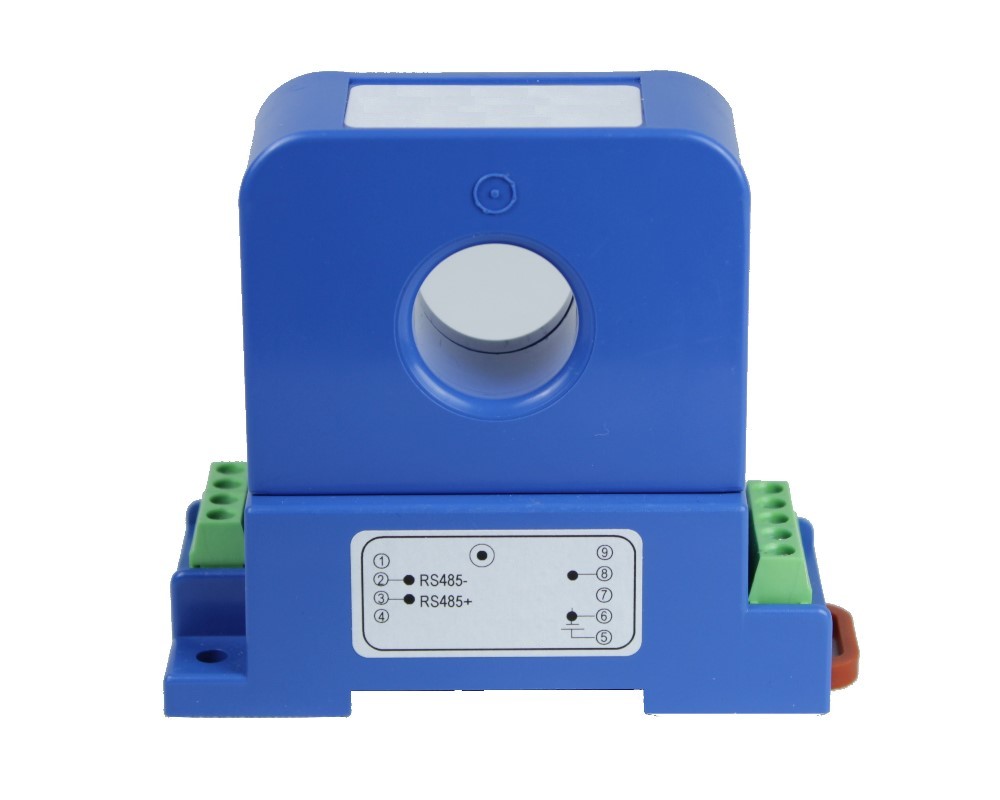

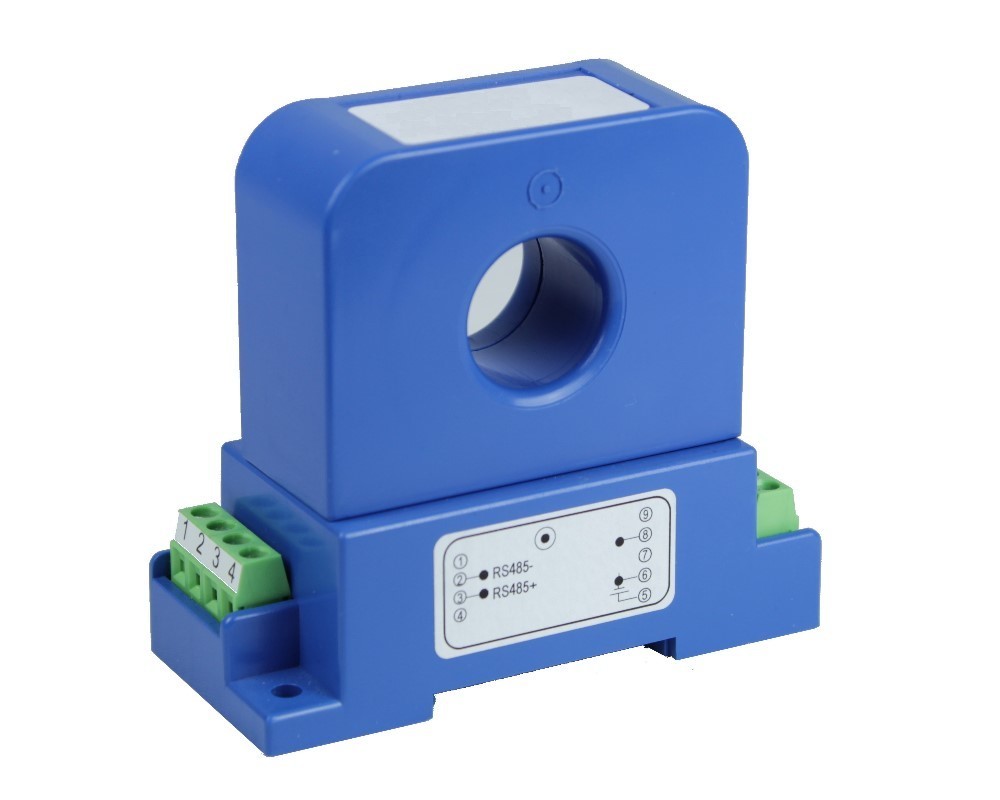

The sensor CYCTD-S3 works according to Magnetic Modulation and is designed for applications as measurement and monitoring of DC current. The sensor has galvanic isolation between the high-power primary conductor and the secondary electronic circuit. The sensor has different analog and digital output signals under different power supplies. The data communication between the sensor and digital equipment can be realized directly through the interface RS-485 MODBUS.
|Nominal Input Current:||0-500mA, 0-750mA, 0-1A, 0-2A, 0-3A, 0-5A, 0-10A, 0-15A, 0-20A, 0-25A|
|Power Supply:||+12V DC|
|Analogue Output Signal:||0-10V DC|
|Digital Outputs:||Current I|
|Baud Rate (bps):||1200, 2400, 4800, 9600 (default), 19.2K, 38.4K, 57.6K, 115.2K|
|Window Size (mm):||Ø 20|
|Operating Temperature:||-40°C ~ +85°C|
