Bidirectional Digital Split Core Hall Effect DC/ AC Current Sensor CYHCD-S3K; Digital Output: Current I, Frequency F; Analogue Output: 2.5VDC±2.5VAC; Power Supply: +15V DC; Interface: RS485 MODBUS; Window: Ø 20 mm
Quantity | Unit price |
---|---|
until 4 | € 161.36 * |
from 5 | € 147.23 * |
from 10 | € 135.20 * |
Prices incl. VAT excl. Shipping Costs
Article not in stock, Delivery time 3-4 Weeks
- Article-Nr: CYHCD-S3K-B25A-333
- Serial-Nr: CYHCD-S3K
- Request on this Article
- Data sheet download
The sensor CYHCD-S3K is a Hall Effect current sensor for the measurement of DC/AC current. The... more

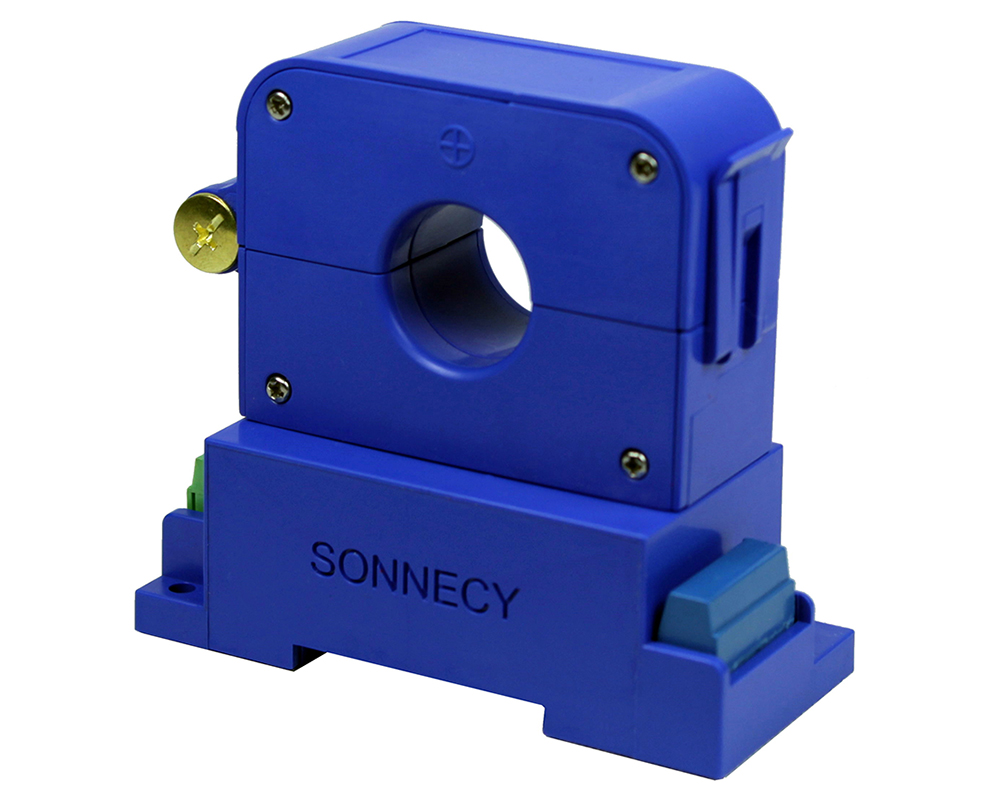

Bidirectional Digital Split Core Hall Effect DC/ AC Current Sensor CYHCD-S3K; Digital Output: Current I, Frequency F; Analogue Output: 2.5VDC±2.5VAC; Power Supply: +15V DC; Interface: RS485 MODBUS; Window: Ø 20 mm
The sensor CYHCD-S3K is a Hall Effect current sensor for the measurement of DC/AC current. The sensor has galvanic isolation between the high-power primary conductor and the secondary electronic circuit. The sensor has analog and different digital output signals under different power supplies. The data communication between the sensor and digital equipment can be realized directly through the interface RS-485 MODBUS.
Applications
- Photovoltaic equipment
- Battery banks, such as monitoring load current and charge current, verifying operation
- Transportation, measuring traction power
- Phase fired controlled heaters
- Directly connect to PLC
- Sense motor stalls and short circuits
- Industrial instrumentation
Features
- DC/AC current measurement
- High measuring accuracy
- Analog output voltage 2.5VDC±2.5VAC, 5VDC±5VAC
- Digital outputs (RS-485 Modbus)

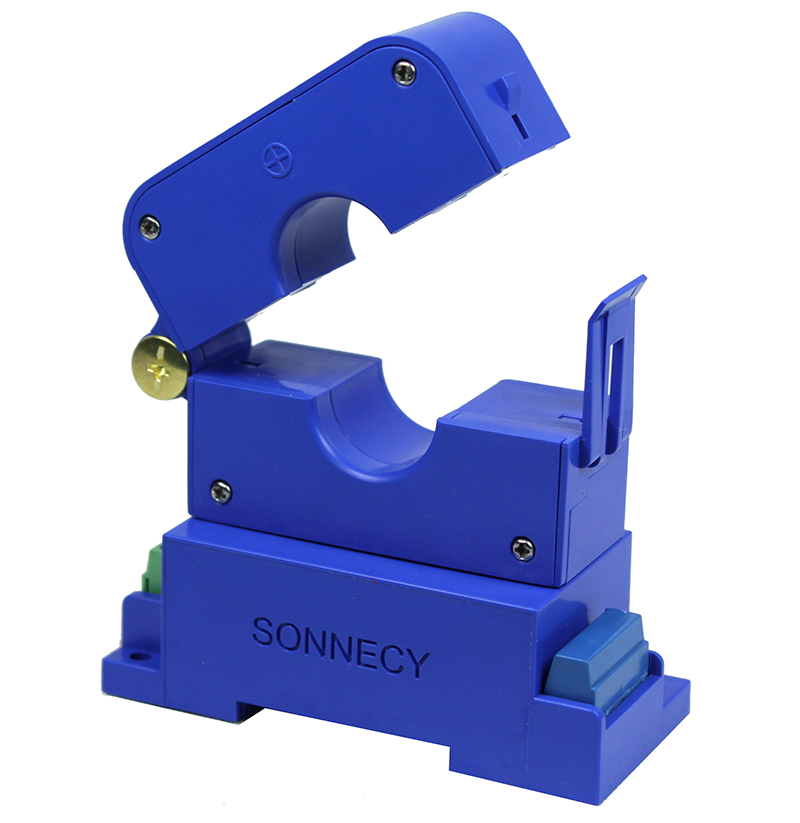

- Split Core, easy installation
- Protection against overvoltage
- Protection against reversed polarity
- Output protection against electrical disturbances
Nominal Input Current: | 0-25A, 0-30A, 0-40A, 0-50A, 0-60A, 0-70A, 0-80A, 0-90A, 0-100A, 0-200A, 0-300A, 0-400A, 0-500A |
Power Supply: | +15V DC |
Analogue Output Signal: | 2.5V DC ± 2.5V AC |
Digital Outputs: | Current I, Frequency F |
Interface: | RS485, MODBUS |
Baud Rate (bps): | 1200, 2400, 4800, 9600 (default), 19.2K, 38.4K, 57.6K, 115.2K |
Linearity: | 0,2%, 0,5% |
Accuracy: | 0,5%, 1,0% |
Window Type: | Round |
Window Size (mm): | Ø 20 |
Operating Temperature: | -40°C ~ +85°C |
