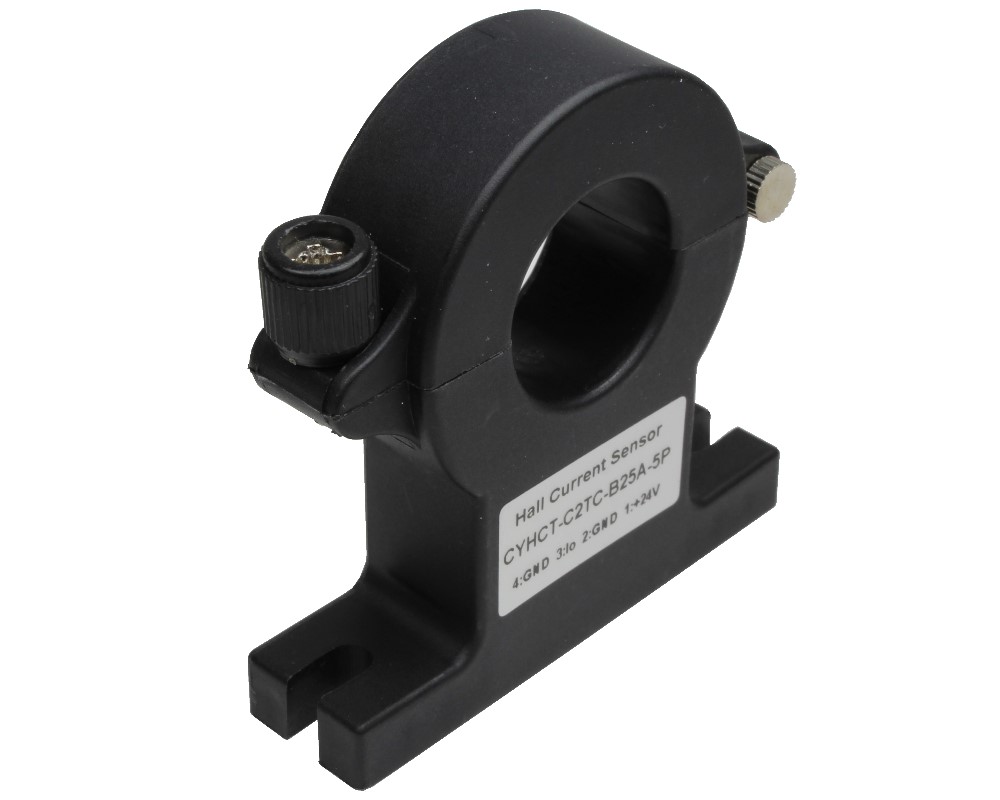

Bidirectional Split Core Hall Effect DC Current Sensor CYHCT-C2TC, Output: 4-20 mA DC, Power Supply: +24 V DC, Window: Ø 21 mm, Connector: Phoenix
| Quantity | Unit price |
|---|---|
| Until 4 |
€44.47
|
| From 5 |
€40.42
|
| From 10 |
€36.75
|
Shipping ready, delivery time 1-3 workdays
for quantities up to 1 pieces,
delivery time 3-4 weeks for more
Product information "Bidirectional Split Core Hall Effect DC Current Sensor CYHCT-C2TC, Output: 4-20 mA DC, Power Supply: +24 V DC, Window: Ø 21 mm, Connector: Phoenix"
This Hall Effect current sensor is based on open loop principle and designed with a split core and a high galvanic isolation between primary and secondary circuits. It can be used for measurement of DC current etc. The output of the transducer reflects the real wave of the current carrying conductor.
If the sensors offered don't have the input current which you require, contact us via our Contact Form.
Characteristics
- Excellent accuracy
- Very good linearity
- Using split cores and easy mounting
- Less power consumption
- Window structure
- Electrically isolating the output of the transducer from the current carrying conductor
- No insertion loss
- Current overload capability
Applications
- Photovoltaic equipment
- Frequency conversion timing equipment
- Various power supply
- Uninterruptible power supplies (UPS)
- Electric welding machines
- Transformer substation
- Numerical controlled machine tools
- Electric powered locomotive
- Microcomputer monitoring
- Electric power network monitoring
| Accuracy: | 1% |
|---|---|
| Current Type: | DC |
| Direction: | bidirectional |
| Frequency Bandwith: | DC ~ 20kHz |
| Linearity: | 1% |
| Nominal Input Current: | 0-25A, 0-30A, 0-40A, 0-50A, 0-100A, 0-200A, 0-300A, 0-400A, 0-500A, 0-600A |
| Operating Temperature: | -25°C ~ +85°C |
| Output Signal: | 4-20 mA DC |
| Power Supply: | +24 V DC |
| Sensor Type: | Open-Loop |
| Window Size (mm): | Ø 21 |
| Window Type: | Round |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
