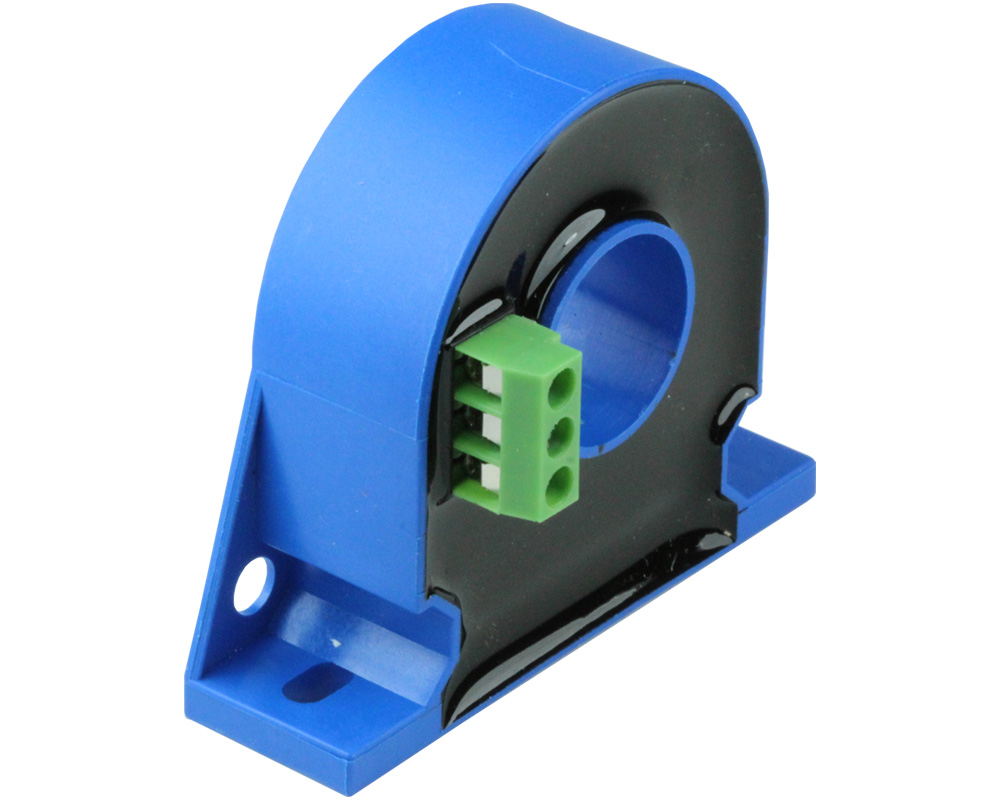

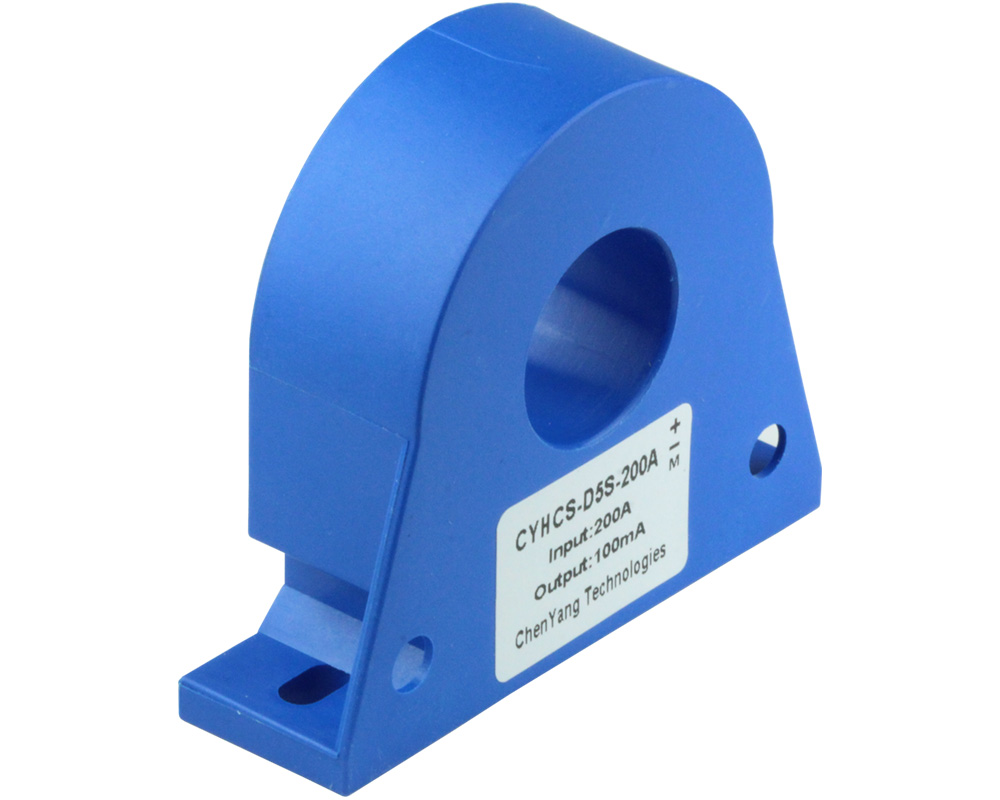

Closed Loop Hall Effect AC/DC Current Sensor CYHCS-D5S, Output: 50 mA-100 mA AC/DC, Power Supply: ±12 V ~ ±18 V DC, Window: Ø 20 mm, Connector: Screw
Quantity | Unit price |
---|---|
until 4 | € 21.25 * |
from 5 | € 19.31 * |
from 10 | € 17.56 * |
Prices incl. VAT excl. Shipping Costs
Ready for shipping, delivery time 1-3 workdays
- Article-Nr: CYHCS-D5S-100A
- Serial-Nr: CYHCS-D5
- Request on this Article
- Data Sheet Download
- Data Sheet Download /German)
This Hall Effect current sensor is based on closed loop compensating principle and designed with... more
Closed Loop Hall Effect AC/DC Current Sensor CYHCS-D5S, Output: 50 mA-100 mA AC/DC, Power Supply: ±12 V ~ ±18 V DC, Window: Ø 20 mm, Connector: Screw
This Hall Effect current sensor is based on closed loop compensating principle and designed with a high galvanic isolation between primary conductor and secondary circuit. It can be used for measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.
Product Characteristics
- Excellent accuracy
- Very good linearity
- Small size and encapsulated
- Less power consumption
- Current overload capability
Applications
- Photovoltaic equipment
- General Purpose Inverters
- AC/DC Variable Speed Drivers
- Battery Supplied Applications
- Uninterruptible Power Supplies
- Switched Mode Power Supplies
Nominal Input Current: | 0-100A, 0-200A, 0-300A |
Sensor Type: | Closed-Loop |
Power Supply: | ±12V ~ ±18V DC |
Output Signal: | ±50 mA AC/DC, ±100 mA AC/DC, ±150 mA AC/DC |
Current Type: | AC/DC |
Window Type: | Round |
Window Size (mm): | Ø 20 |
Direction: | bidirectional |
Accuracy: | 0,5% |
Linearity: | 0.1% |
Operating Temperature: | -25°C ~ +85°C |
Frequency Bandwith: | DC ~ 100kHz |
