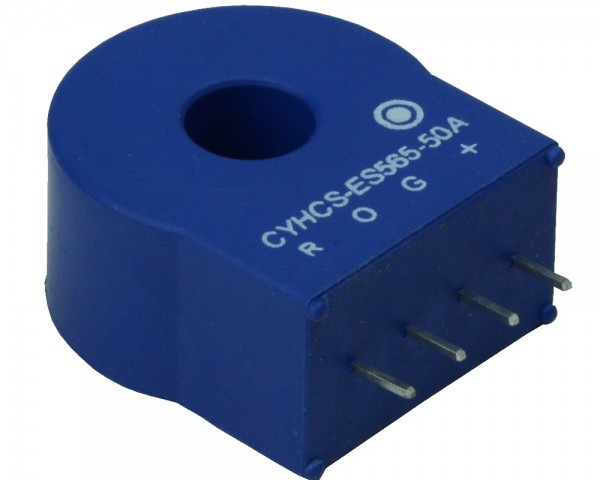

Closed Loop Hall Effect AC/DC Current Sensor CYHCS-ES565, Output: +2.5 V DC ±0.625 V AC/DC, Power Supply: +5 V DC, Window: Ø 8.5 mm

Closed Loop Hall Effect AC/DC Current Sensor CYHCS-ES565, Output: +2.5 V DC ±0.625 V AC/DC, Power Supply: +5 V DC, Window: Ø 8.5 mm
Quantity Unit price
until 4 € 30.38 *
from 5 € 27.62 *
from 10 € 25.11 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 1 pieces (3-4 weeks if more)

Nominal Input Current:

This Hall Effect current sensor is based on the closed loop compensating principle and designed... more
Closed Loop Hall Effect AC/DC Current Sensor CYHCS-ES565, Output: +2.5 V DC ±0.625 V AC/DC, Power Supply: +5 V DC, Window: Ø 8.5 mm

This Hall Effect current sensor is based on the closed loop compensating principle and designed with a high galvanic isolation between primary conductor and secondary circuit. It can be used for measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.

 Product Characteristics

  • Excellent accuracy
  • Very good linearity
  • Small size and encapsulated
  • Less power consumption
  • Current overload capability

Applications

  • Photovoltaic equipment
  • General Purpose Inverters
  • AC/DC Variable Speed Drivers
  • Battery Supplied Applications
  • Uninterruptible Power Supplies
  • Switched Mode Power Supplies
Nominal Input Current: 0-10A, 0-25A, 0-50A, 0-75A, 0-100A
Sensor Type: Closed-Loop
Power Supply: +5 V DC
Output Signal: +2.5 V ± 0.625 V AC/DC
Current Type: AC/DC
Window Type: Round
Window Size (mm): Ø 8.5
Direction: bidirectional
Accuracy: 0,5%
Linearity: 0.1%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: DC ~ 200kHz
