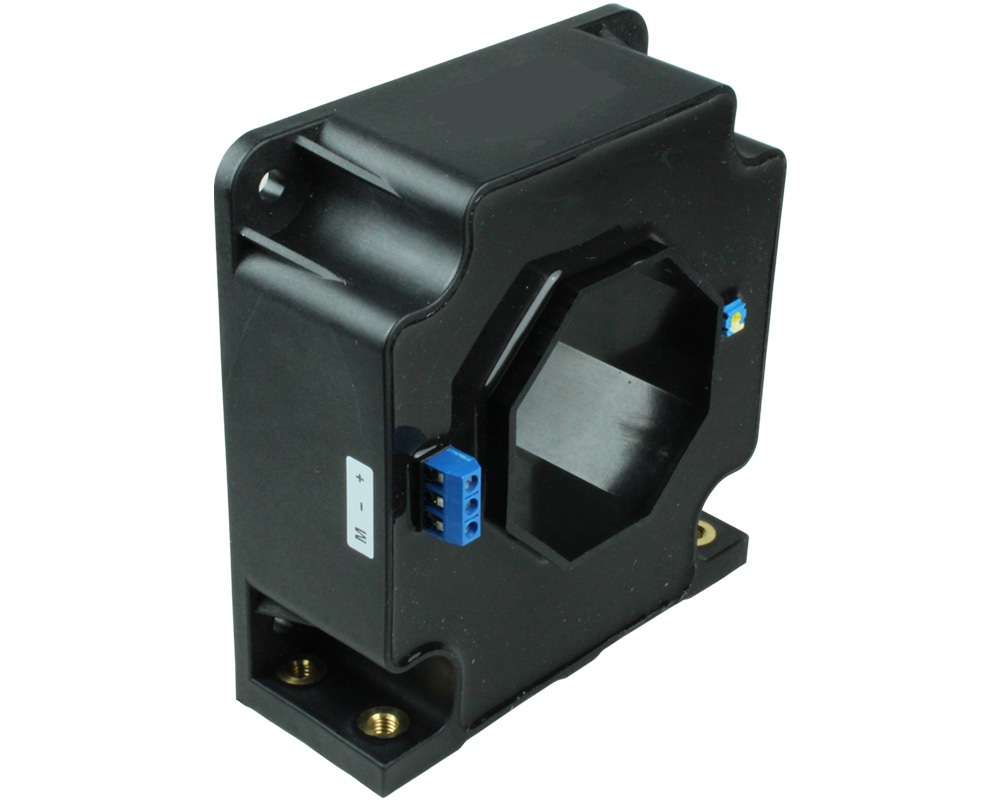

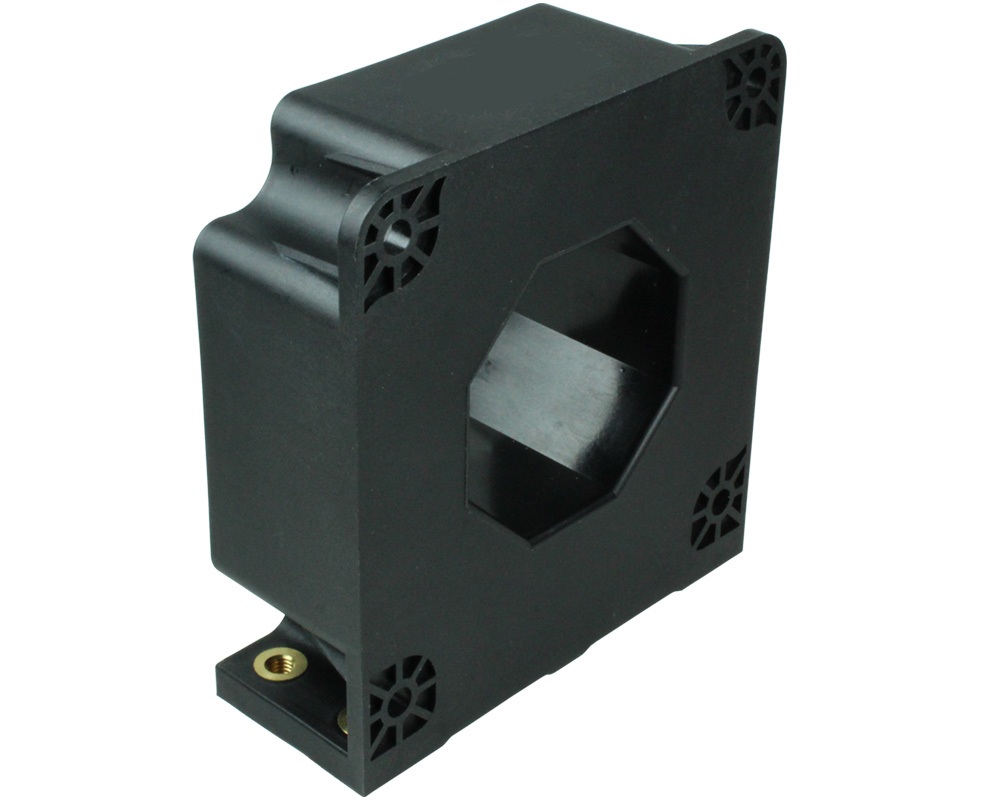

Closed Loop Precise AC/DC Hall Current Sensor CYHCS-LF-X

Preview: Closed Loop Precise AC/DC Hall Current Sensor CYHCS-LF-X Preview: Closed Loop Precise AC/DC Hall Current Sensor CYHCS-LF-X
Closed Loop Precise AC/DC Hall Current Sensor CYHCS-LF-X
Closed Loop Precise AC/DC Hall Current Sensor CYHCS-LF-X

Quantity Unit price
until 4 € 217.50 *
from 5 € 207.32 *
from 10 € 197.61 *
from 50 € 185.49 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 45 pieces (3-4 weeks if more)

Nominal Input Current:

Output Signal:

Description Technical Properties Data Sheets Product Safety Information
Description
This Hall Effect current sensor is based on closed loop compensation principle and can be used... more
Close menu
Closed Loop Precise AC/DC Hall Current Sensor CYHCS-LF-X

This Hall Effect current sensor is based on closed loop compensation principle and can be used for accurate measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.

Product Characteristics

  • Excellent accuracy
  • Very good linearity
  • Various kinds of output signals
  • Window structure and encapsulated
  • Large current measuring range
  • High current overload capability

Applications

  • Photovoltaic equipment
  • General Purpose Inverters
  • AC/DC Variable Speed Drivers
  • Battery Supplied Applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies
Technical Properties
more
Close menu
Nominal Input Current: 0-500A, 0-1000A, 0-2000A
Sensor Type: Closed-Loop
Power Supply: ±15V ~ ±24V DC
Output Signal: ±4V AC/DC, ±20 mA AC/DC, ±40mA AC/DC, ±5V AC/DC
Current Type: AC/DC
Window Type: Round
Window Size (mm): Ø 60.5
Direction: bidirectional
Accuracy: 0,2%
Linearity: 0.1%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: DC ~ 150kHz
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
