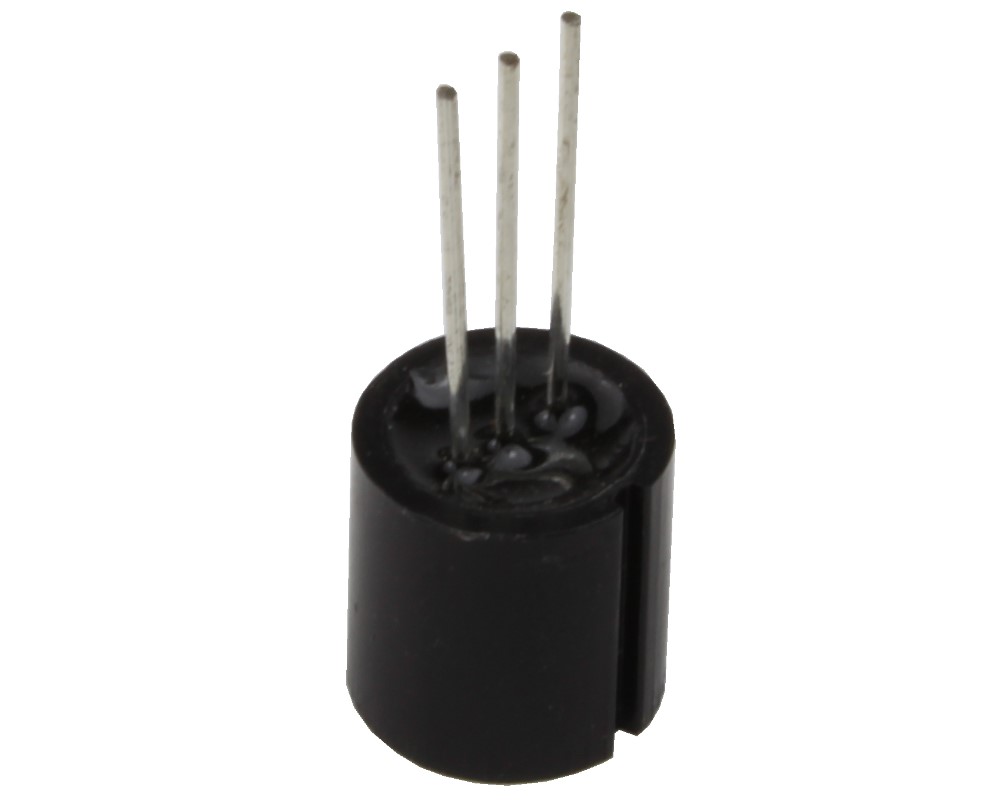

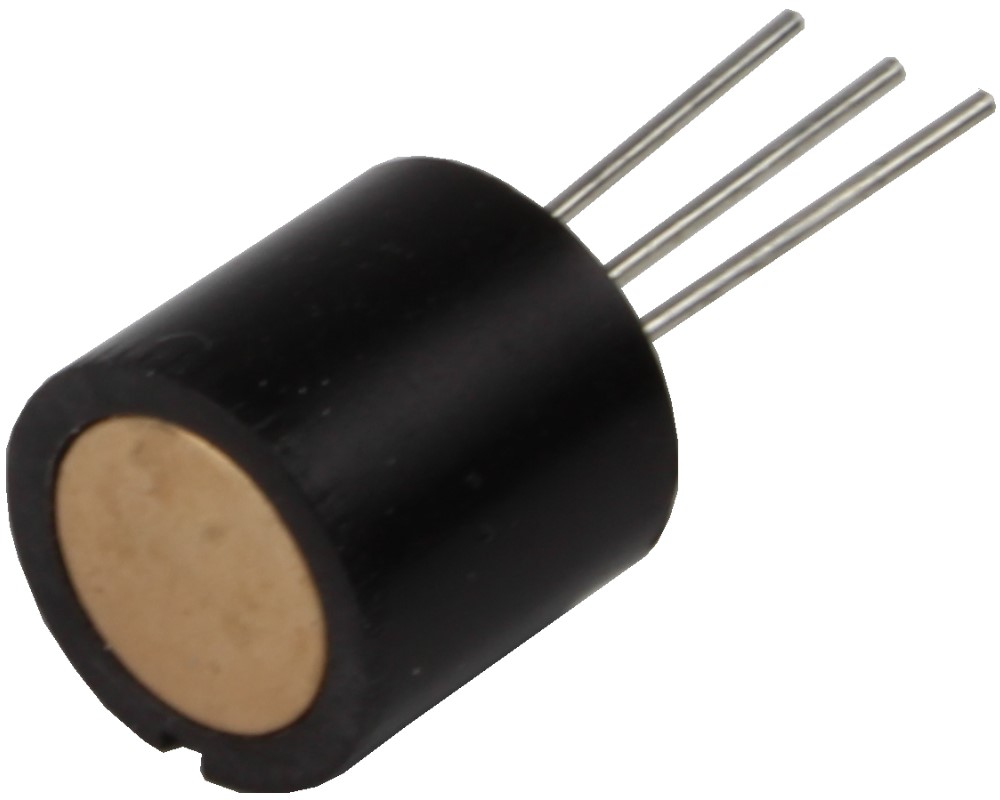

Differential Magnetoresistive Sensor CY-DMR-01H-B, Power Supply: 5 V DC, Output: Single output, Alternative for: FP210D250-22(Siemens/Infineon)

Preview: Differential Magnetoresistive Sensor CY-DMR-01H-B, Power Supply: 5 V DC, Output: Single output, Alternative for: FP210D250-22(Siemens/Infineon) Preview: Differential Magnetoresistive Sensor CY-DMR-01H-B, Power Supply: 5 V DC, Output: Single output, Alternative for: FP210D250-22(Siemens/Infineon)
Differential Magnetoresistive Sensor CY-DMR-01H-B, Power Supply: 5 V DC, Output: Single output, Alternative for: FP210D250-22(Siemens/Infineon)
Differential Magnetoresistive Sensor CY-DMR-01H-B, Power Supply: 5 V DC, Output: Single output, Alternative for: FP210D250-22(Siemens/Infineon)

Quantity Unit price
until 4 € 49.87 *
from 5 € 48.56 *
from 10 € 47.25 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 42 pieces (3-4 weeks if more)

Description Technical Properties Data Sheets Product Safety Information
Description
The differential magnetoresistive sensor CY-DMR-01H consists of two series coupled magneto... more
Close menu
Differential Magnetoresistive Sensor CY-DMR-01H-B, Power Supply: 5 V DC, Output: Single output, Alternative for: FP210D250-22(Siemens/Infineon)

The differential magnetoresistive sensor CY-DMR-01H consists of two series coupled magneto resistors (D-type InSb/NiSb semiconductor resistors whose value can be magnetically controlled), which are mounted onto an insulated ferrite substrate. The sensor is encapsulated in a metallic or plastic package and has 3 connection terminals. The basic resistance of the total system is 2 x 600Ω. A permanent magnet, which supplies a biasing magnetic field, is fixed on the base of the sensor.

Characteristics

  • Sensing over wide rotation speed range
  • Robust metallic or plastic housing
  • Signal amplitude is speed independent
  • Biasing magnet built in
  • Best suited for harsh environments

Typical applications

  • Speed detection
  • Position detection
  • Rotation detection
  • Angle encoder
  • Linear position sensing
Technical Properties
more
Close menu
Power Supply: +5 V DC
Operating Temperature: -30°C ~ +100°C
Cross Reference: FP212D250-22
Total Resistance: 900 Ω – 1600 Ω
Cut-off Frequency: >20kHz
Output Signal: ≥900mV
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
