Differential Magnetoresistive Sensor CY-DMR-02H-B, Power Supply: 5 V DC, Output: Single output, Alternative for: FP210L100-22 (Siemens/Infineon)
| Quantity | Unit price |
|---|---|
| Until 4 |
€49.87
|
| From 5 |
€48.56
|
| From 10 |
€47.25
|
Shipping ready, delivery time 1-3 workdays
for quantities up to 79 pieces,
delivery time 3-4 weeks for more
Product information "Differential Magnetoresistive Sensor CY-DMR-02H-B, Power Supply: 5 V DC, Output: Single output, Alternative for: FP210L100-22 (Siemens/Infineon)"

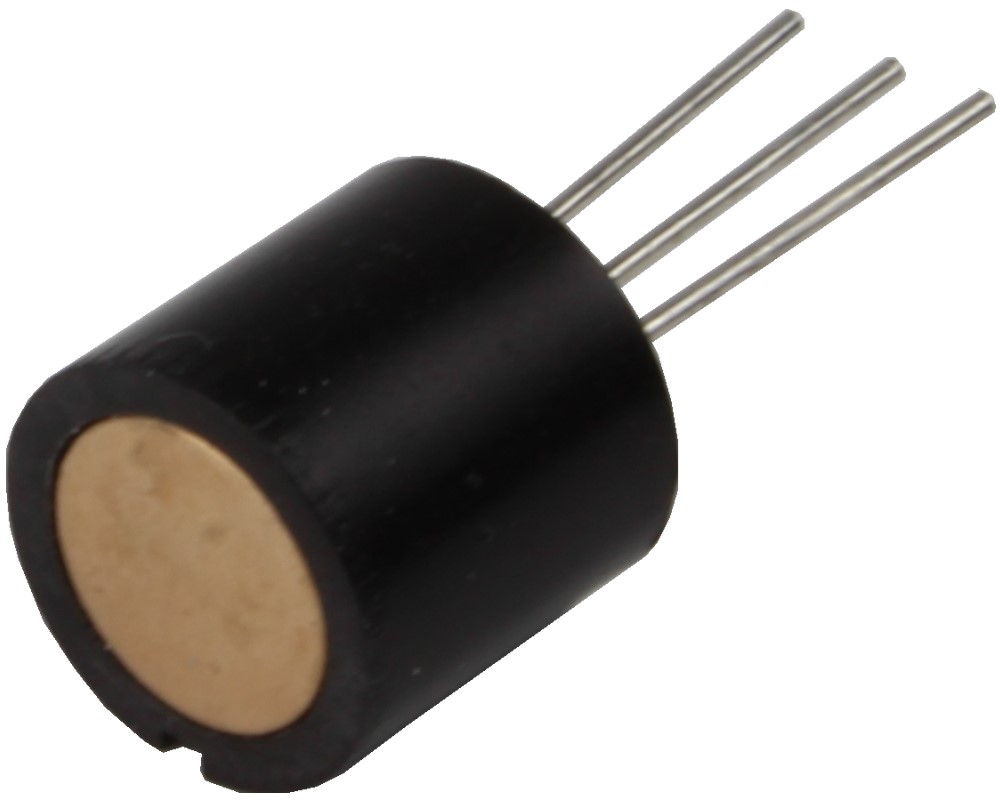

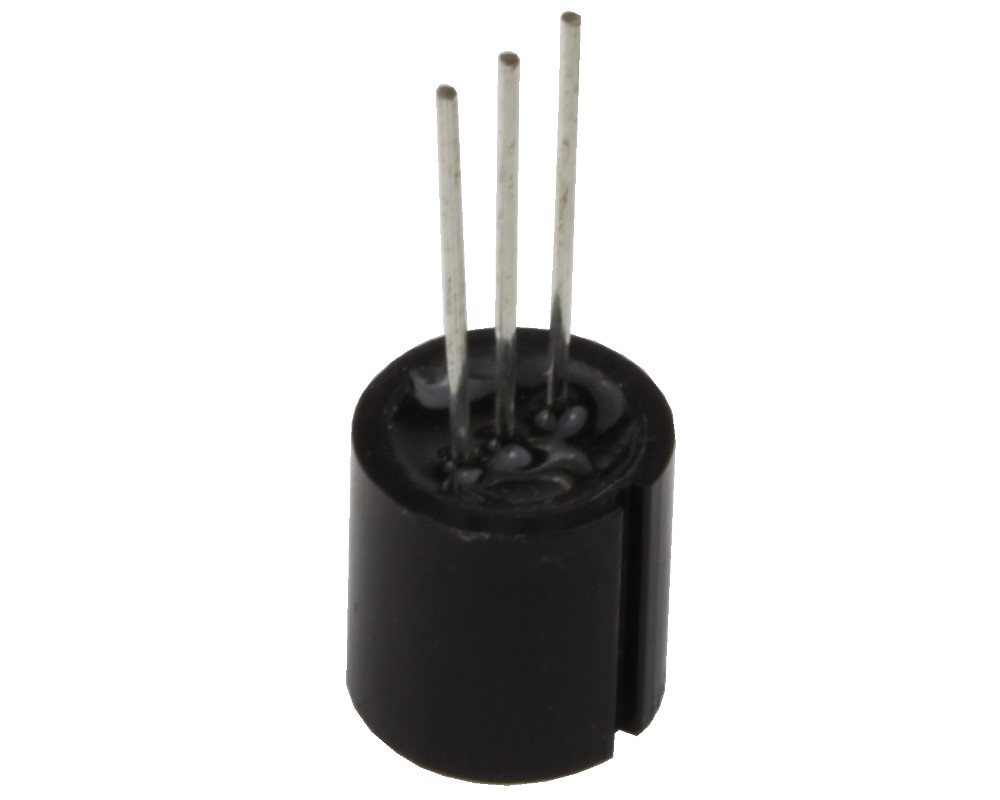

The differential magnetoresistive sensor CY-DMR-02H consists of two series coupled magneto resistors (D-type InSb/NiSb semiconductor resistors whose value can be magnetically controlled), which are mounted onto an insulated ferrite substrate. The sensor is encapsulated in a metallic or plastic package and has 3 connection terminals. The basic resistance of the total system is 2x220Ω. A permanent magnet, which supplies a biasing magnetic field, is fixed on the base of the sensor.
The CY-DMR-02H may be considered as a possible replacement or cross-reference type for FP210L100-22 and FP212L100-22, depending on the specific application. Its electrical and mechanical characteristics are comparable; however, the circuitry principle may differ. The listed cross-reference types are provided for identification and comparison purposes only. Please verify suitability and compatibility using the technical specifications.
Characteristics
- Sensing over wide rotation speed range
- Robust metallic or plastic housing
- Signal amplitude is speed independent
- Biasing magnet built in
- Best suited for harsh environments
Typical applications
- Speed detection
- Position detection
- Rotation detection
- Angle encoder
- Linear position sensing
| Cross Reference: | FP210L100-22 |
|---|---|
| Cut-off Frequency: | > 20kHz |
| Operating Temperature: | -30°C ~ +100°C |
| Output Signal: | ≥1000mV |
| Power Supply: | +5 V DC |
| Total Resistance: | 220 Ω – 660 Ω |
