SONNECY Differential Magnetoresistive Sensor CY-DMR-03A, Pow...

Preview: Differential Magnetoresistive Sensor CY-DMR-03A, Power Supply: 5 V DC, Output: Single output, Alternative for: FR05CM21AR(MuRata)

Differential Magnetoresistive Sensor CY-DMR-03A, Power Supply: 5 V DC, Output: Single output, Alternative for: FR05CM21AR(MuRata)

Quantity	Unit price
until 4	€ 40.47 *
from 5	€ 39.38 *
from 10	€ 38.28 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
for quantities up to available stock of 1 pieces (3-4 weeks if more)

The differential magnetoresistive sensor CY-DMR-03 consists of two series coupled magneto... more

Close menu

Differential Magnetoresistive Sensor CY-DMR-03A, Power Supply: 5 V DC, Output: Single output, Alternative for: FR05CM21AR(MuRata)

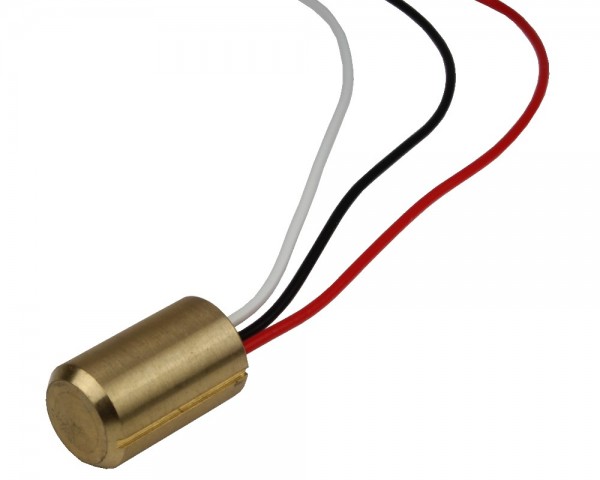

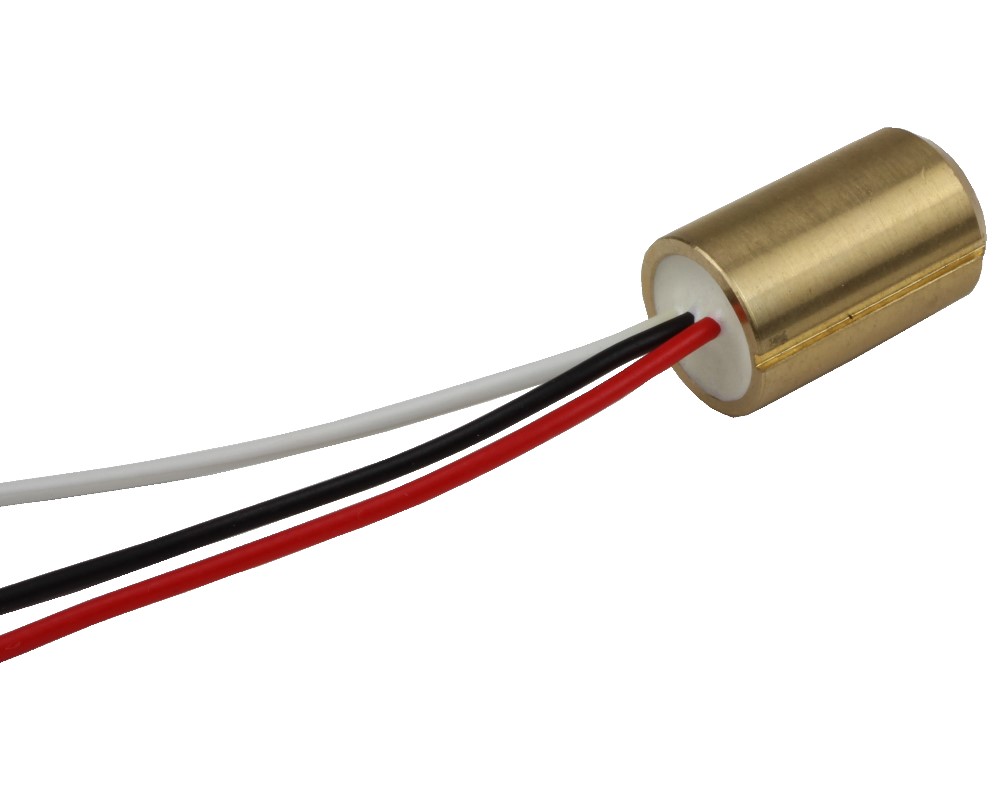

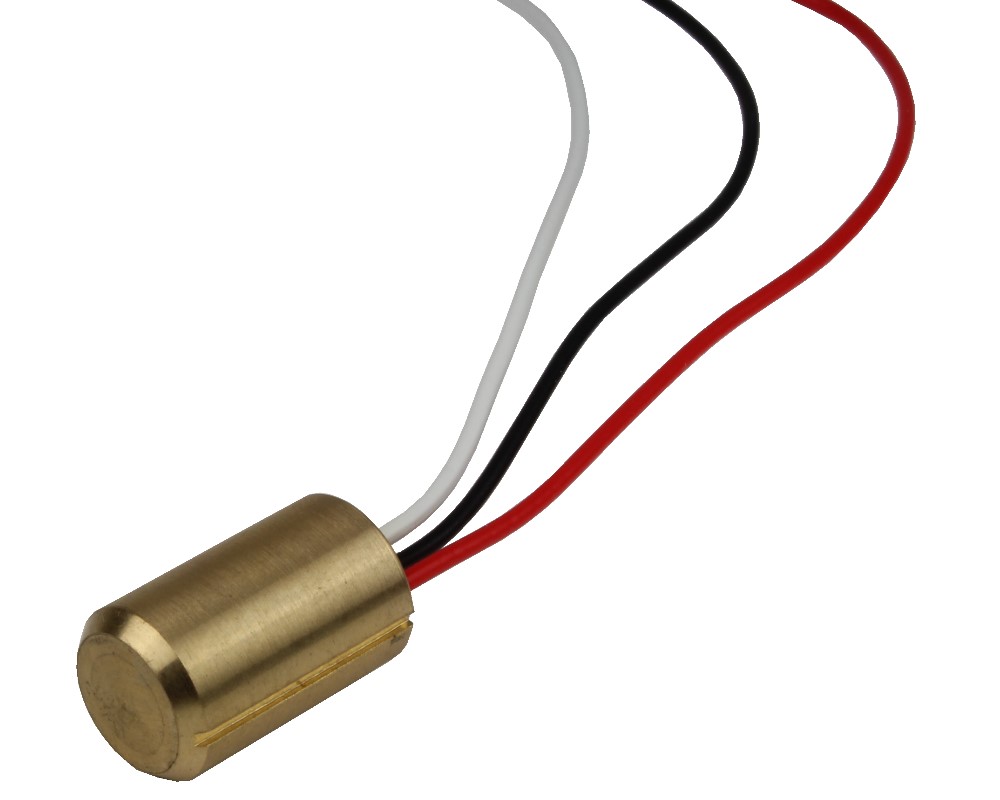

The differential magnetoresistive sensor CY-DMR-03 consists of two series coupled magneto resistors (D-type InSb/NiSb semiconductor resistors whose value can be magnetically controlled), which are mounted onto an insulated ferrite substrate. The sensor is encapsulated in a metallic package and has 3 connection terminals. The basic resistance of the total system is 2 x 550Ω. A permanent magnet, which supplies a biasing magnetic field, is fixed on the base of the sensor.

Characteristics

Sensing over wide rotation speed range (0~100kHz)
Robust metallic or plastic housing
Signal amplitude is speed independent
Biasing magnet built in
Best suited for harsh environments

Typical applications

Rotation speed detection
Rotation position detection
Proximity Switch
Angle encoder
Linear position sensing

Close menu

Power Supply:	+5 V DC
Cross Reference:	FR05CM21AR
Output Signal:	≥1100mV
Operating Temperature:	-20°C ~ +80°C
Total Resistance:	700 Ω – 1500 Ω
Cut-off Frequency:	0-100kHz
