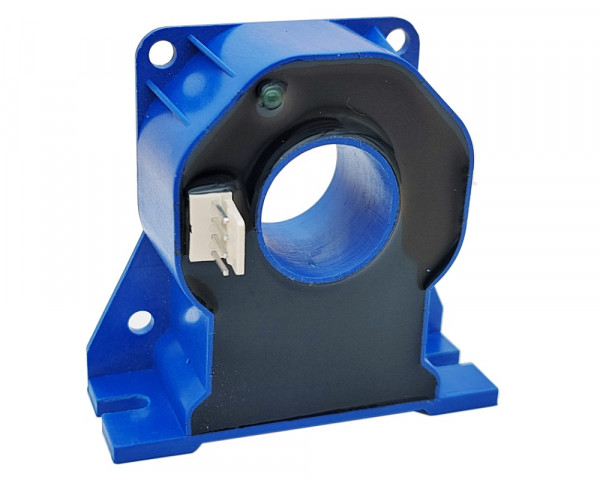

Fluxgate Closed Loop Current Sensor CYFGCSXXXLDGH

Fluxgate Closed Loop Current Sensor CYFGCSXXXLDGH
Quantity Unit price
until 4 € 72.00 *
from 5 € 65.45 *
from 10 € 59.50 *
from 50 € 52.01 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets
Description
CYFGCSXXXLDGH is a current sensor based on the fluxgate closed-loop principle, and can be used... more
Close menu
Fluxgate Closed Loop Current Sensor CYFGCSXXXLDGH

CYFGCSXXXLDGH is a current sensor based on the fluxgate closed-loop principle, and can be used for measuring DC, AC, pulse and various irregular waveform currents under galvanic isolation conditions. It has ultra-high accuracy and linearity, ultra-high sensitivity and resolution, very low out-of-phase current and temperature drift. It is widely used in instrumentation, medical equipment, metrology and calibration, laboratories, high-precision power supplies, new energy vehicles and so on.

Features

  • High electrical isolation
  • High linearity, high accuracy
  • High reliability
  • Good overload capability
  • Small sizes
  • Insulated plastic case recognized according to UL94-V0
  • Very good property-price ratio

Applications

  • Battery supplied applications
  • Uninterruptible power supplies (UPS)
  • Variable speed drives
  • Welding machine
  • Electric power network monitoring
  • AC frequency conversion servo-motors
  • Electrochemical applications
Technical Properties
more
Close menu
Nominal Input Current: 0-200A, 0-300A
Sensor Type: Closed-Loop
Power Supply: ±12V ~ ±15V DC
Output Signal: ±100 mA AC/DC, ±150 mA AC/DC
Current Type: AC/DC
Window Type: Round
Window Size (mm): Ø 20
Direction: bidirectional
Accuracy: 0.05 %
Linearity: 0.02 %
Operating Temperature: -40°C ~ +85°C
Frequency Bandwith: DC ~ 100kHz
Data Sheets
more
Close menu
Data sheets to download:
