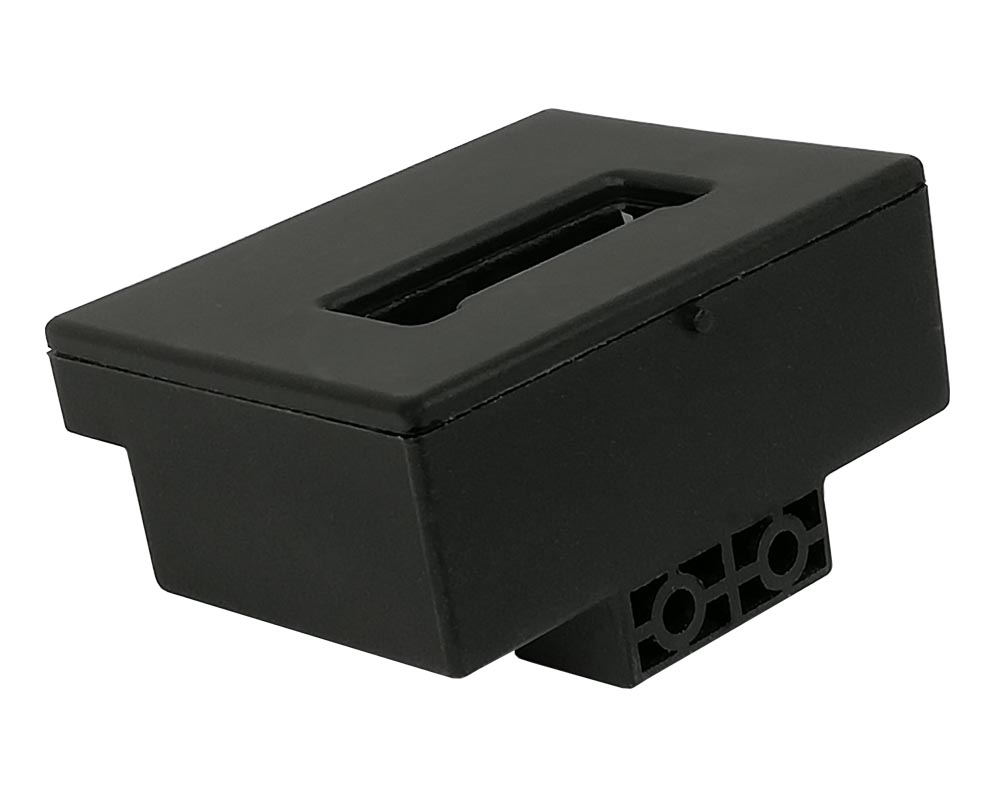

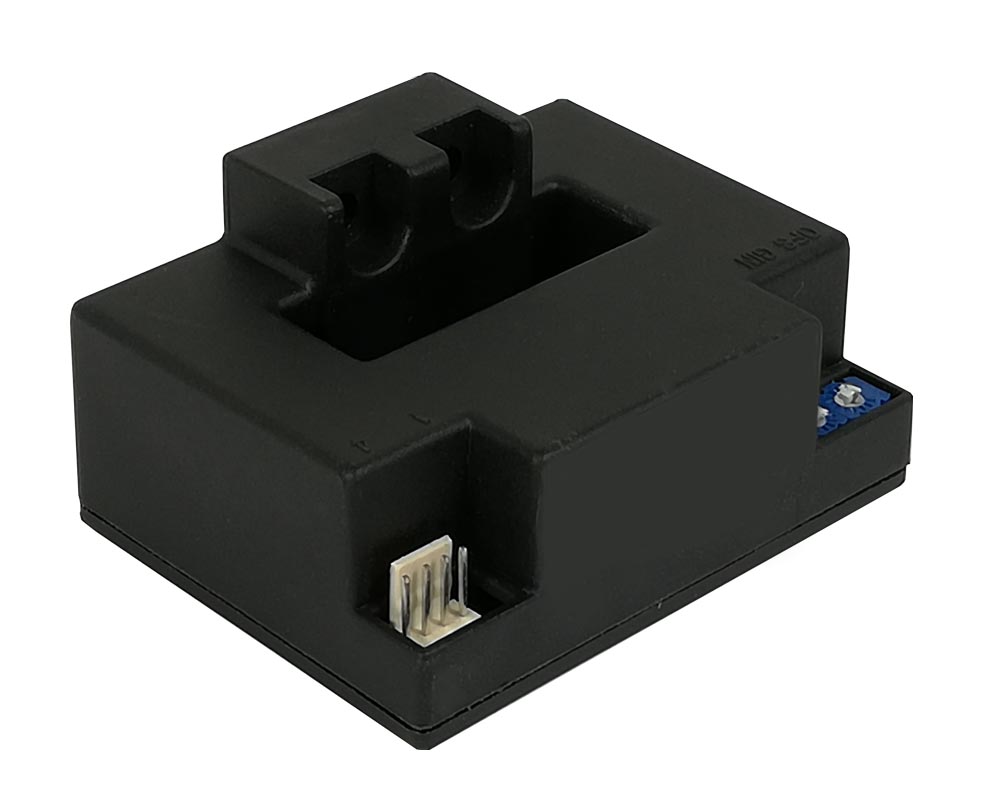

Hall Effect AC Current Sensor CYHCS-FC, Output: 4-20 mA DC, Power Supply:+15 V DC, Window: 41x4 mm

Preview: Hall Effect AC Current Sensor CYHCS-FC, Output: 4-20 mA DC, Power Supply:+15 V DC, Window: 41x4 mm Preview: Hall Effect AC Current Sensor CYHCS-FC, Output: 4-20 mA DC, Power Supply:+15 V DC, Window: 41x4 mm
Hall Effect AC Current Sensor CYHCS-FC, Output: 4-20 mA DC, Power Supply:+15 V DC, Window: 41x4 mm
Hall Effect AC Current Sensor CYHCS-FC, Output: 4-20 mA DC, Power Supply:+15 V DC, Window: 41x4 mm

Quantity Unit price
until 4 € 65.22 *
from 5 € 59.29 *
from 10 € 53.90 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets
Description
Dieser Stromsensor basiert auf dem Hall- Effekt- Prinzip mit offener Kreisstruktur, und ist mit... more
Close menu
Hall Effect AC Current Sensor CYHCS-FC, Output: 4-20 mA DC, Power Supply:+15 V DC, Window: 41x4 mm

Dieser Stromsensor basiert auf dem Hall- Effekt- Prinzip mit offener Kreisstruktur, und ist mit einer hohen galvanischen Isolation zwischen dem Primärleiter und der sekundären Schaltung entworfen. Er kann für Messungen von Wechselstrom sowie von Impulsstrom usw. verwendet werden. Der Ausgang des Stromwandlers stellt den gleichgerichteten Mittelwert des Stroms im Primärleiter dar.

Produkteigenschaften

  • Exzellente Genauigkeit
  • Sehr gute Linearität
  • Aufklappbar entworfen für einfache Montage
  • Geringer Stromverbrauch
  • Fensterstruktur
  • Elektrisch Isoliert den Ausgang des Stromwandlers vom Primärstromleiter
  • Keine Einfügungsverlust
  • Stromüberlastbarkeit

Anwendungen

  • Photovoltaik-Anlagen
  • Nicht unterbrechbare Stromversorgung (UPS)
  • Zahlreiche Versorgungsspannung
  • Elektrische Schweißmaschinen
  • Umspannstation
  • Numerische Kontrollmaschinenwerkzeuge
  • Elektrische angetriebene Lokomotiven
  • Mikrocomputerüberwachung
  • Elektrische Energienetzwerküberwachung
Technical Properties
more
Close menu
Nominal Input Current: 0-200A, 0-400A, 0-500A, 0-600A, 0-800A, 0-1000A, 0-2000A
Sensor Type: Open-Loop
Power Supply: +15 V DC
Output Signal: 4-20 mA DC
Current Type: AC
Window Type: Rectangle
Window Size (mm): 41 x 14
Direction: bidirectional
Accuracy: 1%
Linearity: ±0,5%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: 20Hz ~ 20kHz
Data Sheets
more
Close menu
Data sheets to download:
