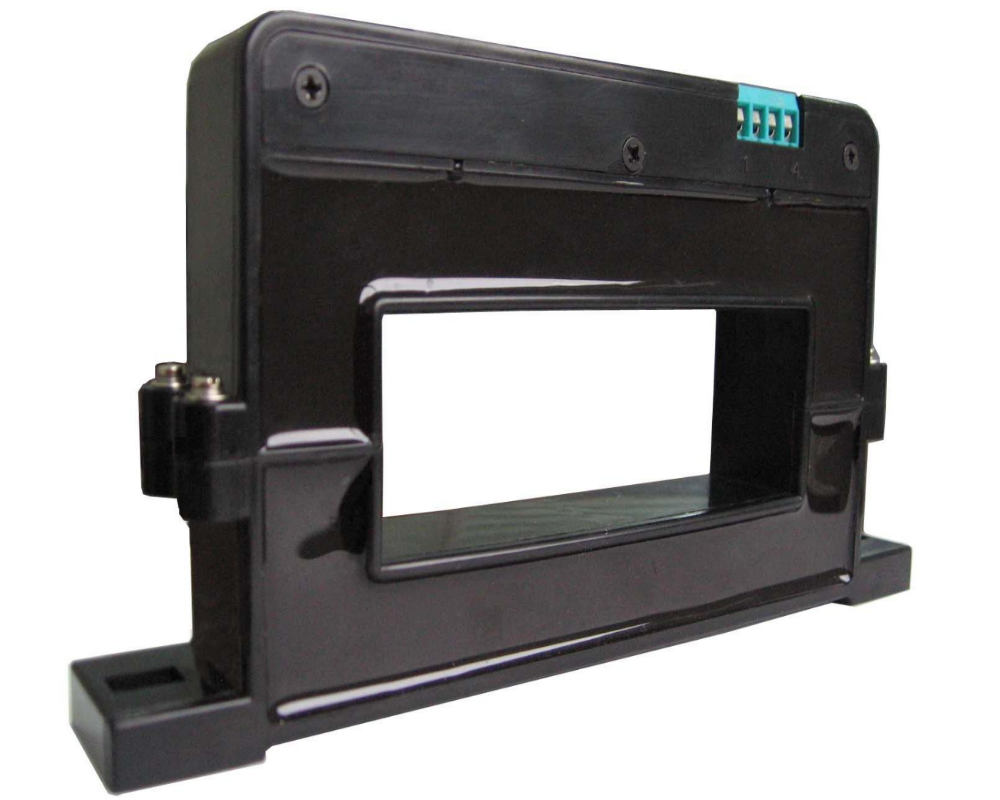

This Hall Effect current sensor is based on open loop principle and designed with a high galvanic isolation between primary conductor and secondary circuit. It can be used for measurement of AC current, pulse currents etc. The output of the transducer reflects the rectified average value of the current in the carrying conductor.
|Nominal Input Current:||0-500A, 0-1000A, 0-1500A, 0-2000A, 0-3000A, 0-4000A, 0-5000A|
|Power Supply:||+15 V DC|
|Output Signal:||0-4 V DC|
|Window Size (mm):||104 x 36|
|Operating Temperature:||-25°C ~ +85°C|
|Frequency Bandwith:||DC ~ 20kHz|
