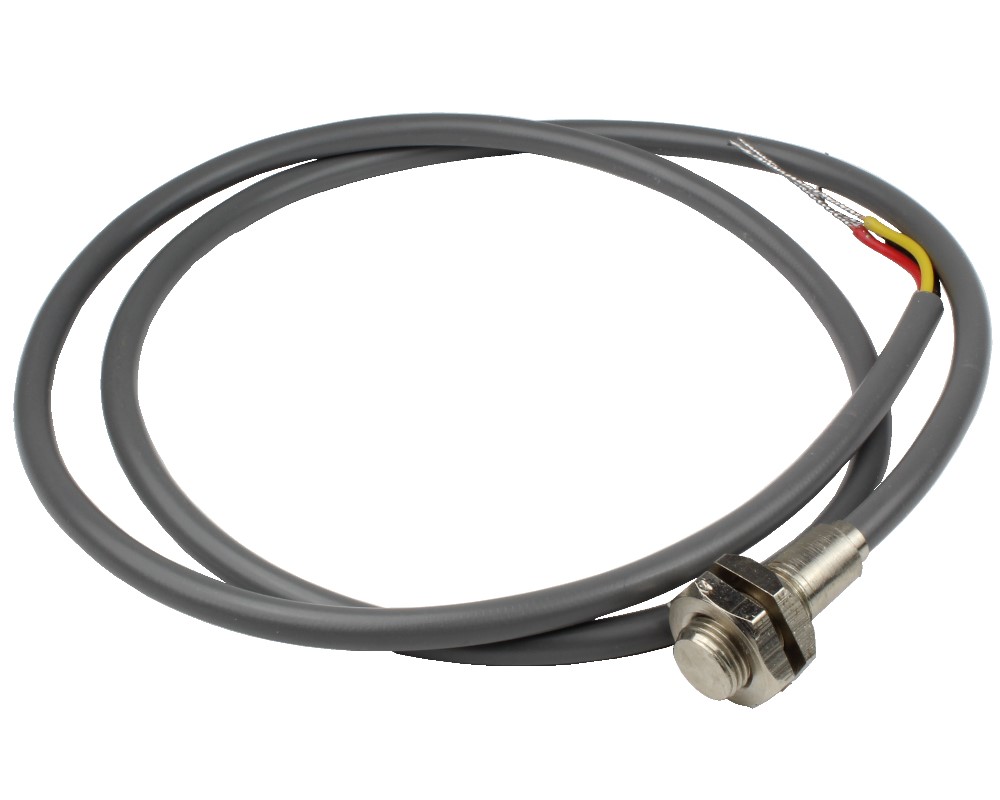

Hall Effect Proximity Switches CYKP8-02CL0, Power Supply: 4.5-24V, Output: 20mA Open single Output (PNP)

Preview: Hall Effect Proximity Switches CYKP8-02CL0, Power Supply: 4.5-24V, Output: 20mA Open single Output (PNP) Preview: Hall Effect Proximity Switches CYKP8-02CL0, Power Supply: 4.5-24V, Output: 20mA Open single Output (PNP)
Hall Effect Proximity Switches CYKP8-02CL0, Power Supply: 4.5-24V, Output: 20mA Open single Output (PNP)
Hall Effect Proximity Switches CYKP8-02CL0, Power Supply: 4.5-24V, Output: 20mA Open single Output (PNP)

Quantity Unit price
until 4 € 15.74 *
from 5 € 13.70 *
from 10 € 12.45 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

Description Technical Properties Data Sheets
Description
A Hall Effect proximity switch is a non-contact electronic switch, which consist of a permanent... more
Close menu
Hall Effect Proximity Switches CYKP8-02CL0, Power Supply: 4.5-24V, Output: 20mA Open single Output (PNP)

A Hall Effect proximity switch is a non-contact electronic switch, which consist of a permanent magnet or ferromagnetic part as trigger intermediary and a Hall Effect sensor IC. The Hall sensor IC detects the change of the magnet field when the permanent magnet comes in the close proximity to it and generates an electric signal. This signal is amplified and rectified to control the output signal of the switch. Compared with magneto-electric, optoelectronic and capacitive proximity switches, Hall proximity switches have the advantages of good output wave shape, high stability, low costs, unaffected by oil, dirt and vibration, and wide operating temperature etc. They are very suitable for integrating in PC systems and various kinds of industrial control equipments, and are optimal switches for position control, speed measurement, counting, direction detection and automatic protection etc.



Technical Properties
more
Close menu
Output Signal: ±20 mA AC/DC
Output type: PNP (OC)
Cable Length: 0.65m
Dimensions: M8x20mm
Operating Temperature: -25°C~+125°C
Power Supply: 4.5V ~ 24V DC
Sensing Object : Magnet S-pole
Data Sheets
more
Close menu
Data sheets to download:
