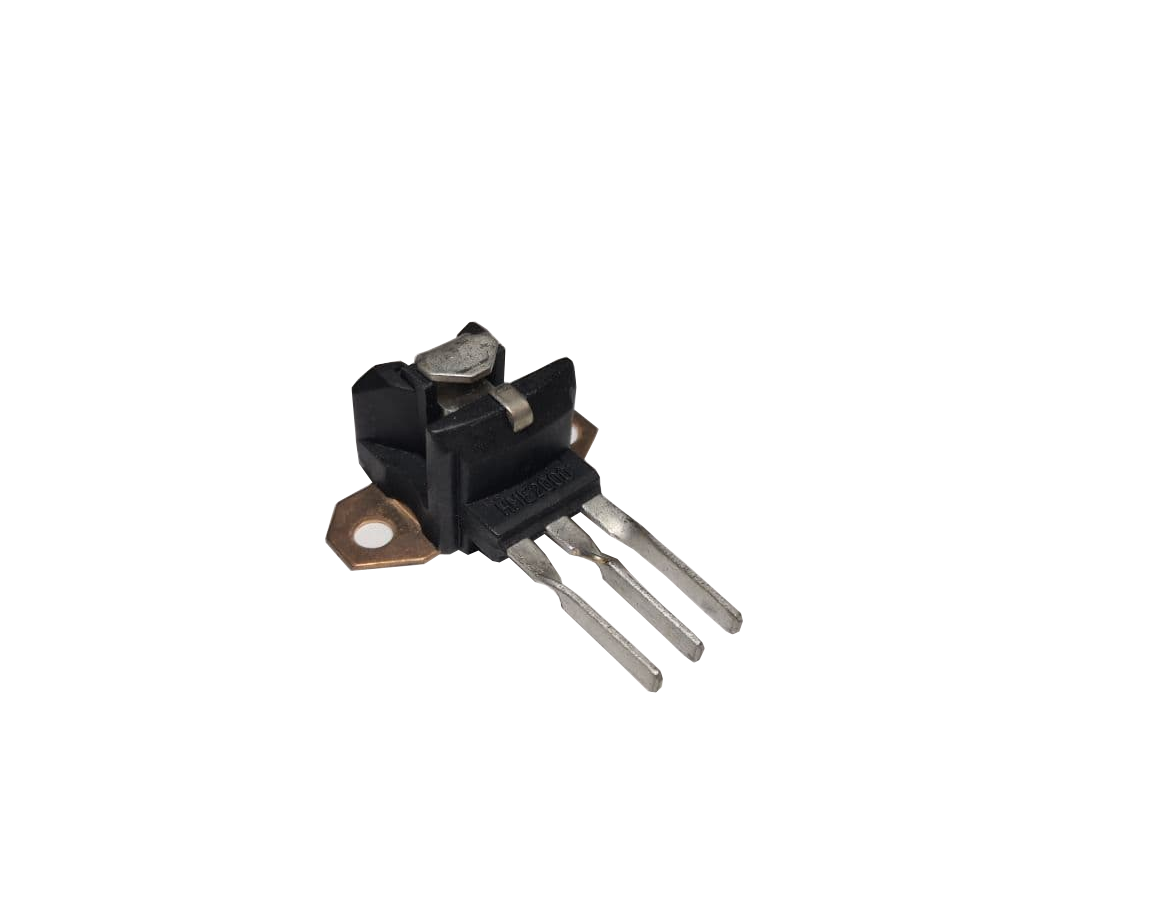

Hall-Effect Vane Sensor CYHME2000, Output: NPN (OC), Power Supply: 4,5 V ~ 24 V DC, Alternative for: 2AV31E, 2AV31E-J (Honeywell)
| Quantity | Unit price |
|---|---|
| Until 4 |
€13.19
|
| From 5 |
€11.53
|
| From 10 |
€9.89
|
| From 50 |
€8.57
|
Shipping ready, delivery time 1-3 workdays
for quantities up to 95 pieces,
delivery time 3-4 weeks for more
Product information "Hall-Effect Vane Sensor CYHME2000, Output: NPN (OC), Power Supply: 4,5 V ~ 24 V DC, Alternative for: 2AV31E, 2AV31E-J (Honeywell)"
ChenYang Automotive Shaft Position Monitoring CYHME2000 is designed to work in the conditions of automobile environment. The device is produced in compliance with the international standard and features: modern design, accurateness, endurance, narrow temperature drifting, smooth and clean output curve as well as non instantaneous dithering.
It is applicable to engines with electronic ejection. The main applications are in automobile industry, i.e. as a breakerless trigger in electronic systems, in control engineering, especially in those areas where switches/ sensors must operate maintenance-free under harsh environmental conditions, e.g. rpm sensors, limit switches, position sensors, speed measurements, shaft encoders, scanning of coding disks etc.
The CYHME2000 may be considered as a possible replacement or cross-reference type for 2AV31E and 2AV31E-J, depending on the specific application. Its electrical and mechanical characteristics are comparable; however, the circuitry principle may differ. The listed cross-reference types are provided for identification and comparison purposes only. Please verify suitability and compatibility using the technical specifications.
Features:

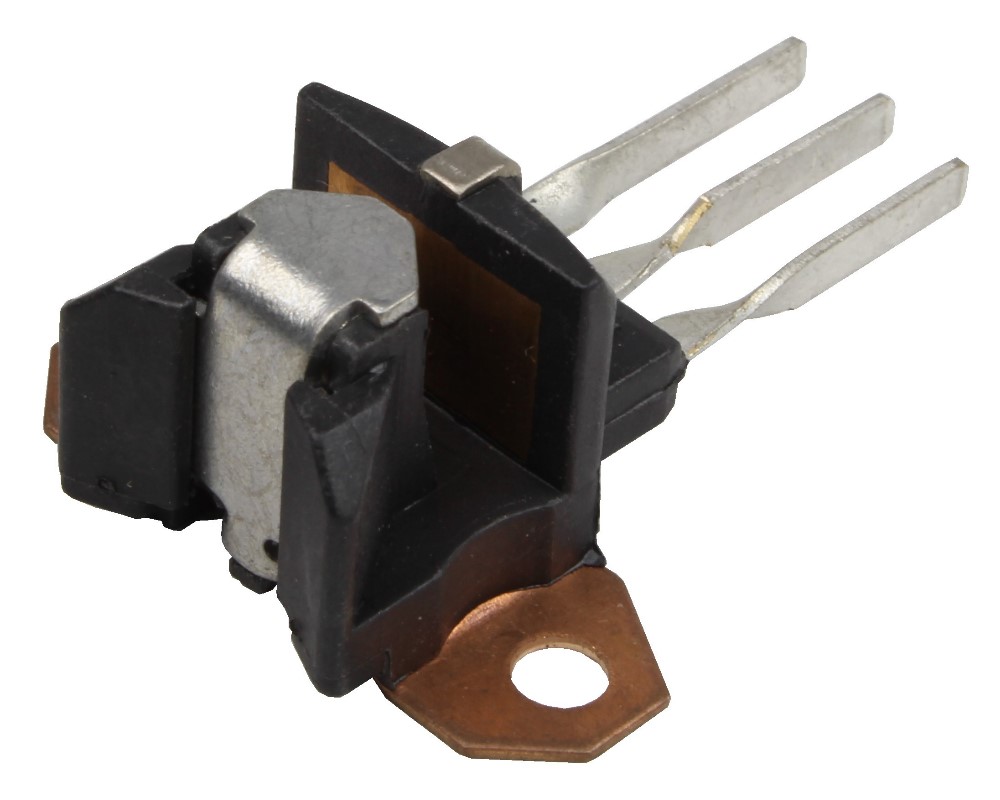

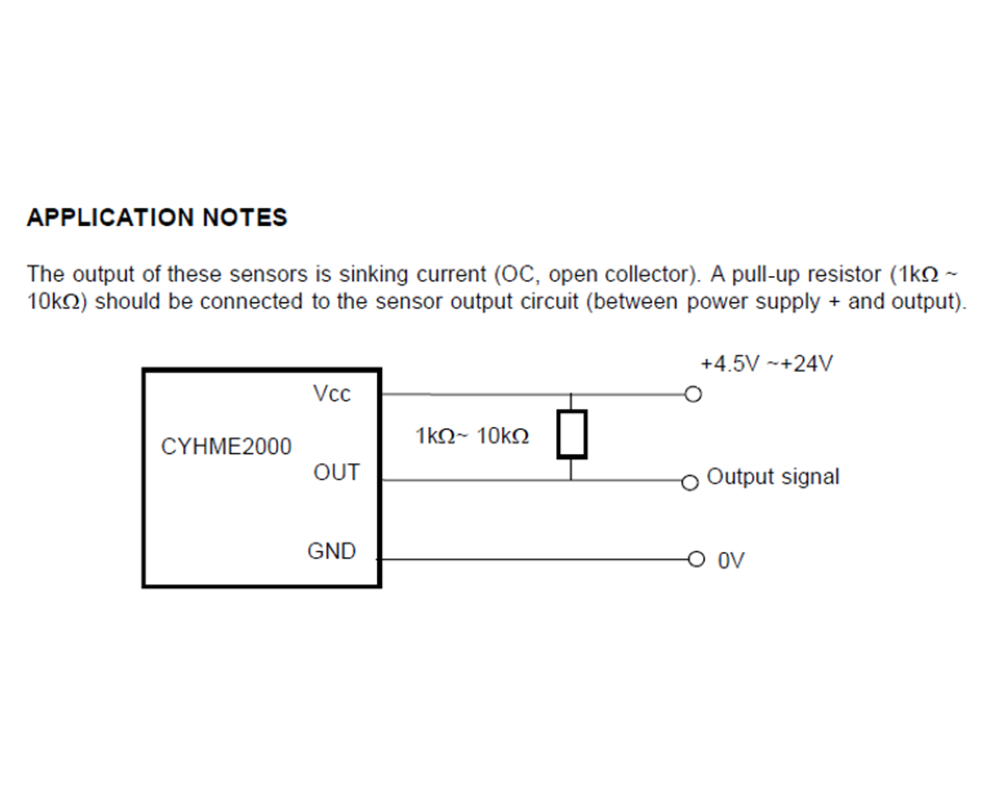

- Contactless switch/sensor with open collector output (40mA)
- Static switching/sensing
- High switching/sensing frequency
- Hermetically sealed with plastic
- Unaffected by dirt, light and vibration
- Large temperature and voltage ranges
- Integrated protection of overvoltage etc.
If you require a different cable length, please send us a request via our Contact Form.
| Cross Reference: | 2AV31E, 2AV31E-J |
|---|---|
| Operating Temperature: | -40°C~ +150°C |

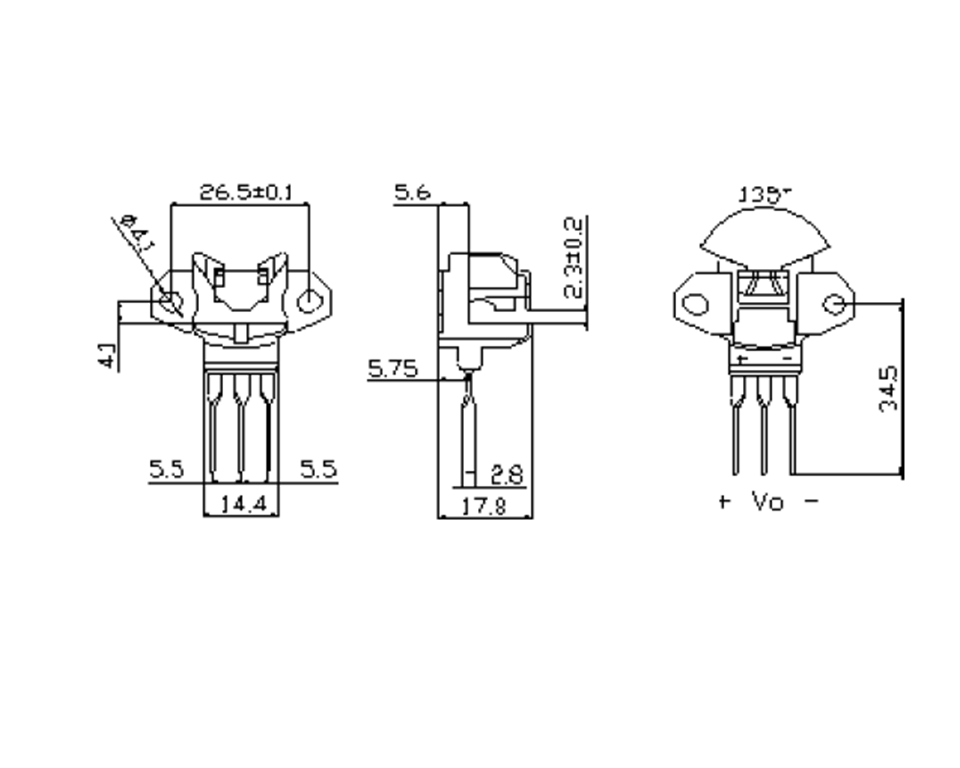

| Operation/Release distance: | 1.45mm / 2.29mm |
| Output Type: | NPN (OC) |
| Power Supply: | 4.5V ~ 24V DC |
| Rise/Fall time: | 2µs / 2µs |
