Linear Hall Effect Sensor CYSJ2A, Max. Sensitivity: 1.17 ~ 1.71 (mV/mT), Measuring range: 3T
Quantity | Unit price |
---|---|
until 9 | € 30.36 * |
from 10 | € 25.30 * |
from 20 | € 21.07 * |
from 50 | € 17.56 * |
from 100 | € 14.64 * |
from 200 | € 12.20 * |
from 500 | € 10.59 * |
from 1000 | € 6.79 * |
from 3000 | € 5.78 * |
from 5000 | € 5.33 * |
Prices incl. VAT excl. Shipping Costs
Ready for shipping, delivery time 1-3 workdays
- Article-Nr: CYSJ2A-S
- Serial-Nr: CYSJ
- Request on this Article
- Data sheet download
- RoHS Declaration of Conformity
- Data sheet download (Deutsch)
CYSJ2A Hall Effect Sensor is outstanding for its Ultra-High sensitivity and its low temperature... more
Linear Hall Effect Sensor CYSJ2A, Max. Sensitivity: 1.17 ~ 1.71 (mV/mT), Measuring range: 3T
CYSJ2A Hall Effect Sensor is outstanding for its Ultra-High sensitivity and its low temperature coefficients. This sensor is made by using the technique of Molecular Beam Epitaxy (MBE), which provides excellent uniformity and reproducibility.
Features
- Ultra-High Sensitivity (180V/AT)
- Low current requirement
- Very low power consumption
- Extended operating temperature range
- Small linearity error of the Hall voltage
- Plastic miniature package SOT-143 for surface mounting or SIP (Through Slot)
- Wide measuring range (0.1µT-2T)
Applications
- Magnetic field measurement
- Low temperature applications
- Current and power measurement
- Control of brushless DC motors
- Microswitches
- Position sensors
- Speed and RPM sensing
Linearity: | 0.5% |
Measuring range: | 3T |

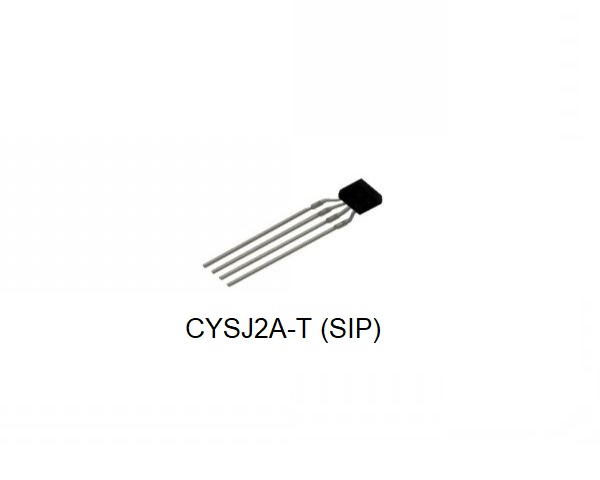

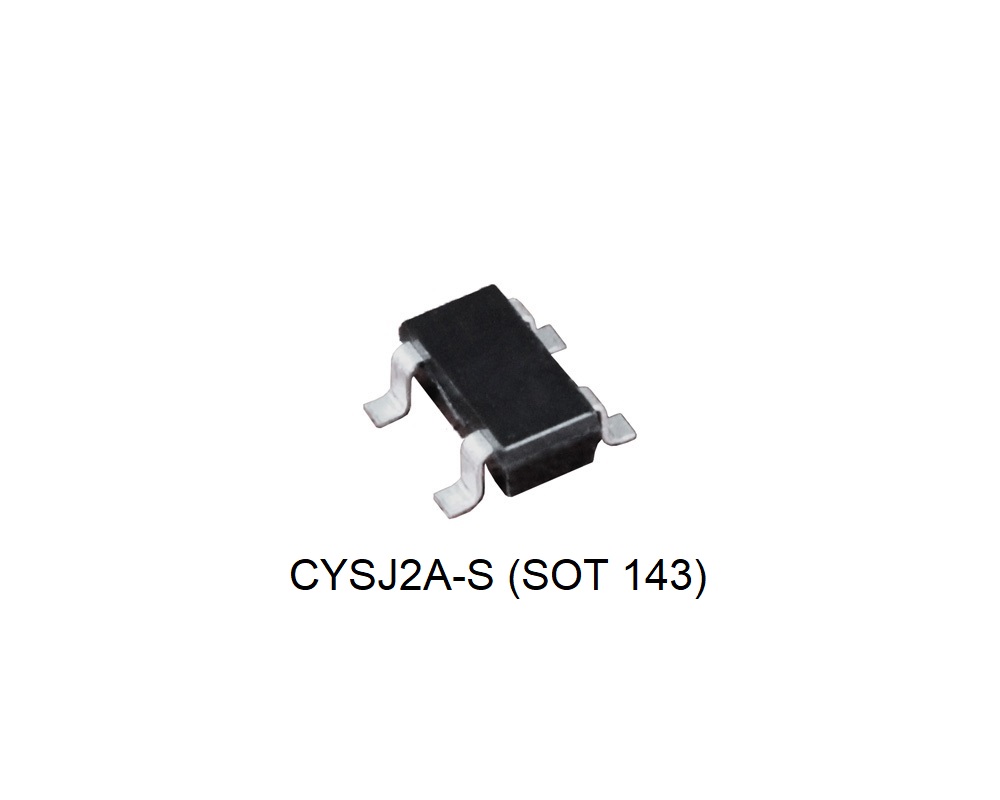

Package/Size: | SIP/2.7x2.35x0.95mm, SOT143/2.9x1.5x1.1mm |
Operating Temperature: | -100 ~ +200°C |
Max. Sensitivity: | 1.17 ~ 1.71 mV/mT |
Input/Output Resistance: | 620~780Ω/ 620~780Ω |
Max. Supply current/voltage: | 9mA/6V |
