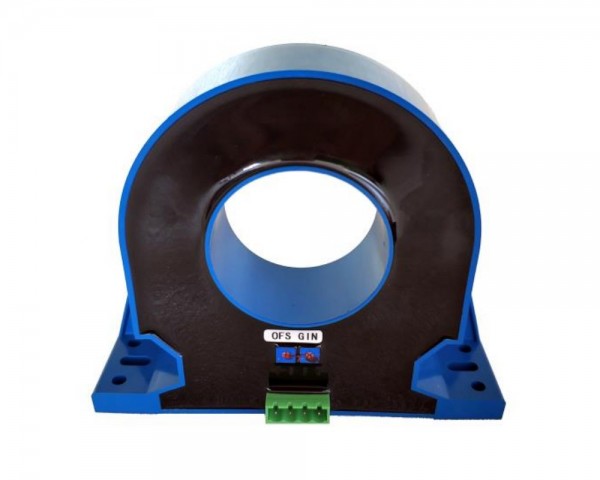

Open Loop Hall Effect AC/DC Current Sensor CYHCS-K2S, Output: 2.5 V DC ±1.5 V AC/DC, Power Supply: +5V DC ± 5%, Window: Ø 55 mm

Open Loop Hall Effect AC/DC Current Sensor CYHCS-K2S, Output: 2.5 V DC ±1.5 V AC/DC, Power Supply: +5V DC ± 5%, Window: Ø 55 mm
Quantity Unit price
until 4 € 53.36 *
from 5 € 48.50 *
from 10 € 44.10 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

This Hall Effect current sensor is based on the open-loop principle and designed with high... more
Open Loop Hall Effect AC/DC Current Sensor CYHCS-K2S, Output: 2.5 V DC ±1.5 V AC/DC, Power Supply: +5V DC ± 5%, Window: Ø 55 mm

This Hall Effect current sensor is based on the open-loop principle and designed with high galvanic isolation between the primary conductor and secondary circuits. It can be used for the measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current-carrying conductor.

Applications

  • Photovoltaic equipment
  • Frequency conversion timing equipment
  • Uninterruptible power supplies (UPS)
  • Electric welding machines
  • Transformer substation
  • Numerical controlled machine tools
  • Electrically powered locomotive
  • Electric power network monitoring
  • Inverters

Features

  • Excellent accuracy
  • Very good linearity
  • Less power consumption
  • Window structure
  • Electrically isolating the output of the transducer from the current-carrying conductor
  • No insertion loss
  • Current overload capability



Information about product safety:

Manufacturer/ EU Responsible Person:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100

Nominal Input Current: 0-300A, 0-500A, 0-600A, 0-800A, 0-1000A, 0-12000A, 0-15000A
Sensor Type: Open-Loop
Power Supply: +5 V DC
Output Signal: +2,5 V ± 1,5 V AC/DC
Current Type: AC/DC
Window Type: Round
Window Size (mm): Ø 55
Direction: bidirectional
Accuracy: 1%
Linearity: 1,0%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: DC ~ 20kHz
