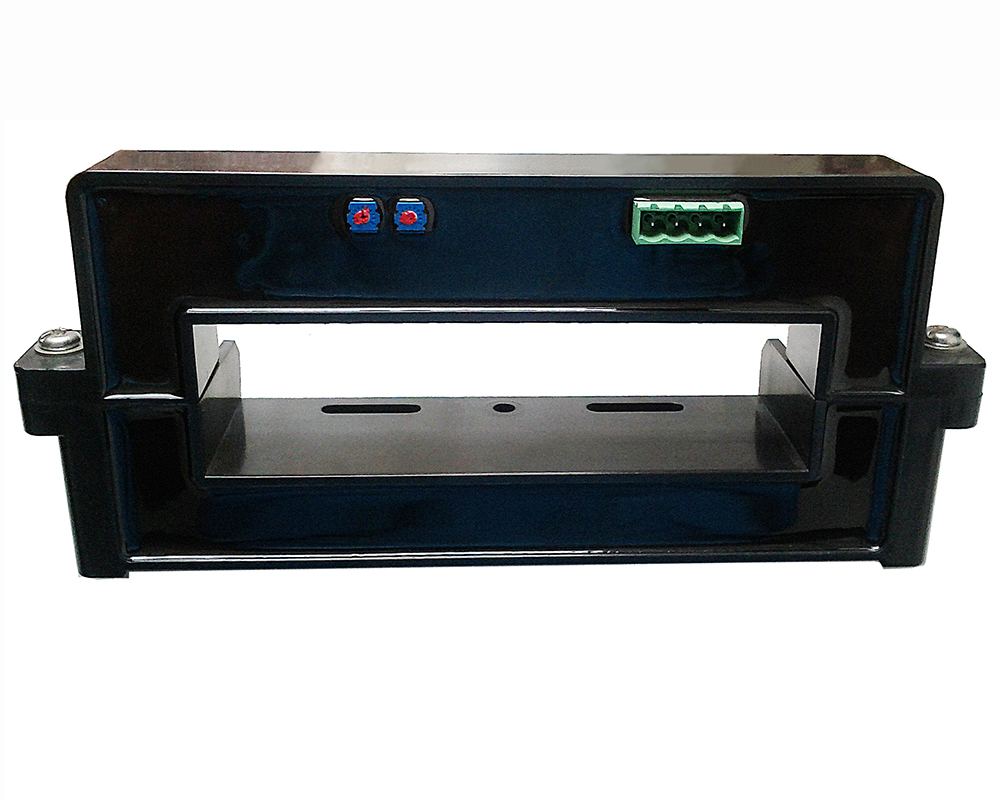

SONNECY Split Core Hall Effect AC/DC Current Sensor CYHCS-KC...

Split Core Hall Effect AC/DC Current Sensor CYHCS-KCA, Output:±5V AC/DC, Power Supply: ±12V DC or ±15V DC, Window:140x36mm

Quantity	Unit price
until 4	€ 203.34 *
from 5	€ 184.85 *
from 10	€ 168.05 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Article-Nr: CYHCS-KCA-1000A-1
Serial-Nr: CYHCS-KCA
Request on this Article
Data Sheet Donwload
Data Sheet Download (German)

This Hall Effect current sensor is based on open-loop principle and designed with a split core... more

Close menu

Split Core Hall Effect AC/DC Current Sensor CYHCS-KCA, Output:±5V AC/DC, Power Supply: ±12V DC or ±15V DC, Window:140x36mm

This Hall Effect current sensor is based on open-loop principle and designed with a split core and high galvanic isolation between the primary conductor and secondary circuit. It can be used for measurement of AC/DC current etc. The output of the transducer reflects the real wave of the current-carrying conductor.

Product Characteristics:

Excellent accuracy
Very good linearity
Light in weight
Less power consumption
Window structure
Electrically isolating the output of the transducer from the current-carrying conductor
No insertion loss
Current overload capability

Applications:

Photovoltaic equipment
Frequency conversion timing equipment
Various power supply
Uninterruptible power supplies (UPS)
Electric welding machines
Numerical controlled machine tools
Electrolyzing and electroplating equipment
Electrically powered locomotive
Microcomputer monitoring
Electric power network monitoring

Close menu

Sensor Type:	Open-Loop
Nominal Input Current:	0-1000A, 0-2000A, 0-3000A, 0-4000A, 0-5000A, 0-6000A, 0-8000A, 0-10000A
Power Supply:	±12 V DC, ±15 V DC
Output Signal:	±5V AC/DC
Current Type:	AC/DC
Window Type:	Rectangle
Window Size (mm):	140 x 36
Direction:	bidirectional
Accuracy:	1%
Linearity:	1%
Operating Temperature:	-25°C ~ +85°C
Frequency Bandwith:	DC-3 kHz
