| Quantity | Unit price |
|---|---|
| until 4 | € 76.45 * |
| from 5 | € 69.50 * |
| from 10 | € 63.18 * |
Prices incl. VAT excl. Shipping Costs
Article not in stock, Delivery time 3-4 Weeks

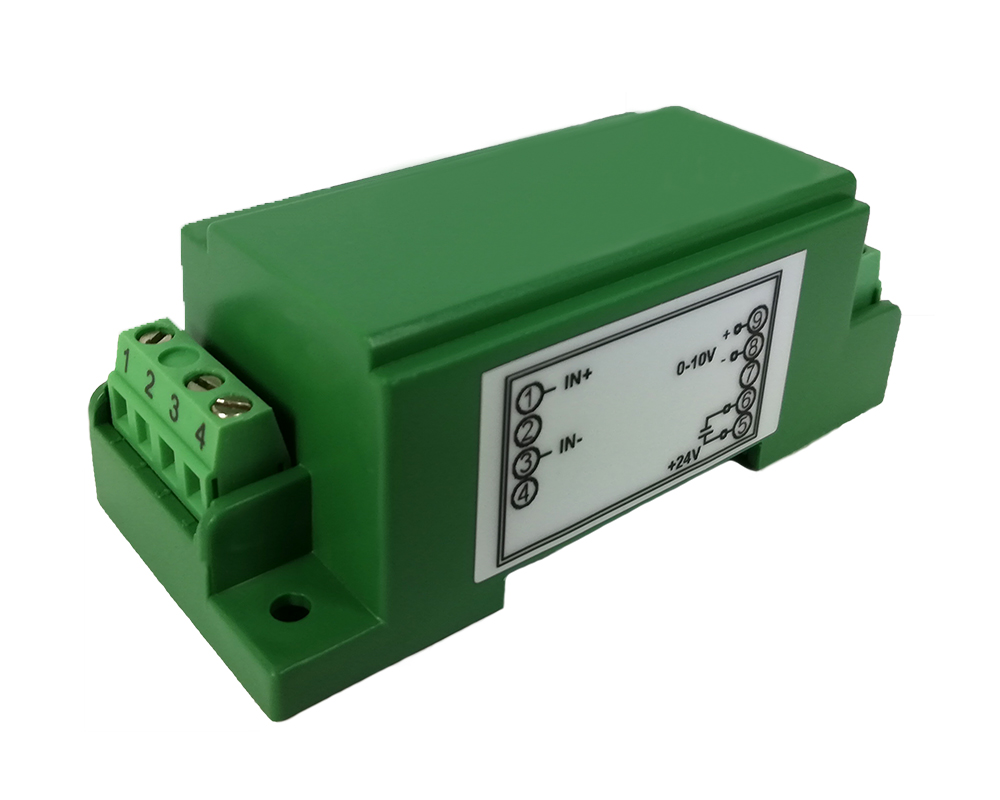

The CYVT02-32S1 DC voltage sensor/transducer works according to Electromagnetic Induction and is designed for applications to measurement and monitoring of DC voltage. The output signal (DC voltage or current) of this transducer is proportional to the input DC voltage. They are suitable for measurements and long-time monitoring of DC voltages and can be applied to power supply management, DC motor drivers, battery chargers, and systems etc.
Information about product safety:
Manufacturer/ EU Responsible Person:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
| Current Type: | DC |
| Input Voltage Range: | 0-10mV DC, 0-50mV DC, 0-75mV DC, 0-1V DC, 0-5V DC, 0-10V DC, 0-50V DC, 0-75V DC , 0-100V DC, 0-200V DC, 0-500V DC, 0-600V DC, 0-700V DC, 0-800V DC, 0-900V DC, 0-1000V DC |
| Power Supply: | +12V DC |
| Response Time: | ≤400ms |
| Direction: | unidirectional |
| Isolation voltage: | 2.5 kV DC, 1min |
| Operating Temperature: | -10°C ~ +60°C |
| Accuracy: | 0,5% |
| Output Signal: | 0-5V DC |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
