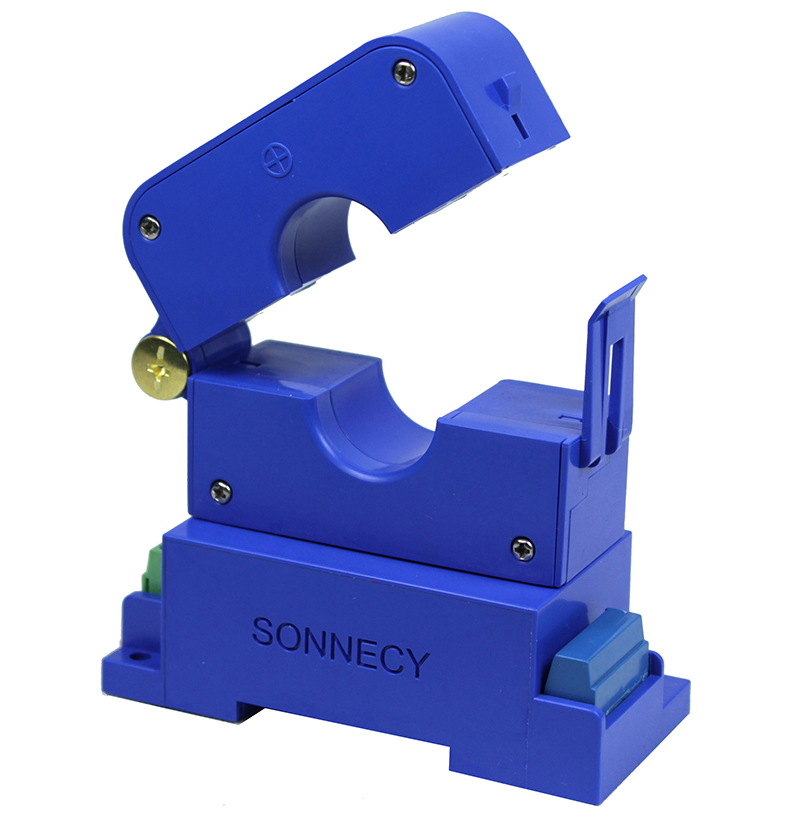

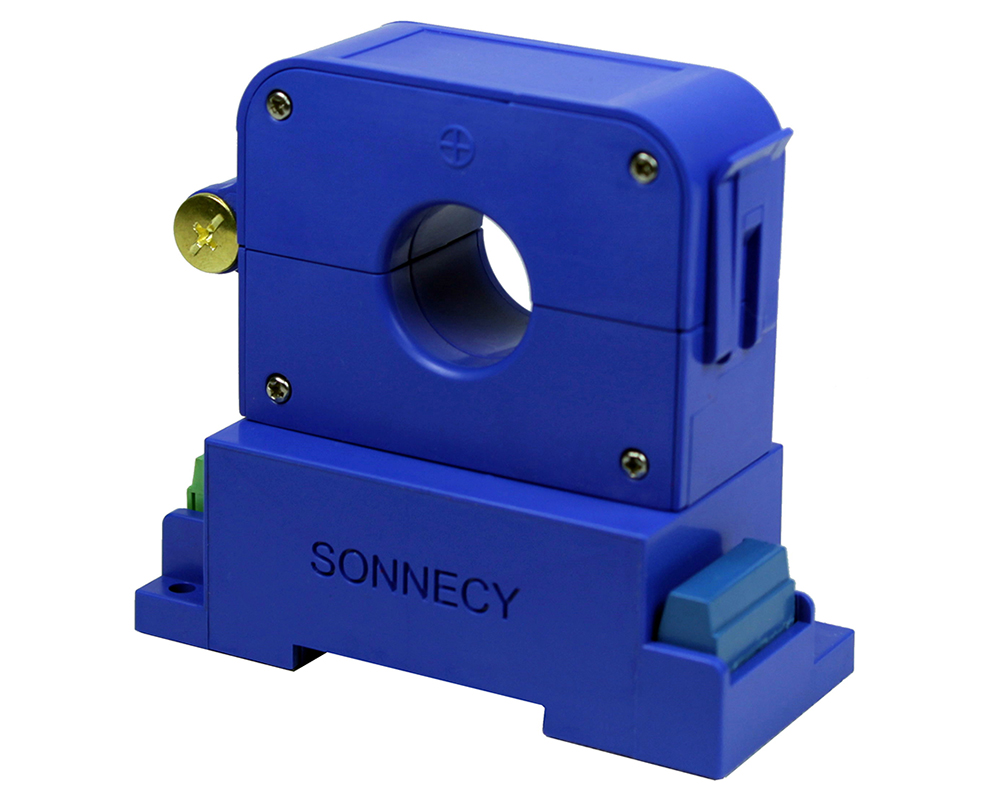

The sensor CYHCTD-S3K is a Hall Effect current sensor for the measurement of DC current. The sensor has galvanic isolation between the high-power primary conductor and the secondary electronic circuit. The sensor has different analog and digital output signals under different power supplies. The data communication between the sensor and digital equipment can be realized directly through the interface RS-485 MODBUS.
Features and Advantages
|Nominal Input Current:||0-25A, 0-30A, 0-40A, 0-50A, 0-60A, 0-70A, 0-80A, 0-90A, 0-100A, 0-200A, 0-300A, 0-400A, 0-500A|
|Power Supply:||+12V DC|
|Analogue Output Signal:||0-5V DC|
|Digital Outputs:||Current I|
|Baud Rate (bps):||1200, 2400, 4800, 9600 (default), 19.2K, 38.4K, 57.6K, 115.2K|
|Window Size (mm):||Ø 20|
|Operating Temperature:||-40°C ~ +85°C|
