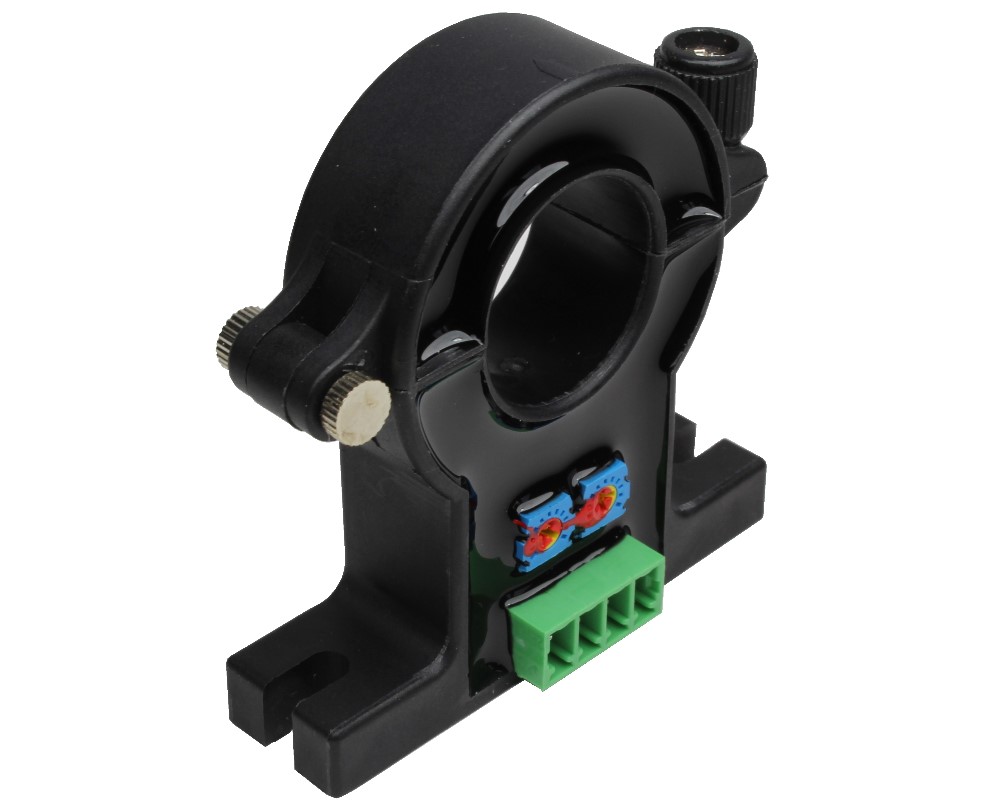

Bidirectional Split Core Hall Effect DC Current Sensor CYHCT-C2TV, Output: 0-4 V DC, Power Supply: +12 V DC, Window: Ø 21 mm, Connector: Cable

Preview: Bidirectional Split Core Hall Effect DC Current Sensor CYHCT-C2TV, Output: 0-4 V DC, Power Supply: +12 V DC, Window: Ø 21 mm, Connector: Cable Preview: Bidirectional Split Core Hall Effect DC Current Sensor CYHCT-C2TV, Output: 0-4 V DC, Power Supply: +12 V DC, Window: Ø 21 mm, Connector: Cable
Bidirectional Split Core Hall Effect DC Current Sensor CYHCT-C2TV, Output: 0-4 V DC, Power Supply: +12 V DC, Window: Ø 21 mm, Connector: Cable
Bidirectional Split Core Hall Effect DC Current Sensor CYHCT-C2TV, Output: 0-4 V DC, Power Supply: +12 V DC, Window: Ø 21 mm, Connector: Cable

Quantity Unit price
until 4 € 46.85 *
from 5 € 42.80 *
from 10 € 39.13 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets Product Safety Information
Description
This Hall Effect current sensor is based on open loop principle and designed with a split core... more
Close menu
Bidirectional Split Core Hall Effect DC Current Sensor CYHCT-C2TV, Output: 0-4 V DC, Power Supply: +12 V DC, Window: Ø 21 mm, Connector: Cable

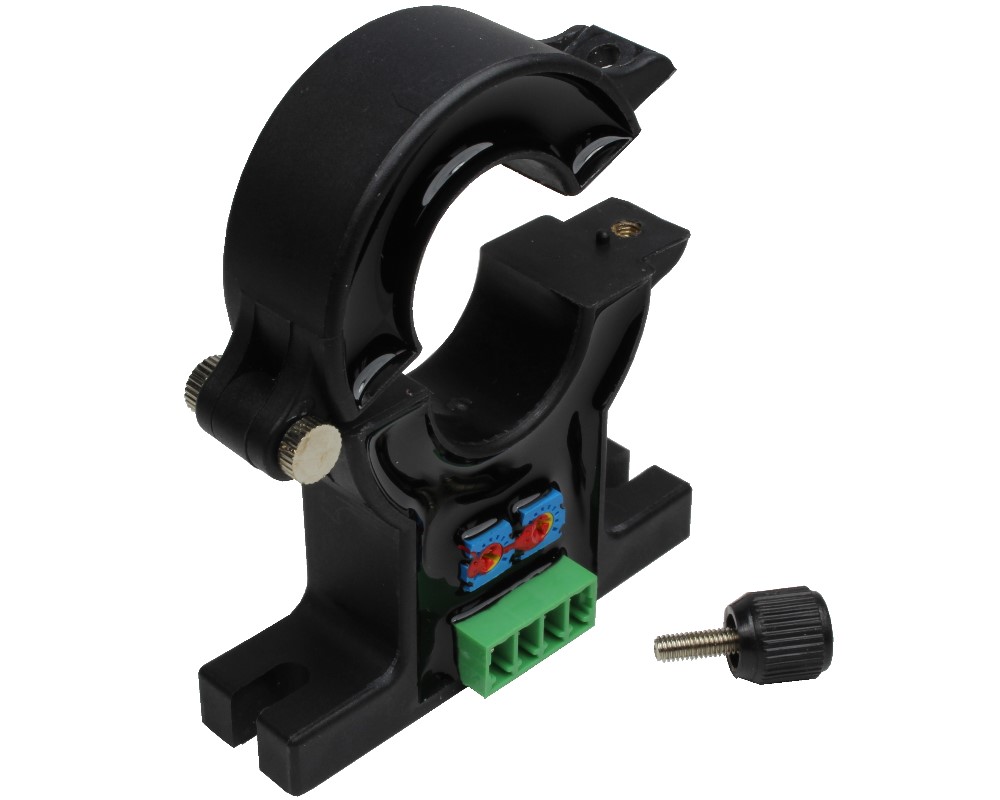

This Hall Effect current sensor is based on open loop principle and designed with a split core and a high galvanic isolation between primary and secondary circuits. It can be used for measurement of DC current etc. The output of the transducer reflects the real wave of the current carrying conductor.

The sensor's standard cable length is 1 meter.

If the sensors offered don't have the input current or the cable length which you require, contact us via our Contact Form.

Characteristics

  •  Excellent accuracy
  • Very good linearity
  • Light in weight
  • Less power consumption
  • Window structure
  • Electrically isolating the output of the transducer from the current carrying conductor
  • No insertion loss
  • Current overload capability

Applications

  • Photovoltaic equipment
  • Frequency conversion timing equipment
  • Various power supply
  • Uninterruptible power supplies (UPS)
  • Electric welding machines
  • Numerical controlled machine tools
  • Electrolyzing and electroplating equipments
  • Electric powered locomotive
  • Microcomputer monitoring
  • Electric power network monitoring



Information about product safety:

Manufacturer/ EU Responsible Person:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100

Technical Properties
more
Close menu
Nominal Input Current: 0-25A, 0-30A, 0-40A, 0-50A, 0-100A, 0-200A, 0-300A, 0-400A, 0-500A, 0-600A
Sensor Type: Open-Loop
Power Supply: +12 V DC
Output Signal: 0-4 V DC
Current Type: DC
Window Type: Round
Window Size (mm): Ø 21
Direction: bidirectional
Accuracy: 1%
Linearity: 1%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: DC ~ 20kHz
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
